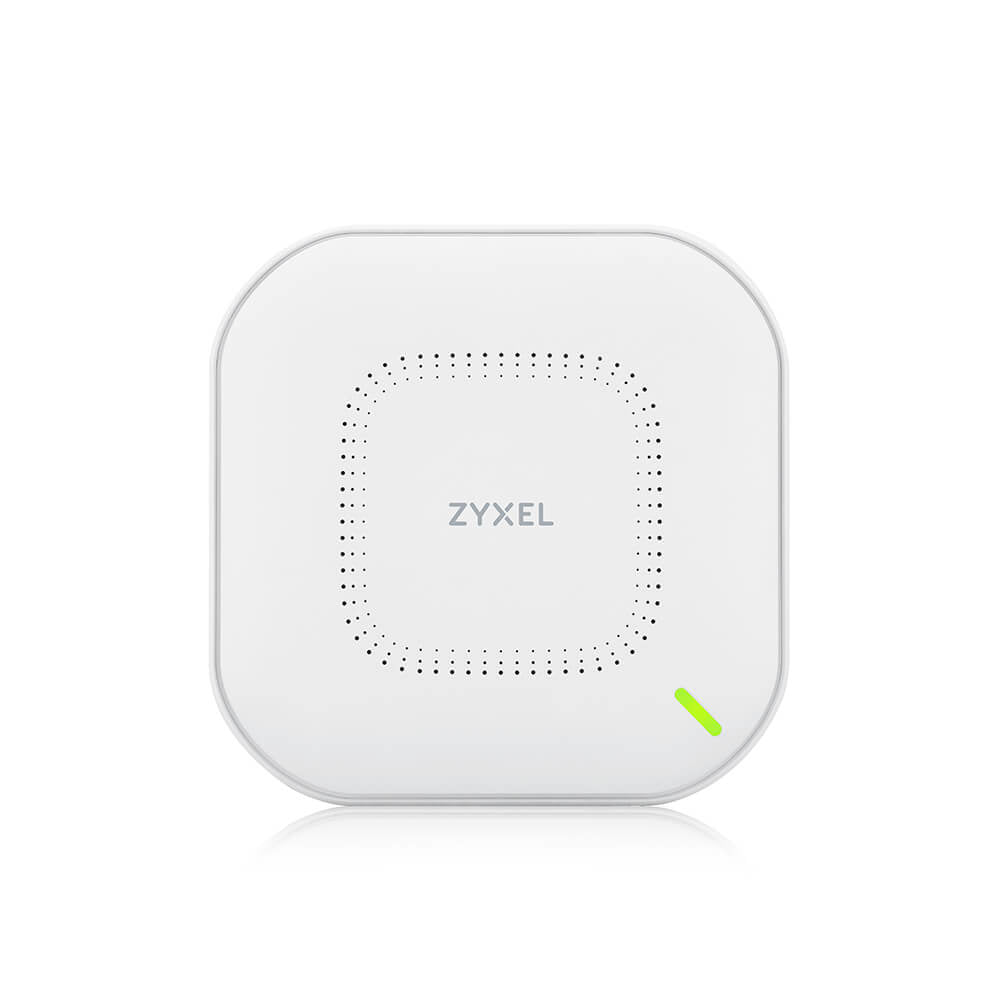

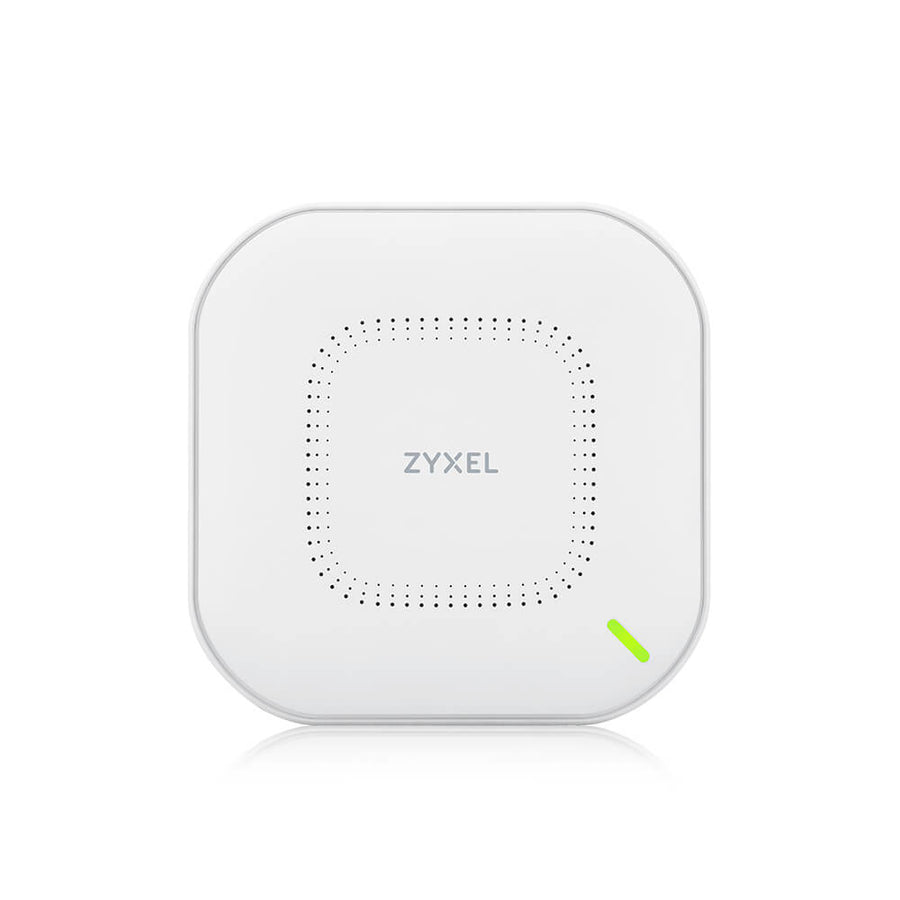

Zyxel WAX610D-EU0101F wireless access point 2400 Mbit/s White Power over Ethernet (PoE)
Zyxel WAX610D-EU0101F wireless access point 2400 Mbit/s White Power over Ethernet (PoE)

Zyxel WAX610D-EU0101F wireless access point 2400 Mbit/s White Power over Ethernet (PoE)

BrandZyxel
SKU / Part numberWAX610D-EU0101F
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications

WAX610D, Single Pack 802.11ax 2x2, Dual Optimized Antenna, exclude Power Adaptor-1 year NCC Pro Pack license bundled, Multigig Port, EU and UK, Unified AP, ROHS, WIFI 6

True WiFi 6 experience for all

The WAX610D is designed to deliver the true WiFi 6 experience to users for various types of applications. Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the WAX610D can provide fabulous efficiency for your wireless networking.

An access point that fits your need


We understand that mounting an access point to the ceiling isn't always possible due to the challenging environments like warehouses, historical buildings or stylish hotels where the aesthetics of the building are a priority. The WAX610D is equipped with a dual-optimized antenna that is selectable, allowing the access point to be mounted on the wall or on the ceiling without compromising on performance and coverage.

Hassle-free upgrade

To meet the growing demands for WiFi connectivity, the WAX610D enhances the network capacity with 2.90 Gbps WiFi speed and 2.5 Gbps multi-gigabit Ethernet port, which allows multi-gigabit speed run on the existing infrastructure without the need of re-cabling. The WAX610D enables organizations such as schools, hotels, and retail stores to upgrade to the latest WiFi 6 technology easily without breaking the bank.

Manage it your way!

The WAX610D comes with the support of NebulaFlex Pro, which offers the full flexibility for users to easily switch between cloud-managed, controller-managed, and standalone modes. You can choose the appropriate managed-mode best suited for your needs.

Specifications

Data transmission
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 2400 Mbit/s
Performance
2.4 GHz Yes
5 GHz Yes
VLAN support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 2400 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Network
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support Yes
Features
2.4 GHz Yes
5 GHz Yes
VLAN support Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate 2400 Mbit/s
MIMO type Multi User MIMO
MIMO Yes
Maximum data transfer rate (2.4 GHz) 575 Mbit/s
Maximum data transfer rate (5 GHz) 2400 Mbit/s
Security
Security algorithms EAP, WEP, WPA, WPA2
MAC address filtering Yes
Remote Authentication Dial-In User Service (RADIUS) Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Power
Power over Ethernet (PoE) Yes
AC input voltage 12 V
Design
Placement Wall
Product colour White
Antenna
Antenna type Internal
Technical details
Harmonized System (HS) code 85176990
Weight & dimensions
Width 229 mm
Depth 216 mm
Weight 780 g
Height 64 mm
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Operating relative humidity (H-H) 10 - 95%
Operating temperature (T-T) 0 - 50 �C
Storage temperature (T-T) -30 - 70 �C
Storage relative humidity (H-H) 10 - 90%
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
Zyxel WAX610D-EU0101F wireless access point 2400 Mbit/s White Power over Ethernet (PoE)

Zyxel WAX610D-EU0101F wireless access point 2400 Mbit/s White Power over Ethernet (PoE)

£277.49
