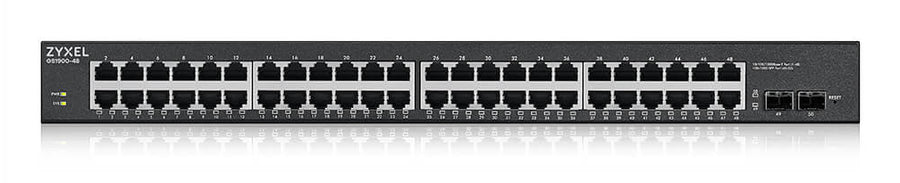

Zyxel GS1900-48HPv2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Zyxel GS1900-48HPv2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Zyxel GS1900-48HPv2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

BrandZyxel
SKU / Part numberGS190048HPV2-EU0101F
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications

24x10/100/1000BASE-T, 24x10/100/1000BASE-T PoE, 2xSFP 100/1000 Mbps, 100Gbps

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance-built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it's a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Specifications

Management features
Switch type Managed
Quality of Service (QoS) support Yes
MIB support RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Switch layer L2
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Copper ethernet cabling technology 1000BASE-T
Network
Copper ethernet cabling technology 1000BASE-T
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
VLAN support Yes
Data transmission
MAC address table 8000 entries
Switching capacity 100 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Design
Product colour Black
LED indicators Yes
Rack mounting Yes
Certification RoHS, CE
Performance
Noise level 36.9 dB
Harmonized System (HS) code 85176990
Power
Power consumption (max) 220.5 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power connector DC-in jack
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 170 W
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Storage temperature (T-T) -40 - 70 �C
Operating temperature (T-T) 0 - 50 �C
Operating relative humidity (H-H) 10 - 95%
Virtual LAN features
VLAN support Yes
Weight & dimensions
Width 441 mm
Depth 270 mm
Height 44 mm
Weight 3.55 kg
Technical details
Product colour Black
Noise level 36.9 dB
Rack mounting Yes
Certificates
Certification RoHS, CE
Indication
LED indicators Yes
Logistics data
Harmonized System (HS) code 85176990
Zyxel GS1900-48HPv2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
