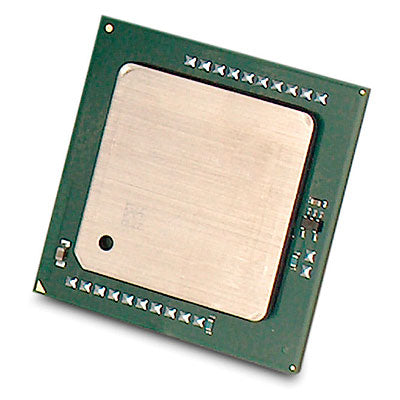

HP Intel Xeon E5506 processor 2.13 GHz 4 MB L3
Product overview & specifications
Intel Xeon E5506, 4M Cache, 2.13 GHz, 4.80 GT/s Intel QPI
Options, accessories, services and support for all your HP and Compaq products.
| Processor | |
|---|---|
| Processor base frequency | 2.13 GHz |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Thermal Design Power (TDP) | 80 W |
| Processor cache | 4 MB |
| Processor model | E5506 |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.750 - 1.350 V |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 45 nm |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800 MHz |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Memory channels | Triple-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.750 - 1.350 V |
| Technical details | |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| CPU configuration (max) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Thermal Design Power (TDP) | 80 W |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | L3 |
| Features | |
| Thermal Design Power (TDP) | 80 W |
| Processor package size | 42.5 mm |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 2 |
| Market segment | Server |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Operational conditions | |
| Tcase | 76 °C |
| Weight & dimensions | |
| Processor package size | 42.5 mm |
| Other features | |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| CPU configuration (max) | 2 |
HP Intel Xeon E5506 processor 2.13 GHz 4 MB L3
£655.50
