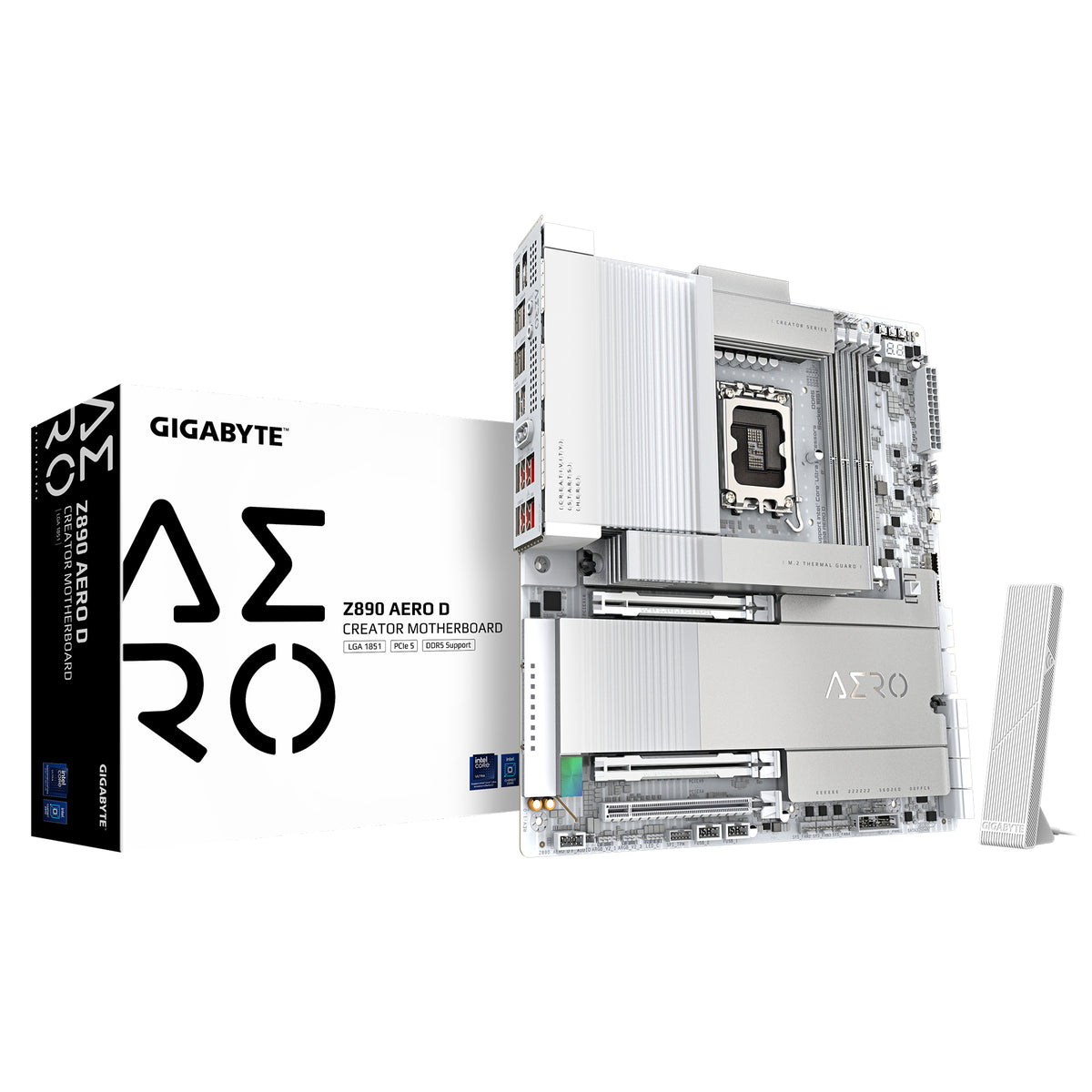

GIGABYTE Z890 AERO D Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 9500MHz DDR5 (OC), PCIe 5.0 M.2, Wi-Fi 7, Thunderbolt 5
Product overview & specifications
Z890 AERO D Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 9500MHz DDR5 (OC), PCIe 5.0 M.2, Wi-Fi 7, Thunderbolt 5
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Noise, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 2.0 channels |
| Performance | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Noise, Temperature, Voltage |
| Audio output channels | 2.0 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7800,7950,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9500 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 12 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Thunderbolt ports quantity | 2 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Marvell AQtion AQC113C |
| Ethernet interface type | 10 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| PC health monitoring | Fan, Noise, Temperature, Voltage |
| Audio output channels | 2.0 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Audio chip | ESS ES9260 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 400 mm |
| Package depth | 335 mm |
| Package height | 430 mm |
| Package weight | 4 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 400 mm |
| Package depth | 335 mm |
| Package height | 430 mm |
| Package weight | 4 kg |
| Weight | 3.42 kg |
| Width | 305 mm |
| Depth | 285 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 400 mm |
| Package depth | 335 mm |
| Package height | 430 mm |
| Package weight | 4 kg |
| Weight | 3.42 kg |
