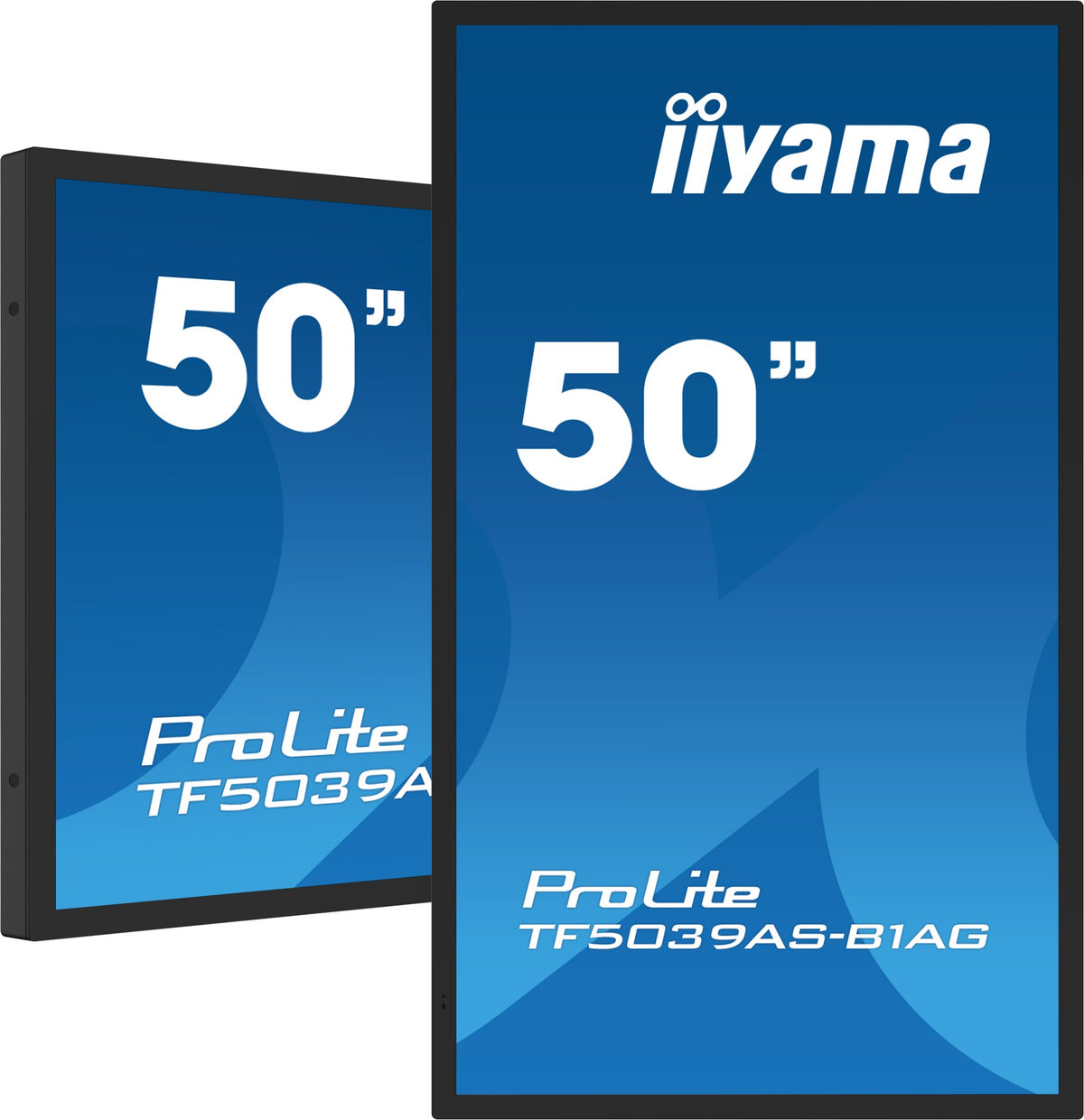

iiyama TF5039AS-B1AG computer monitor 125.7 cm (49.5") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Black
Product overview & specifications
50" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5039AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage2 CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5039AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| Display surface | Matt |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.285 x 0.285 mm |
| Horizontal scan range | 28 - 160 kHz |
| Viewable size, horizontal | 109.6 cm |
| Viewable size, vertical | 61.6 cm |
| Display resolution | 3840 x 2160 pixels |
| Response time | 9.5 ms |
| Display diagonal | 125.7 cm (49.5") |
| Contrast ratio (typical) | 5000:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| Panel type | VA |
| Display diagonal (metric) | 125.7 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Haze rate | 25% |
| LED backlight | Yes |
| Display brightness | 435 cd/m² |
| Positional accuracy | 2.5 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Mean time between failures (MTBF) | 50000 h |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Operating system installed | Android 11 |
| Operating system version | 11 |
| Palm rejection | Yes |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 137 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 68.2 kWh |
| Design | |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 3 mm |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| DVI port | No |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| HDCP version | 2.2 |
| USB 2.0 Type-A ports quantity | 2 |
| USB Touch port | Yes |
| RS-232C | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Packaging content | IR extender |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 435 cd/m² |
| Built-in processor | Yes |
| Power supply type | Internal |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| Weight (with stand) | 28.6 kg |
| Touch method | stylus, finger, glove (latex) |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| RS-232C | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand) | 1149.4 mm |
| Depth (with stand) | 64 mm |
| Height (with stand) | 670 mm |
| Bezel width (side) | 2.4 cm |
| Bezel width (top) | 2.4 cm |
| Bezel width (bottom) | 2.4 cm |
| Weight (with stand) | 28.6 kg |
| Package width | 1297 mm |
| Package depth | 174 mm |
| Package height | 798 mm |
| Package weight | 35.9 kg |
| Width | 1149.4 mm |
| Weight | 28.6 kg |
| Height | 670 mm |
| Depth | 64 mm |
| Packaging data | |
| Package width | 1297 mm |
| Package depth | 174 mm |
| Package height | 798 mm |
| Package weight | 35.9 kg |
| USB cable length | 1.8 m |
| Power cable length | 1.8 m |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.8 m |
| Remote control batteries included | Yes |
| Package volume | 35900 cm³ |
| Packaging content | |
| Power cable length | 1.8 m |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.8 m |
| Batteries included | Yes |
| Remote control batteries included | Yes |
| USB cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Thin Client | |
| Operating system installed | Android 11 |
| Processor architecture | ARM Cortex-A73 |
| Other features | |
| Packaging content | IR extender |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 435 cd/m² |
| Built-in processor | Yes |
| Active display area (W x H) | 1095.8 x 616.4 mm |
| USB ports quantity | 2 |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
| Touch method | stylus, finger, glove (latex) |
| Package volume | 35900 cm³ |
| International Protection (IP) code | IP65 |
| Width | 1149.4 mm |
| Weight | 28.6 kg |
| Height | 670 mm |
| Depth | 64 mm |
| Positional accuracy | 2.5 mm |
| Compliance certificates | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Control panel | Power |
| Remote control included | Yes |
| Quick start guide | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 40 |
| Front bezel colour | Black |
| Certificates | |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
