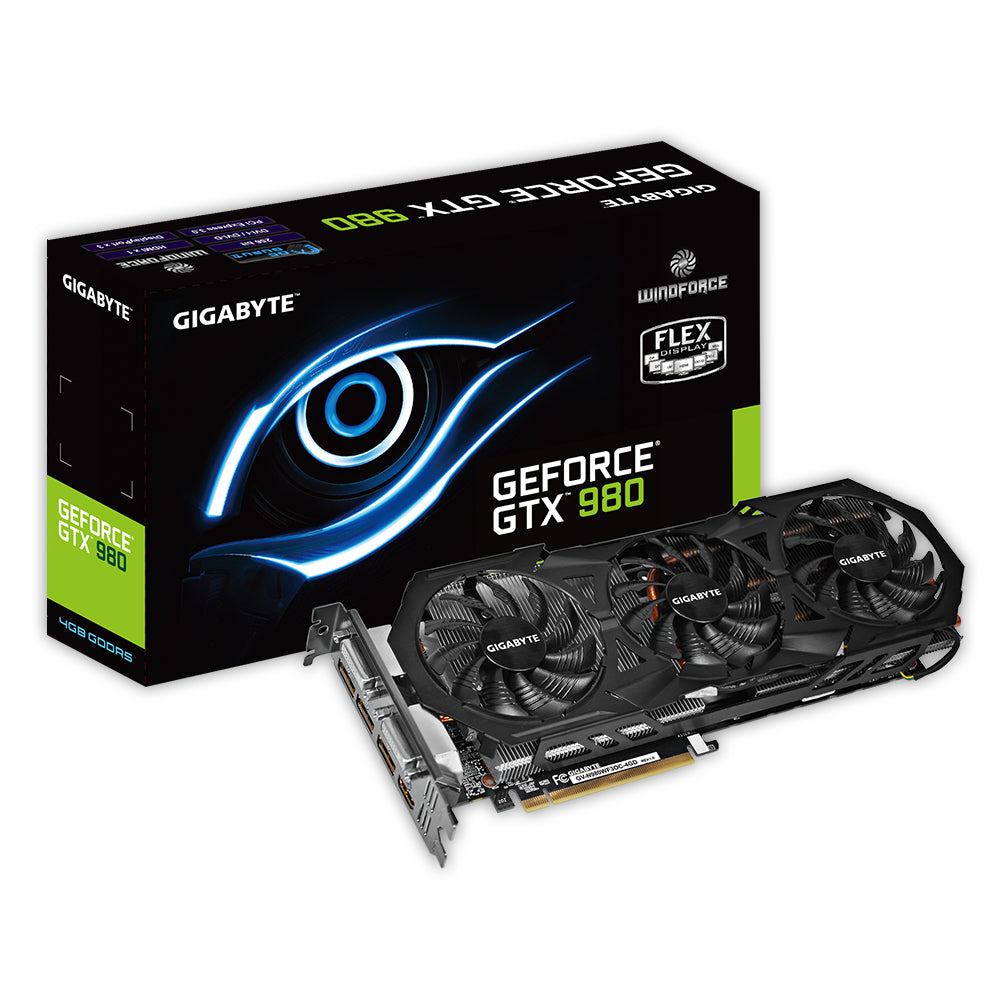

GIGABYTE GV-N980WF3OC-4GD NVIDIA GeForce GTX 980 4 GB GDDR5
Product overview & specifications
NVIDIA GeForce GTX 980 - 4GB GDDR5, 1178MHz / 1279MHz, Dual-link DVI-I, DVI-D, HDMI, 3xDisplayPort
WINDFORCE 3X cooling system
WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level.
Flex Display technology
GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.
Ultra Durable VGA™
Lower GPU Temperature
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
Better Overclocking Capability
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
Decrease Power Switching Loss
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
WINDFORCE 3X cooling system is equipped with high performance pure cooper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level.
Flex Display technology
GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.
Ultra Durable VGA™
Lower GPU Temperature
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
Better Overclocking Capability
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
Decrease Power Switching Loss
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
| Processor | |
|---|---|
| FireStream | No |
| Graphics processor family | NVIDIA |
| Processor frequency | 1178 MHz |
| Processor boost clock speed | 1279 MHz |
| Maximum displays per videocard | 4 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum analog resolution | 2048 x 1536 pixels |
| CUDA cores | 2048 |
| CUDA | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics processor | GeForce GTX 980 |
| Memory | |
| Discrete graphics card memory | 4 GB |
| Data transfer rate | 7 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR5 |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 3 |
| Interface type | PCI Express 3.0 |
| Video | |
| DirectX version | 12.0 |
| OpenGL version | 4.4 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| CUDA cores | 2048 |
| NVIDIA 3D Vision | Yes |
| PhysX | Yes |
| Performance | |
| NVIDIA G-SYNC | Yes |
| NVIDIA GameWorks VR | Yes |
| DirectX version | 12.0 |
| OpenGL version | 4.4 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| TV tuner integrated | No |
| PhysX | Yes |
| Design | |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Power | |
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 600 W |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| TV tuner integrated | No |
| System requirements | |
| Minimum system power supply | 600 W |
| Weight & dimensions | |
| Height | 129 mm |
| Depth | 36 mm |
| Length | 312 mm |
