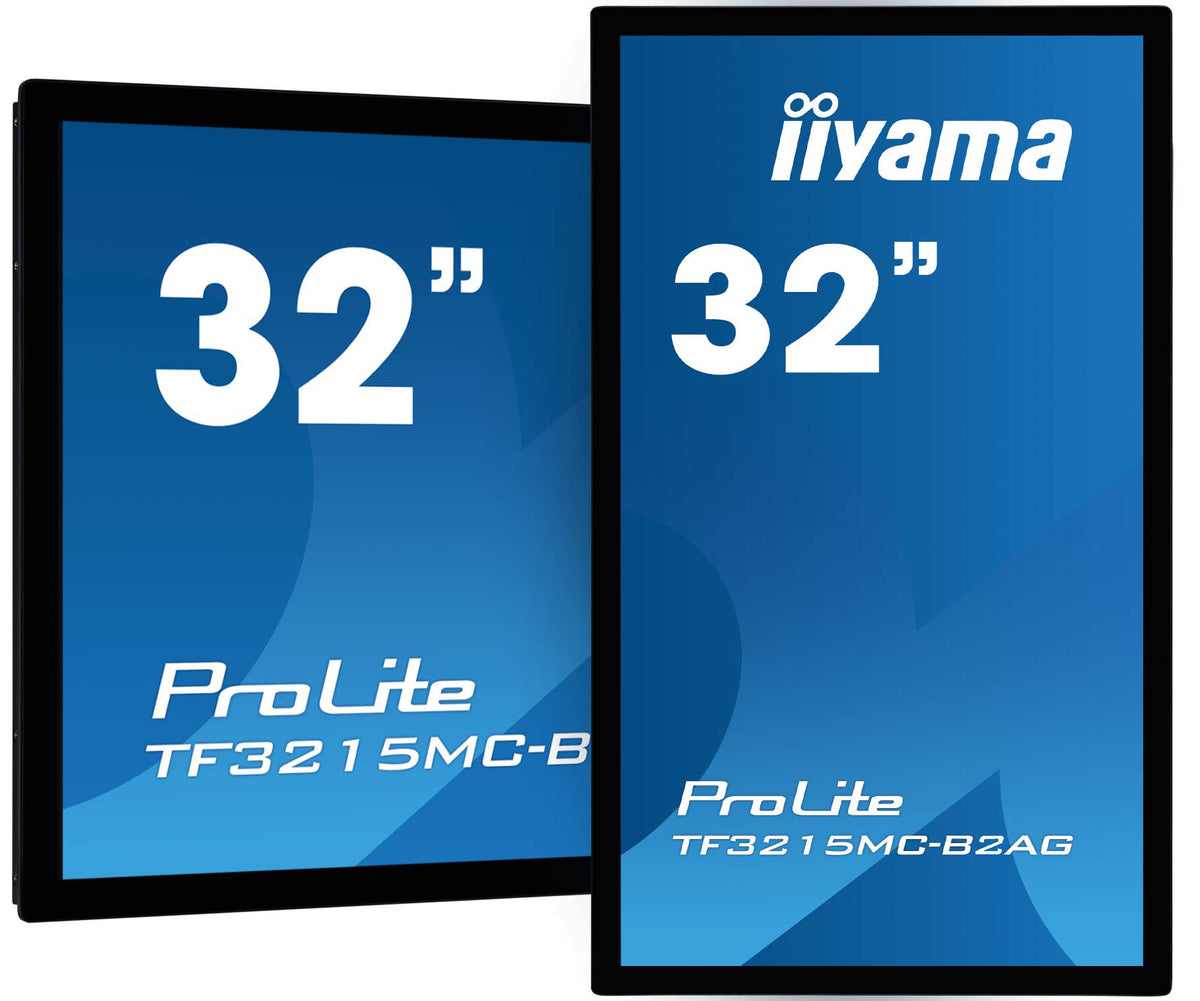

iiyama ProLite TF3215MC-B2AG computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black
Product overview & specifications
Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration
The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Digital horizontal frequency | 30 - 68 kHz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 80 cm (31.5") |
| Contrast ratio (typical) | 3000:1 |
| Surface hardness | 6H |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
| Panel type | VA |
| Colour depth | 8 bit |
| Display diagonal (metric) | 80 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 425 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Housing material | Metal |
| Glass thickness | 6 mm |
| IK code | IK07 |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| Mean time between failures (MTBF) | 50000 h |
| HDMI | Yes |
| Product colour | Black |
| User controls | contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass) |
| Products per pallet | 21 pc(s) |
| Front bezel colour | Black |
| Pallet net width | 100 cm |
| Pallet net height | 2.04 m |
| Pallet net length | 120 cm |
| Compliance certificates | REACH |
| Packaging content | Touch Panel Driver Disk (CD-ROM) |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 425 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Weight (with stand) | 10 kg |
| Touch method | finger, glove (latex), capacitive stylus |
| Surface hardness | 6H |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Cable management | Yes |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.7 W |
| Power consumption (typical) | 32 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 27.4 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| Width (with stand) | 743 mm |
| Depth (with stand) | 61 mm |
| Height (with stand) | 437 mm |
| Weight (with stand) | 10 kg |
| Weight (without stand) | 10 kg |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Width | 743 mm |
| Weight | 10 kg |
| Height | 437 mm |
| Depth | 61 mm |
| Packaging data | |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Other features | |
| Packaging content | Touch Panel Driver Disk (CD-ROM) |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 425 cd/m² |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Mean time between failures (MTBF) | 50000 h |
| User controls | contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass) |
| Touch method | finger, glove (latex), capacitive stylus |
| International Protection (IP) code | IP65 |
| Width | 743 mm |
| Weight | 10 kg |
| Height | 437 mm |
| Depth | 61 mm |
| IK code | IK07 |
| Positional accuracy | 2 mm |
| Compliance certificates | REACH |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 6H |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
| Products per pallet | 21 pc(s) |
| Front bezel colour | Black |
| Logistics data | |
| Products per pallet | 21 pc(s) |
| Pallet net width | 100 cm |
| Pallet net height | 2.04 m |
| Pallet net length | 120 cm |
