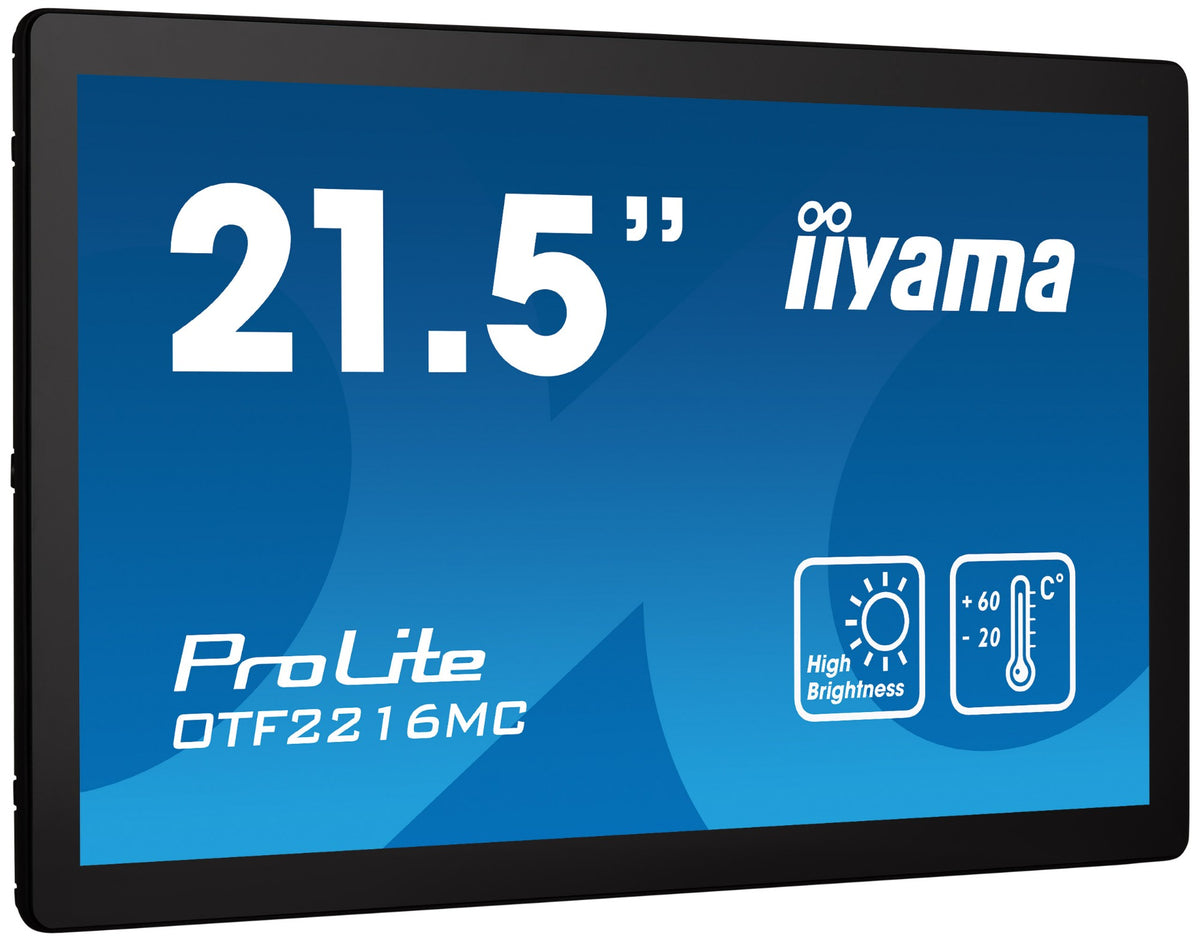

iiyama OTF2216MC-B1 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Black
Product overview & specifications
21.5" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications
Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m2, the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20 ̊C up to +60 ̊C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 1100 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Viewable size, horizontal | 47.7 cm |
| Viewable size, vertical | 26.9 cm |
| Digital horizontal frequency | 31.8 - 82 kHz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 25 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 5000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 1100 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Colour depth | 8 bit |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 935 cd/m² |
| Performance | |
| Mean time between failures (MTBF) | 60000 h |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Design | |
| Market positioning | Office |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 3.15 mm |
| Mean time between failures (MTBF) | 60000 h |
| Ports & interfaces | |
| Headphone out | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Height (without stand) | 315 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 520 mm |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 60000 h |
| HDMI | Yes |
| Product colour | Black |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Packaging content | AC adapter |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 935 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 477 x 269 mm |
| Weight (with stand) | 4.6 kg |
| Touch method | finger, glove (latex) |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Cable management | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 0.6 W |
| Power consumption (typical) | 43 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 15.5 kWh |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Height (without stand) | 315 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 520 mm |
| Width (with stand) | 520 mm |
| Depth (with stand) | 42.5 mm |
| Height (with stand) | 315 mm |
| Weight (with stand) | 4.6 kg |
| Weight (without stand) | 4.6 kg |
| Package width | 608 mm |
| Package depth | 150 mm |
| Package height | 400 mm |
| Package weight | 4.5 kg |
| Width | 520 mm |
| Weight | 4.6 kg |
| Height | 315 mm |
| Depth | 42.5 mm |
| Packaging data | |
| Package width | 608 mm |
| Package depth | 150 mm |
| Package height | 400 mm |
| Package weight | 4.5 kg |
| AC adapter included | Yes |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| AC adapter included | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 935 cd/m² |
| Active display area (W x H) | 477 x 269 mm |
| AC adapter included | Yes |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 60000 h |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Ethernet LAN (RJ-45) ports | 1 |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor) |
| Touch method | finger, glove (latex) |
| International Protection (IP) code | IP65 |
| Width | 520 mm |
| Weight | 4.6 kg |
| Height | 315 mm |
| Depth | 42.5 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Control panel | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| Height (without stand) | 315 mm |
| Depth (without stand) | 42.5 mm |
| Width (without stand) | 520 mm |
| Remote control included | Yes |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Ethernet LAN | Yes |
| Display brightness (peak) | 1100 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
