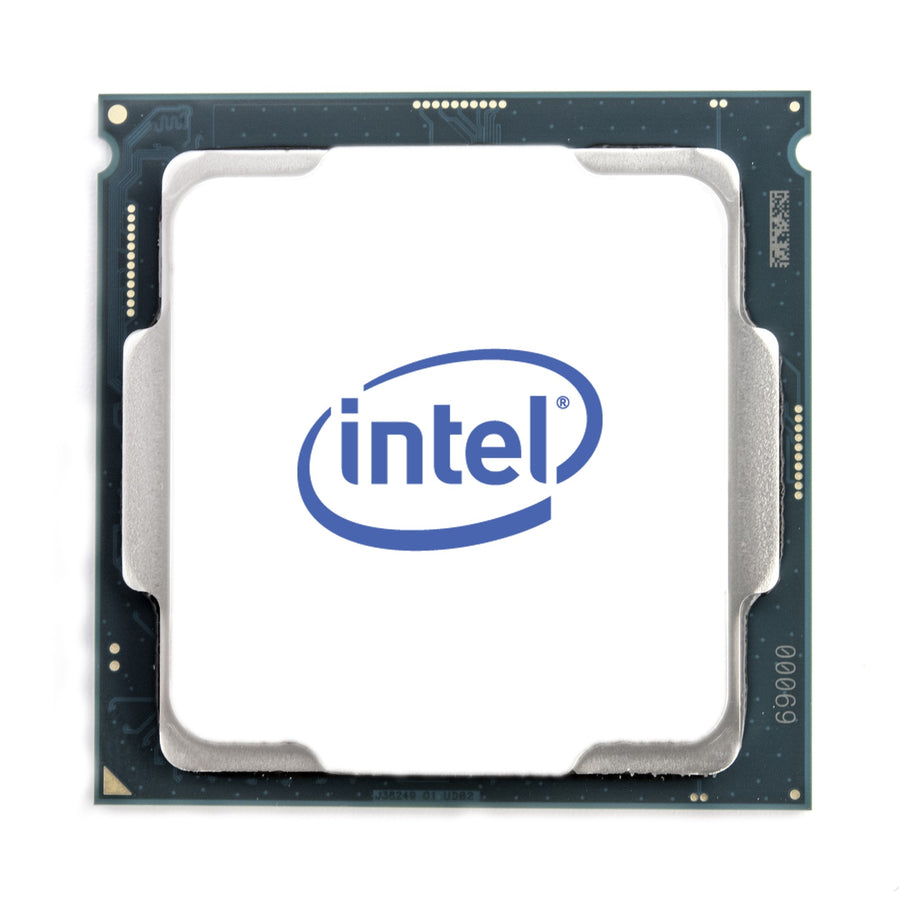

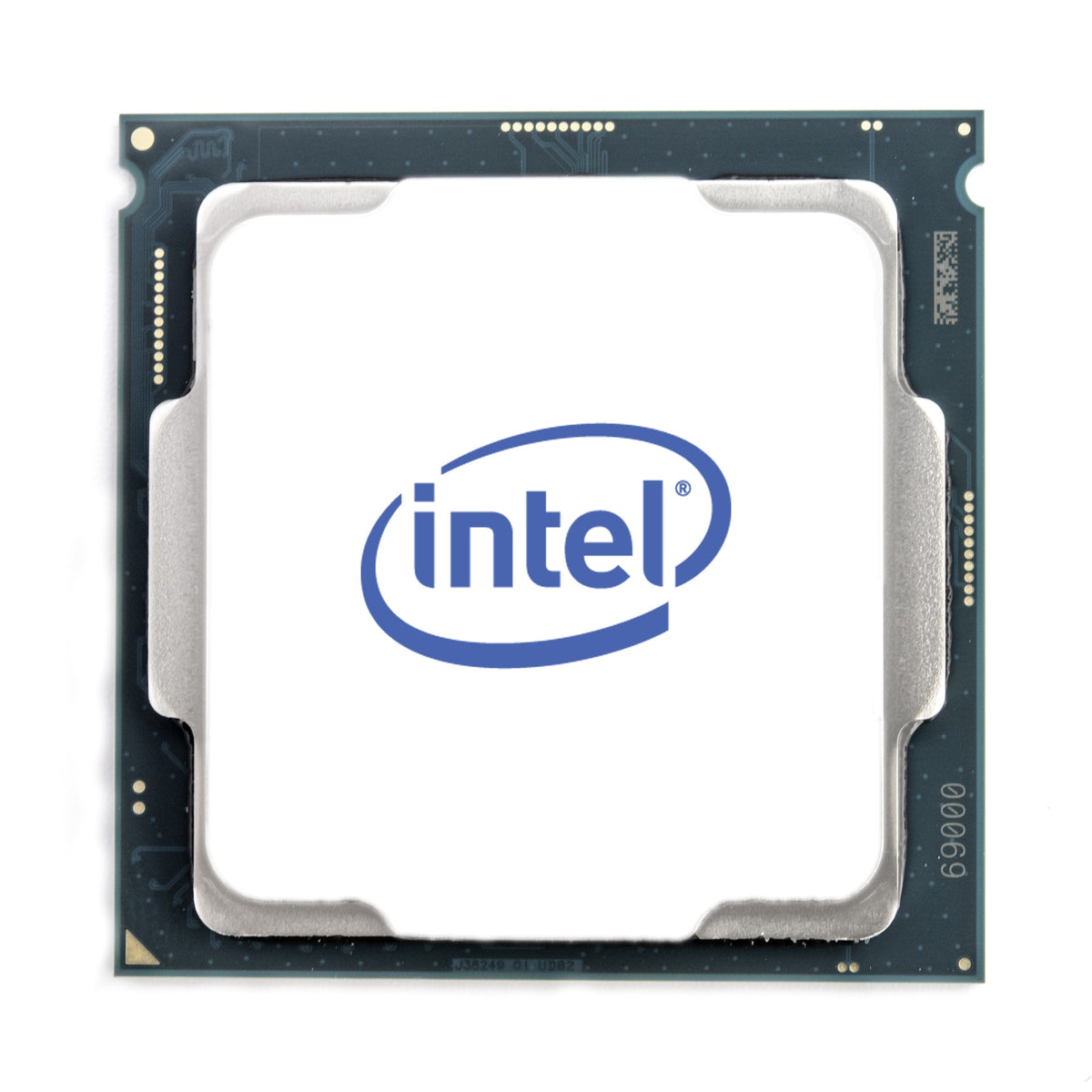

Lenovo Intel Xeon Silver 4509Y processor 2.6 GHz 22.5 MB
Product overview & specifications
ThinkSystem SR650 V3 Intel Xeon Silver 4509Y 8C 125W 2.6GHz Processor Option Kit w/o Fan
The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
| Processor | |
|---|---|
| Processor generation | Intel Xeon Scalable 5th Gen |
| Processor base frequency | 2.6 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Sapphire Rapids |
| Thermal Design Power (TDP) | 125 W |
| Processor cache | 22.5 MB |
| Processor model | 4509Y |
| Processor threads | 16 |
| Processor boost frequency | 4.1 GHz |
| Processor family | Intel® Xeon® |
| Processor cores | 8 |
| Processor socket | LGA 4677 (Socket E) |
| Intel® UPI Speed | 16 GT/s |
| Memory | |
| Maximum internal memory supported by processor | 4 TB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory channels | Octa-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| Power | |
| Thermal Design Power (TDP) | 125 W |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 5.0 |
| Supported instruction sets | AMX, AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 2S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 125 W |
| Status | Launched |
| Market segment | Server |
| Launch date | Q4'23 |
| Intel Virtualization Technology (VT-x) | Yes |
| Number of UPI links | 2 |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Package carrier | E1B |
| Features | |
| Maximum number of PCI Express lanes | 80 |
| Thermal Design Power (TDP) | 125 W |
| Processor package size | 77.5 x 56.5 mm |
| Execute Disable Bit | Yes |
| PCI Express slots version | 5.0 |
| Supported instruction sets | AMX, AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 2S |
| Embedded options available | Yes |
| Market segment | Server |
| Use conditions | Server/Enterprise |
| Processor special features | |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Boot Guard | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® QuickAssist Software Acceleration | Yes |
| Intel® Data Streaming Accelerator (DSA) | 1 default devices |
| Intel® Advanced Matrix Extensions (AMX) | Yes |
| Operational conditions | |
| Tcase | 84 °C |
| DTS Max | 100 °C |
| Weight & dimensions | |
| Processor package size | 77.5 x 56.5 mm |
| Other features | |
| Maximum internal memory | 4 TB |
