Lindy 150m USB 2.0 Cat.6 Extender
Product overview & specifications
2 x RJ-45, USB-B/USB/A, DC, 150m max, Cat6, 2 x 0.084kg, Black

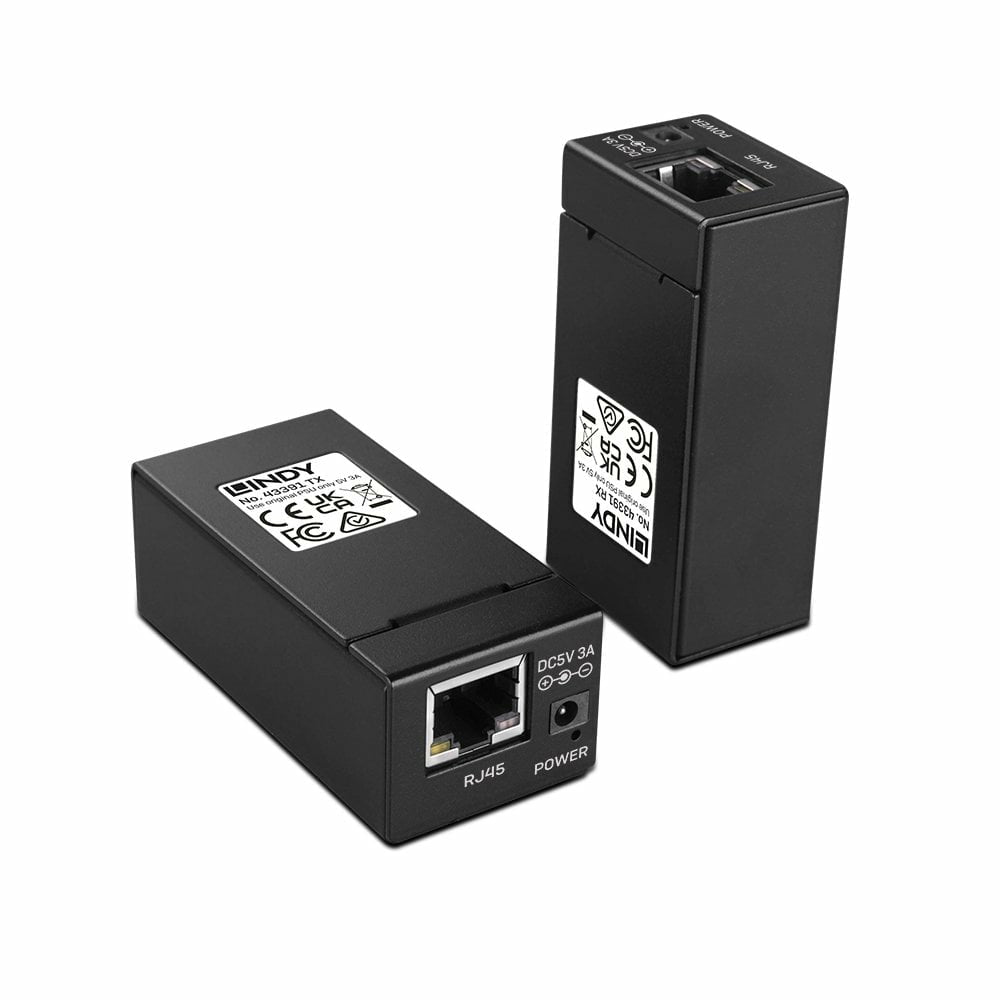

The Lindy 150m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 150m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.
This USB 2.0 Extender is suitable for many long-distance applications like remote printing, camera surveillance or controlling machines. This USB 2.0 Extender is supplied with a power adapter for the receiver unit to ensure secure and uninterrupted power. The robust metal housing makes it ideal for rugged environments.
This USB 2.0 Extender is suitable for many long-distance applications like remote printing, camera surveillance or controlling machines. This USB 2.0 Extender is supplied with a power adapter for the receiver unit to ensure secure and uninterrupted power. The robust metal housing makes it ideal for rugged environments.
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| LED indicators | Activity, Power |
| Housing material | Metal |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Product colour | Black |
| Plug and Play | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Ports & interfaces | |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Weight & dimensions | |
| Package width | 220 mm |
| Package depth | 194 mm |
| Package height | 60 mm |
| Package weight | 600 g |
| Width | 67 mm |
| Depth | 32 mm |
| Height | 25 mm |
| Transmitter weight | 84 g |
| Receiver weight | 84 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Manual | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 5 V |
| Output current | 3 A |
