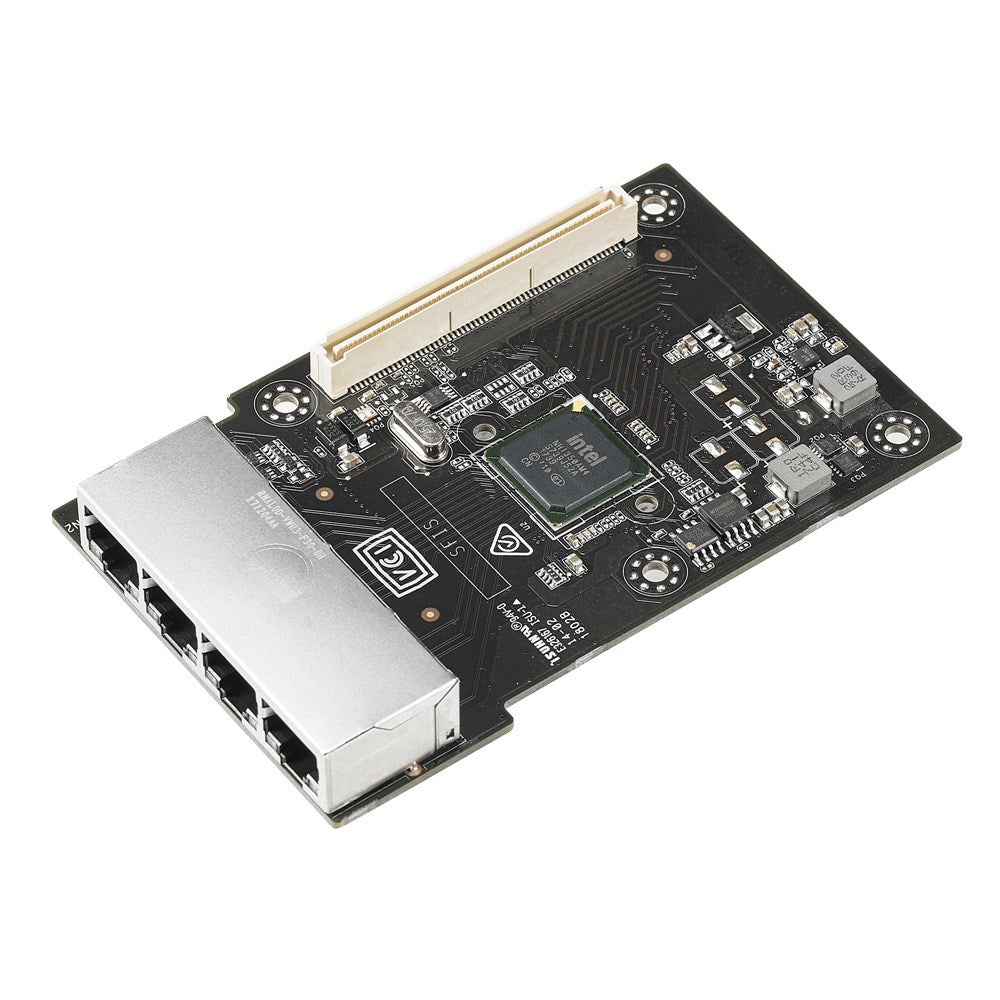

ASUS MCI-1G/350-4T Internal Ethernet 1000 Mbit/s
Product overview & specifications
MCI-1G/350-4T, Intel I350-AM2, 4x RJ-45, 1000Base-T, PCIe 2.0 x4
Energy Efficient Ethernet (EEE) support
MCI-1G/350-4T is designed with enhanced performance features in performance and new power management technology such as Energy Efficient Ethernet (EEE).
iSCSI performance acceleration
MCI-1G/350-4T is built on the Intel® I350 controller and supports single root I/O virtualization (SR-IOV), iSCSI, and TCP segment offload (TSO). Its PCIe2.0 x4 host interface supports 5GT/s per lane and baseboard management controller (BMC) communication is supported on top of the Network Controller-Sideband Interface (NC-SI) via an OCP form factor.
Flexible I/O virtualization
By taking advantage of SR-IOV technology, MCI-1G/350-4T enables Flexible Port Partitioning (FPP), which an administrator can use FPP to control the partitioning of the bandwidth across multiple virtual functions. This enables the assignment of up to eight Linux host processes or virtual machines per port to allow for virtual functions.
MCI-1G/350-4T is designed with enhanced performance features in performance and new power management technology such as Energy Efficient Ethernet (EEE).
iSCSI performance acceleration
MCI-1G/350-4T is built on the Intel® I350 controller and supports single root I/O virtualization (SR-IOV), iSCSI, and TCP segment offload (TSO). Its PCIe2.0 x4 host interface supports 5GT/s per lane and baseboard management controller (BMC) communication is supported on top of the Network Controller-Sideband Interface (NC-SI) via an OCP form factor.
Flexible I/O virtualization
By taking advantage of SR-IOV technology, MCI-1G/350-4T enables Flexible Port Partitioning (FPP), which an administrator can use FPP to control the partitioning of the bandwidth across multiple virtual functions. This enables the assignment of up to eight Linux host processes or virtual machines per port to allow for virtual functions.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Jumbo frames | 9500 |
| iSCSI support | Yes |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| LAN controller | Intel® I350-AM2 |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Internal | Yes |
| Weight & dimensions | |
| Width | 68.1 mm |
| Height | 110 mm |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Jumbo frames | 9500 |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
