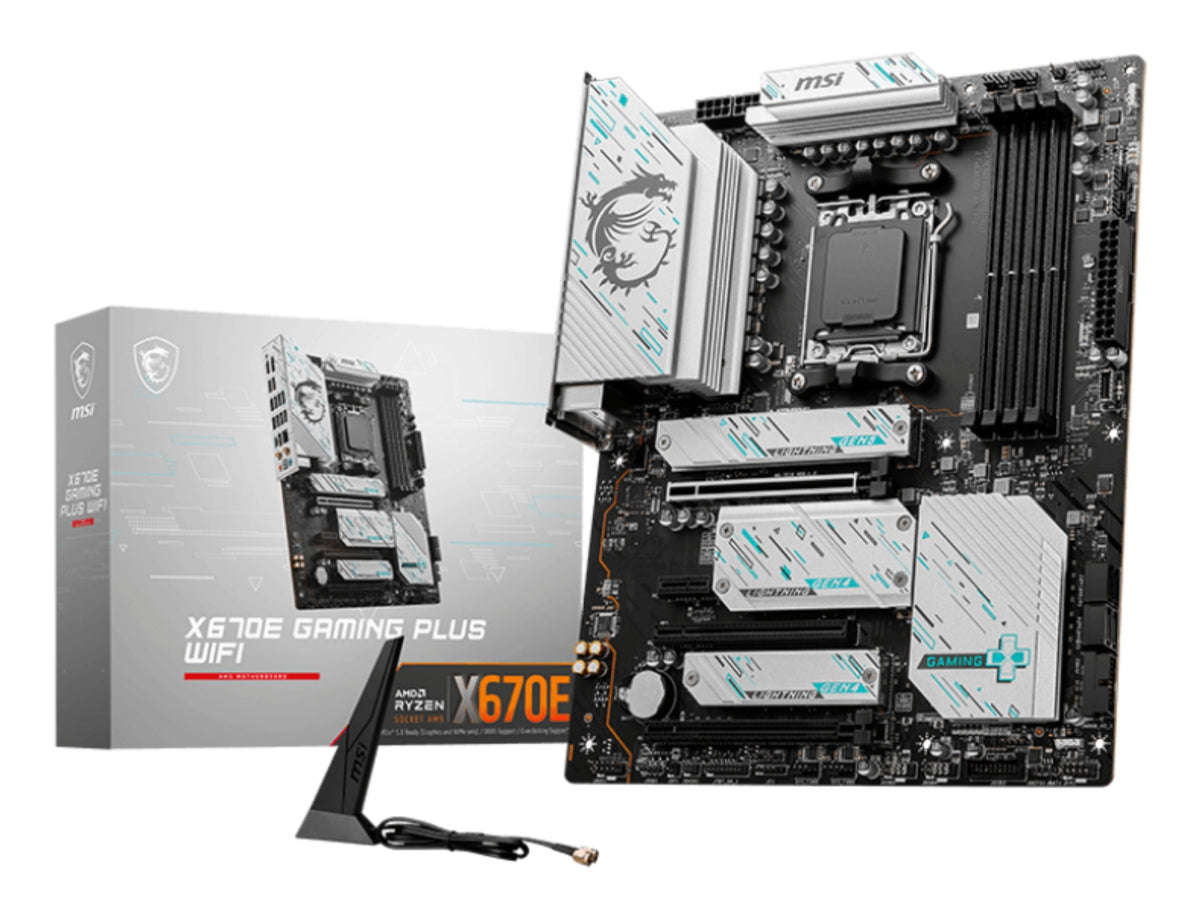

MSI X670E GAMING PLUS WIFI motherboard AMD X670 Socket AM5 ATX
Product overview & specifications
4x DDR5, 1x HDMI, 1x DisplayPort, 4x M.2, X670E, Wifi, AM5, ATX
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| mSATA ports quantity | 0 |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X670 |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X670 |
| RAID levels | 0, 1, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 0 |
| S/PDIF out port | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8125-BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X670 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Aluminium, Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Other features | |
| mSATA ports quantity | 0 |
