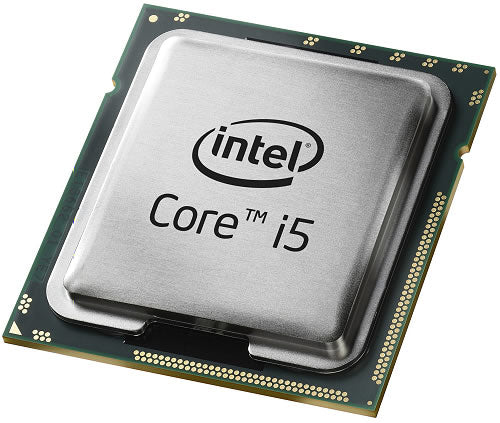

DELL i5-750 processor 2.66 GHz 8 MB Smart Cache
Product overview & specifications
i5-750 (8MB Cache, 2.66 GHz)
| Processor | |
|---|---|
| Processor generation | 5th gen Intel® Core™ i3 |
| Processor base frequency | 2.66 GHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Thermal Design Power (TDP) | 95 W |
| Processor cache | 8 MB |
| Processor model | i5-750 |
| Processor threads | 4 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Compatible chipsets | Intel® H55 Express, Intel® H57 Express, Intel® Q57 Express |
| VID Voltage Range | 0.65 - 1.4 V |
| Processor boost frequency | 3.2 GHz |
| Stepping | B1 |
| CPU multiplier (bus/core ratio) | 20 |
| Bus type | DMI |
| Component for | PC |
| Processor lithography | 45 nm |
| Processor family | Intel® Core™ i3 |
| Processor cores | 4 |
| Processor socket | LGA 1156 (Socket H) |
| Processor series | Intel Core i5-700 Desktop Series |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory channels | Dual-channel |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.65 - 1.4 V |
| Technical details | |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8 |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| Number of Graphics & IMC Die Transistors | 774 M |
| Supported instruction sets | SSE4.2 |
| Intel Enhanced Halt State | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Processor cache | 8192 KB |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 95 W |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Processor series | Intel Core i5-700 Desktop Series |
| Physical Address Extension (PAE) | 36 bit |
| Market segment | Desktop |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Features | |
| Maximum number of PCI Express lanes | 16 |
| Thermal Design Power (TDP) | 95 W |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8 |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| Number of Graphics & IMC Die Transistors | 774 M |
| Supported instruction sets | SSE4.2 |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Physical Address Extension (PAE) | 36 bit |
| Market segment | Desktop |
| Processor special features | |
| Intel 64 | Yes |
| Conflict-Free processor | No |
| Intel® Turbo Boost Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Operational conditions | |
| Tcase | 72.7 °C |
| Weight & dimensions | |
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| CPU configuration (max) | 1 |
