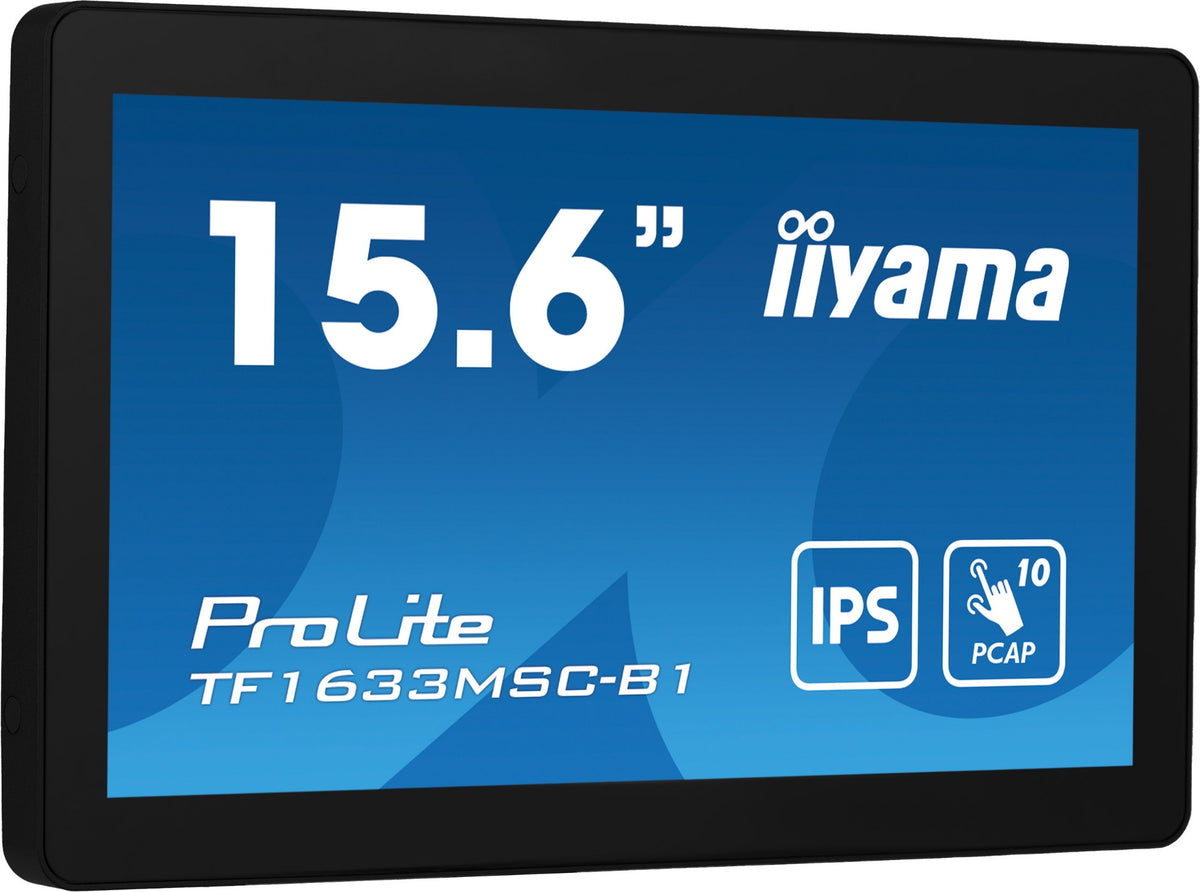

iiyama ProLite TF1633MSC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD Touchscreen Black
Product overview & specifications
15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology
The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 450 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| DDC/CI | Yes |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 39.6 cm (15.6") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 39.5 cm |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 385 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
| Market positioning | Home |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP54 |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 2.0 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| Number of downstream ports | 2 |
| Technical details | |
| Height (without stand) | 246.5 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 389 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| User controls | Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Packaging content | AC adapter |
| Brightness | 385 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Weight (with stand) | 2 kg |
| Touch method | stylus, finger, glove (latex) |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 12 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 12 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | C |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 7.7 kWh |
| Weight & dimensions | |
| Height (without stand) | 246.5 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 389 mm |
| Width (with stand) | 389 mm |
| Depth (with stand) | 45.5 mm |
| Height (with stand) | 246.5 mm |
| Weight (with stand) | 2 kg |
| Weight (without stand) | 2 kg |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 3.9 kg |
| Width | 389 mm |
| Weight | 2 kg |
| Height | 246.5 mm |
| Depth | 45.5 mm |
| Packaging data | |
| Package width | 475 mm |
| Package depth | 169 mm |
| Package height | 343 mm |
| Package weight | 3.9 kg |
| Package type | Box |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Power adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Power adapter included | Yes |
| AC adapter included | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter |
| Brightness | 385 cd/m² |
| Active display area (W x H) | 344.2 x 193.6 mm |
| USB ports quantity | 2 |
| AC adapter included | Yes |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
| User controls | Luminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP54 |
| Width | 389 mm |
| Weight | 2 kg |
| Height | 246.5 mm |
| Depth | 45.5 mm |
| Compliance certificates | CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Control panel | Power, Menu, Volume +, Volume -, Input |
| Height (without stand) | 246.5 mm |
| Depth (without stand) | 45.5 mm |
| Width (without stand) | 389 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Package type | Box |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA |
