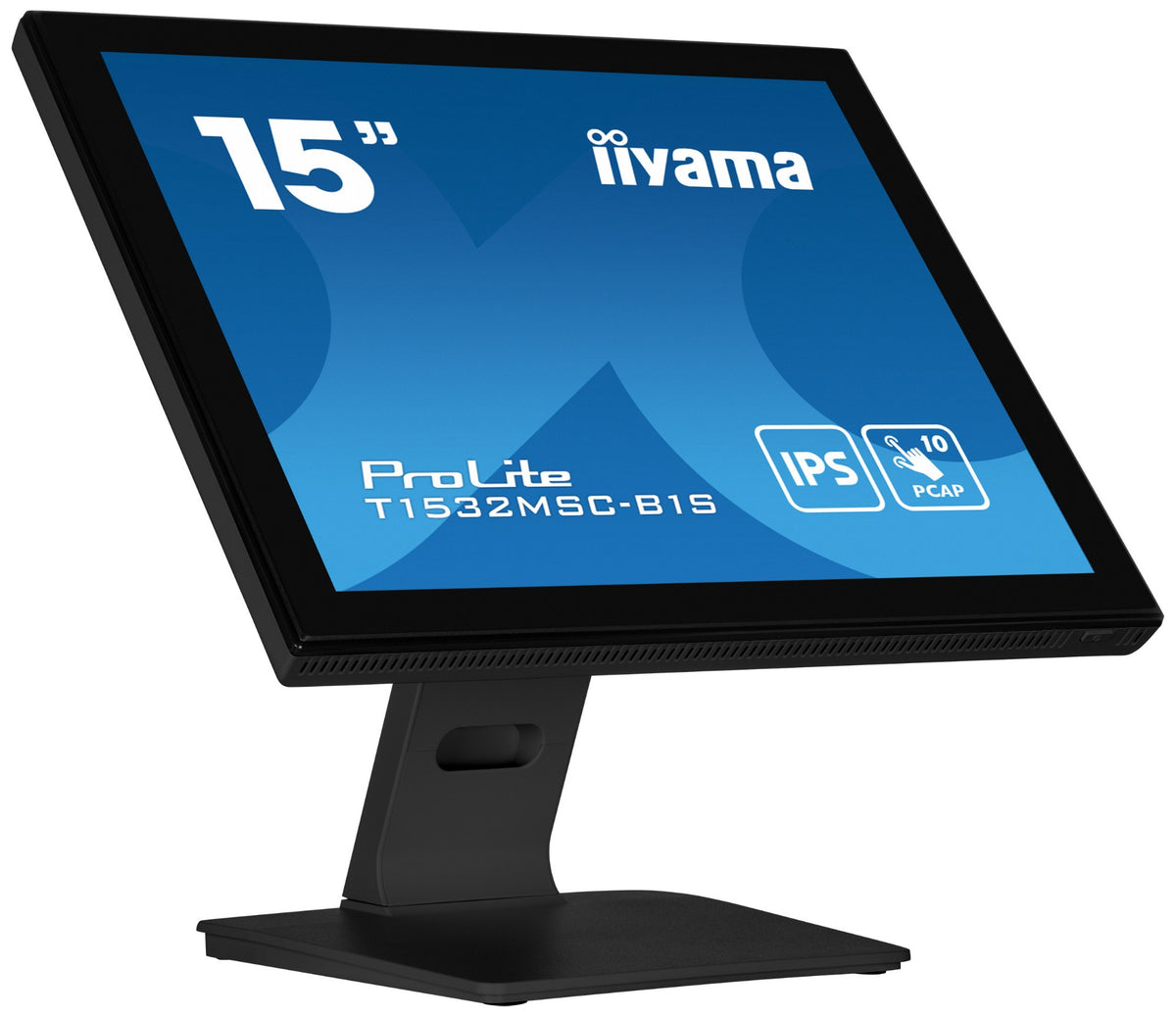

iiyama ProLite T1532MSC-B1S computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LCD Touchscreen Black
Product overview & specifications
15" Projective Capacitive 10pt touchscreen
The ProLite T1532MSC-B1S 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Native aspect ratio | 4:3 |
| HD type | XGA |
| Display technology | LCD |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Digital horizontal frequency | 31 - 60 kHz |
| Display resolution | 1024 x 768 pixels |
| Response time | 8 ms |
| Display diagonal | 38.1 cm (15") |
| Contrast ratio (typical) | 800:1 |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 38 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 315 cd/m² |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP54 |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Headphone out | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 315 cd/m² |
| Power supply type | Internal |
| Active display area (W x H) | 304.1 x 228.1 mm |
| Weight (with stand) | 3.7 kg |
| Touch method | stylus, finger, glove (latex) |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Height adjustment | No |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 16 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.1 kWh |
| Weight & dimensions | |
| Width (with stand) | 351 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 306.5 mm |
| Weight (with stand) | 3.7 kg |
| Width | 351 mm |
| Weight | 3.7 kg |
| Height | 306.5 mm |
| Depth | 200 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Sustainability | |
| Sustainability certificates | ErP |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 315 cd/m² |
| Active display area (W x H) | 304.1 x 228.1 mm |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP54 |
| Width | 351 mm |
| Weight | 3.7 kg |
| Height | 306.5 mm |
| Depth | 200 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Quick start guide | Yes |
| HDMI | Yes |
| Power supply type | Internal |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
