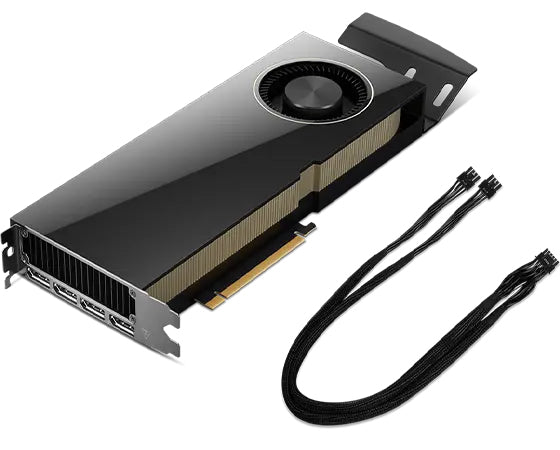

Lenovo NVIDIA RTX 6000 Ada 48 GB GDDR6
Product overview & specifications
Nvidia RTX 6000 Ada 48GB GDDR6
The NVIDIA RTX 6000 Ada Generation delivers the highest level of graphics, ray tracing and Al performance to enable the most intense graphics applications with improved streaming multiprocessor cores, 3rd generation ray tracing cores, and 4th generation tensor cores. NVIDIA RTX 6000 Ada Generation supports the industry's most expansive single GPU graphics memory footprint consisting of 48 GB of GDDR6 memory. It is fully qualified on selected ThinkStation Machines and is the world's most powerful visual computing GPU for desktop workstations.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | RTX 6000 Ada |
| Memory | |
| Discrete graphics card memory | 48 GB |
| Memory bandwidth (max) | 960 GB/s |
| Memory bus | 384 bit |
| Graphics card memory type | GDDR6 |
| Ports & interfaces | |
| HDMI ports quantity | 0 |
| DisplayPort version | 1.4a |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 4.0 |
| Video | |
| DirectX version | 12.0 |
| Shader model version | 6.6 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Performance | |
| Virtual Reality (VR) ready | Yes |
| DirectX version | 12.0 |
| Shader model version | 6.6 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Certification | RCM, BSMI, CE, FCC, ICES, KCC, UL, cUL, VCCI |
| Software | |
| Windows operating systems supported | Windows 11 |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Minimum system power supply | 300 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| TV tuner integrated | No |
| System requirements | |
| Windows operating systems supported | Windows 11 |
| Minimum system power supply | 300 W |
| Weight & dimensions | |
| Weight | 1.27 kg |
| Height | 104.6 mm |
| Depth | 51.3 mm |
| Length | 266.7 mm |
| Packaging data | |
| Package type | Box |
| Package width | 490 mm |
| Package height | 92 mm |
| Package depth | 220 mm |
| Package weight | 1.4 kg |
| Certificates | |
| Certification | RCM, BSMI, CE, FCC, ICES, KCC, UL, cUL, VCCI |
