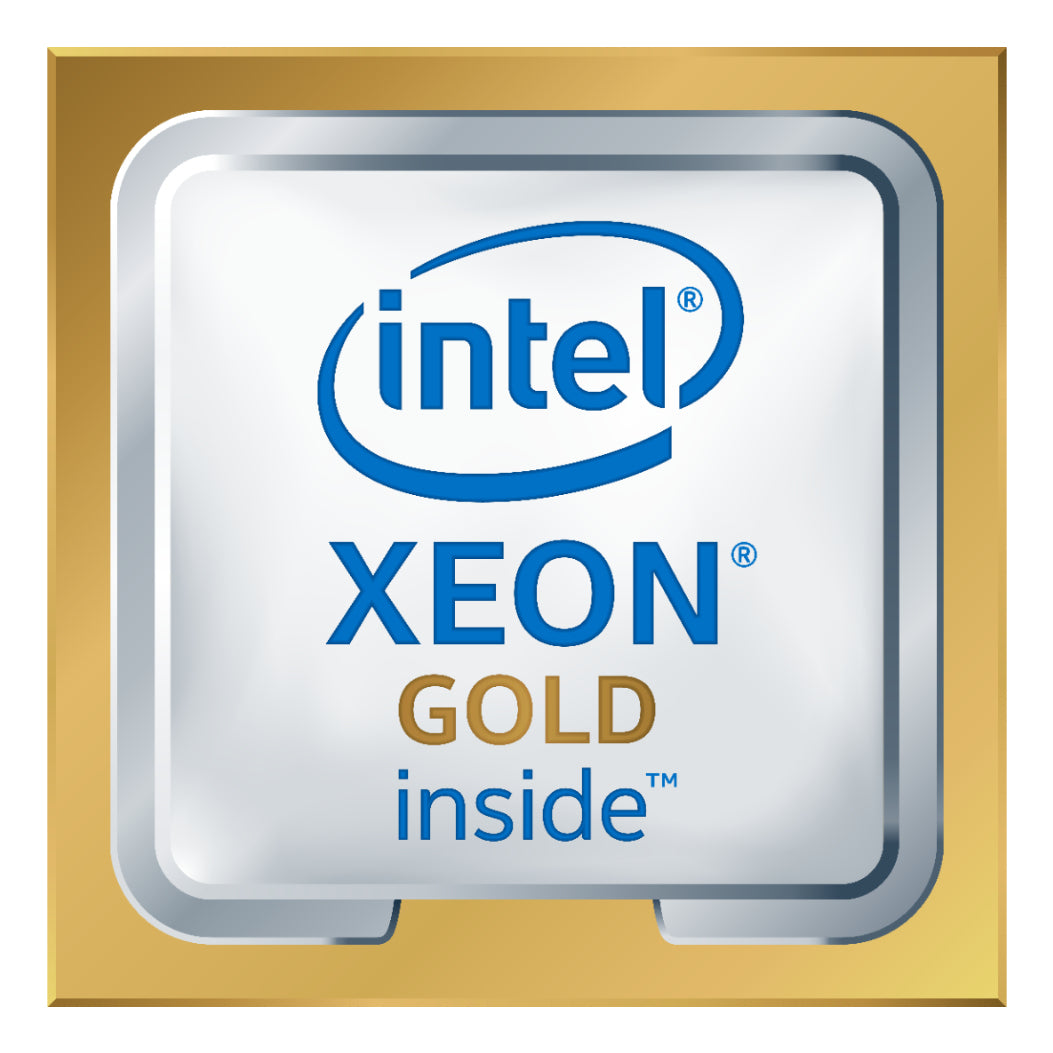

Lenovo Intel Xeon Gold 5218T processor 2.1 GHz 22 MB
Product overview & specifications
ThinkSystem SR550/SR590/SR650 Intel Xeon Gold 5218T 16C 105W 2.1GHz Processor Option Kit w/o FAN
ThinkSystem servers incorporate Intel Xeon Scalable Family processors to enable critical business workloads and applications. The Intel scalable design provides significant improvement in performance, advanced reliability, scalability and hardware-enhanced security. Enhancements include higher per-core performance, greater memory bandwidth, expanded I/O, and improved security. This page allows you compare the features of the processors.
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor base frequency | 2.1 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 105 W |
| Processor cache | 22 MB |
| Processor model | 5218T |
| Processor threads | 32 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 16 |
| Processor socket | LGA 3647 (Socket P) |
| Memory | |
| Maximum internal memory supported by processor | 1 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| Power | |
| Thermal Design Power (TDP) | 105 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 4S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 105 W |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Number of UPI links | 2 |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Servicing status | Baseline |
| Features | |
| Maximum number of PCI Express lanes | 48 |
| Thermal Design Power (TDP) | 105 W |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 4S |
| Embedded options available | Yes |
| Market segment | Server |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Speed Shift Technology | Yes |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | No |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Intel® Optane™ DC Persistent Memory technology | Yes |
| Intel Speed Select Technology (SST) | No |
| Intel® Transactional Synchronization Extensions | Yes |
| Operational conditions | |
| Tcase | 93 °C |
| Other features | |
| Compatibility | ThinkSystem SR550/SR590/SR650 |
