Lenovo 4XC1K80847 network card Internal Ethernet 1000 Mbit/s
Product overview & specifications

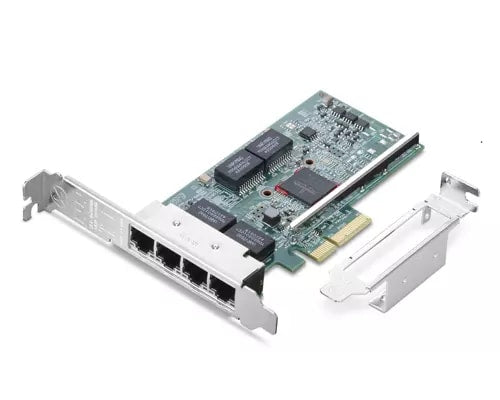

ThinkStation Broadcom BCM5719-4P Quad-port Gigabit Ethernet Adapter
ThinkStation Broadcom BCM5719-4P Quad-port Gigabit Ethernet Adapter is a quad-port 10/100/1000 Mb/s x4 PCI Express (PCIe) Specification v2.1 Ethernet adapter that supports offload technologies, including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and Receive Side Scaling (RSS) that deliver optimal network throughput, lower host processor utilisation and, as a result, improve system overall performance.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Compatible products | ThinkStation |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.3az |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
| Compatible products | ThinkStation |
| Certification | CE/UL/FCC/IC/ACA/BSM/MSIP/VCCI |
| Internal | Yes |
| Component for | Server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 132.1 mm |
| Depth | 65.6 mm |
| Weight | 80 g |
| Package width | 177 mm |
| Package depth | 144 mm |
| Package height | 53 mm |
| Package weight | 120 g |
| Packaging data | |
| Package width | 177 mm |
| Package depth | 144 mm |
| Package height | 53 mm |
| Package weight | 120 g |
| Performance | |
| Compatible products | ThinkStation |
| Certificates | |
| Certification | CE/UL/FCC/IC/ACA/BSM/MSIP/VCCI |
