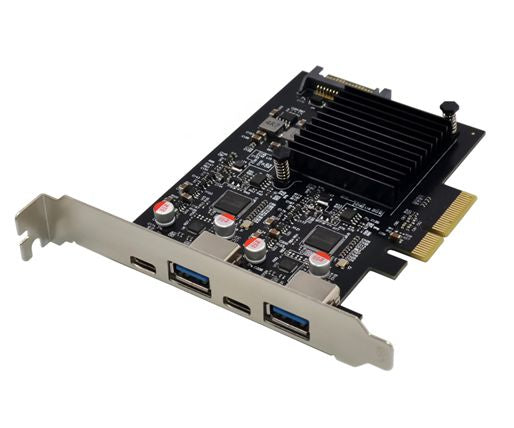

Microconnect MC-PCIE-648 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Product overview & specifications
PCIe X4 ASM3142 10Gbps USB3.1 USB-C + USB A
The PCIe ASM3142 2C2A USB3.1 10Gbps Card is the next generation Universal Series
Bus xHCI host controller, bridging PCI Express to USB3.1 Gen-II , compliant with
USB3.1 Specification Revision1.0 and Intel eXtensible Host Controller Interface
Specification revision1.1,it supports the new feature of USB3.1 Gen2, named multiple
INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the
available bandwidth of USB3.1 Gen2 bus. The USB3.1 Card application of Desktop PC,
Workstations, Servers, etc..
Bus xHCI host controller, bridging PCI Express to USB3.1 Gen-II , compliant with
USB3.1 Specification Revision1.0 and Intel eXtensible Host Controller Interface
Specification revision1.1,it supports the new feature of USB3.1 Gen2, named multiple
INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the
available bandwidth of USB3.1 Gen2 bus. The USB3.1 Card application of Desktop PC,
Workstations, Servers, etc..
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Host interface | PCIe |
| Technical details | |
| Chipset | ASMedia ASM3142 |
| Bandwidth | 5 Gbit/s |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Chipset | ASMedia ASM3142 |
| Bandwidth | 5 Gbit/s |
| Design | |
| Internal | Yes |
| Features | |
| Chipset | ASMedia ASM3142 |
| Bandwidth | 5 Gbit/s |
| Power | |
| Output voltage | 5 V |
| Output current | 0.9 A |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 145 mm |
| Depth | 112 mm |
| Height | 28 mm |
| Weight | 66 g |
| Package width | 145 mm |
| Package depth | 112 mm |
| Package height | 28 mm |
| Package weight | 80 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 112 mm |
| Package height | 28 mm |
| Package weight | 80 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Chipset | ASMedia ASM3142 |
