j5create JCA374-N USB Type-C Multi-Adapter
Product overview & specifications

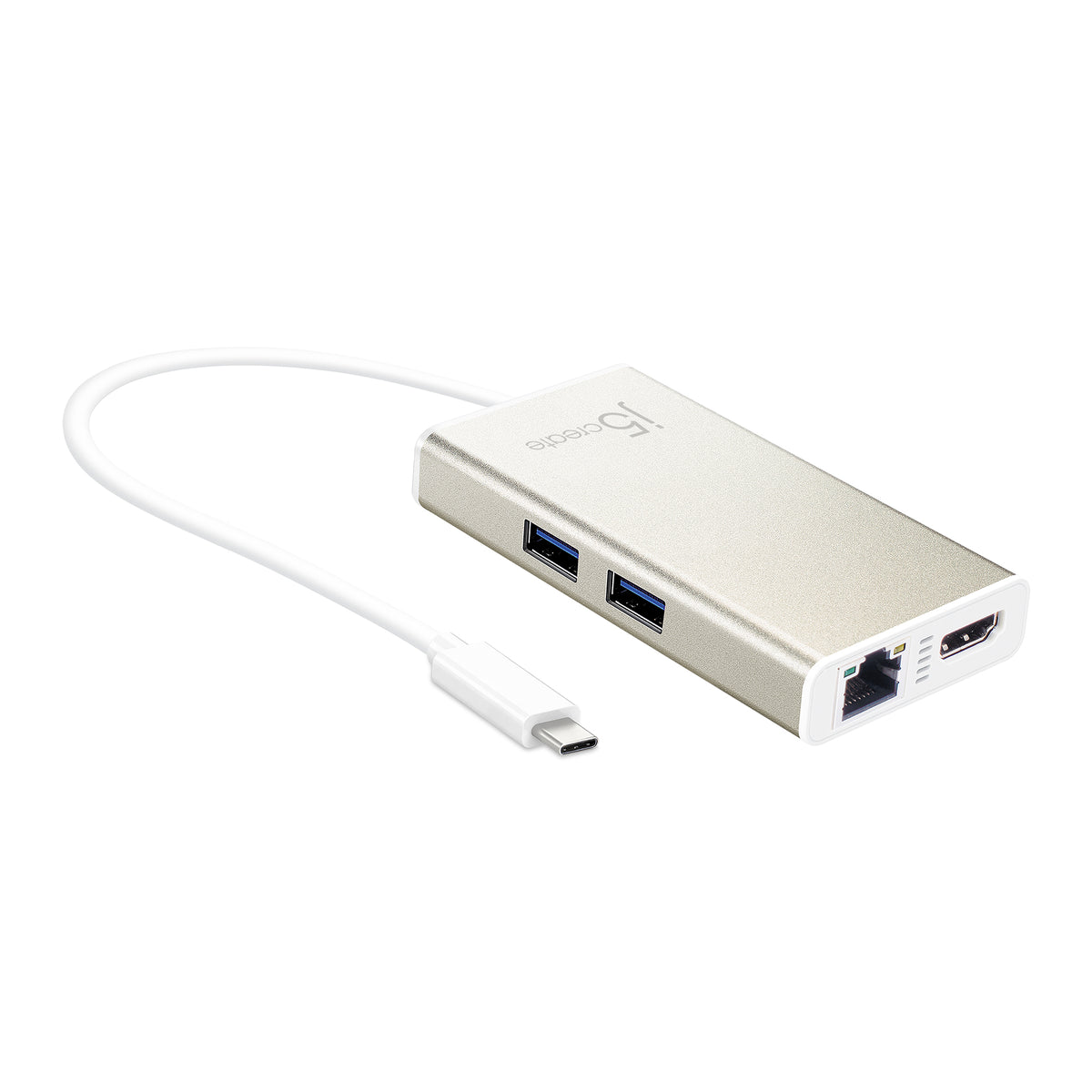

JCA374 USB-C® Multi-Adapter, Metallic Champagne
Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 2.0, it supports upstream streaming ensuing your connected laptop powered up while in use.
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Host interface | USB Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Country of origin | Taiwan |
| Product colour | Gold, White |
| Card reader integrated | No |
| Compatibility | Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 |
| Data transfer rate | 5 Gbit/s |
| Housing material | Aluminium |
| Colour name | Metallic Champagne |
| Operating temperature (remote control) (T-T) | 0 - 40 °C |
| Technical details | |
| Product colour | Gold, White |
| Compatibility | Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 |
| Data transfer rate | 5 Gbit/s |
| Cable length | 0.1 m |
| Box contents | 1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide |
| Master (outer) case GTIN (EAN/UPC) | 24712795081033 |
| Warranty period | 2 year(s) |
| Voltage | 5 V |
| Special features | Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case gross weight | 5.64 kg |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 235 mm |
| Products per shipping (inner) case | 10 pc(s) |
| Graphics | |
| Maximum resolution | 3840 x 2160 pixels |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power consumption (typical) | 1.15 W |
| Output voltage | 5 V |
| Output current | 0.22 A |
| USB cable length | 0.1 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Control unit | |
| Operating temperature (remote control) (T-T) | 0 - 40 °C |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 37 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Weight & dimensions | |
| Weight | 73.5 g |
| Width | 50.5 mm |
| Depth | 96.5 mm |
| Height | 15 mm |
| Package weight | 153.5 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 25 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | Taiwan |
| Product colour | Gold, White |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 153.5 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 25 mm |
| Packaging content | |
| Drivers included | Yes |
| Quick start guide | Yes |
| Packaging content | 1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Shipping (inner) case width | 21.2 cm |
| Shipping (inner) case length | 26.9 cm |
| Shipping (inner) case height | 13 cm |
| Shipping (inner) case net weight | 1.54 kg |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case gross weight | 5.64 kg |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 235 mm |
| Products per shipping (inner) case | 10 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Other features | |
| Voltage | 5 V |
| USB ports quantity | 3 |
| Compatible operating systems | Windows® 10 / 8.1 macOS® 10.10 and later Chrome OS™ |
| Cable type | USB-C |
| Cable length | 0.1 m |
| Special features | Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices |
