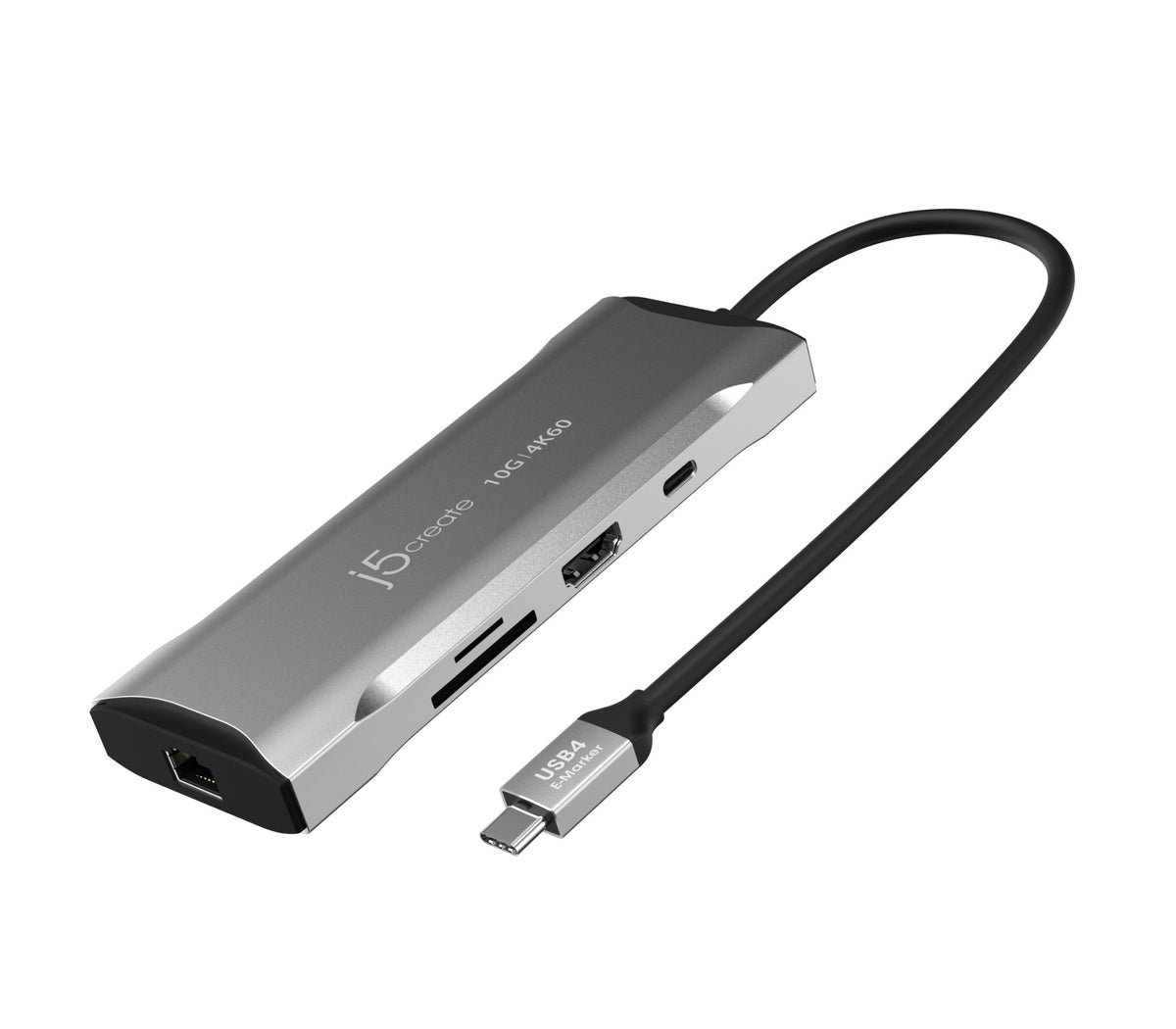

j5create JCD393 4K60 Elite USB-C® 10Gbps Mini Dock, Space Grey
Product overview & specifications
4K60 Elite USB-C® 10Gbps Mini Dock
Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 1 |
| Country of origin | Taiwan |
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Charging function | Yes |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Display modes | Extended, Mirror, Primary display |
| Colour name | Space Grey |
| Maximum refresh rate | 144 Hz |
| Technical details | |
| Product colour | Grey |
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Charging function | Yes |
| Master (outer) case GTIN (EAN/UPC) | 24712795086267 |
| Warranty period | 2 year(s) |
| Special features | Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case width | 226 mm |
| Master (outer) case gross weight | 4.06 kg |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 190 mm |
| Products per shipping (inner) case | 6 pc(s) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 3.48 W |
| Output voltage | 5 V |
| Output current | 0.69 A |
| Power connector | USB Type-C |
| USB cable length | 0.2 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 104 g |
| Width | 138 mm |
| Depth | 50 mm |
| Height | 16 mm |
| Package weight | 164 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 22.5 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | Taiwan |
| Product colour | Grey |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 164 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 22.5 mm |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Shipping (inner) case width | 16.5 cm |
| Shipping (inner) case length | 21.2 cm |
| Shipping (inner) case height | 13.7 cm |
| Shipping (inner) case net weight | 1.14 kg |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case width | 226 mm |
| Master (outer) case gross weight | 4.06 kg |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 190 mm |
| Products per shipping (inner) case | 6 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Other features | |
| Special features | Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz |
