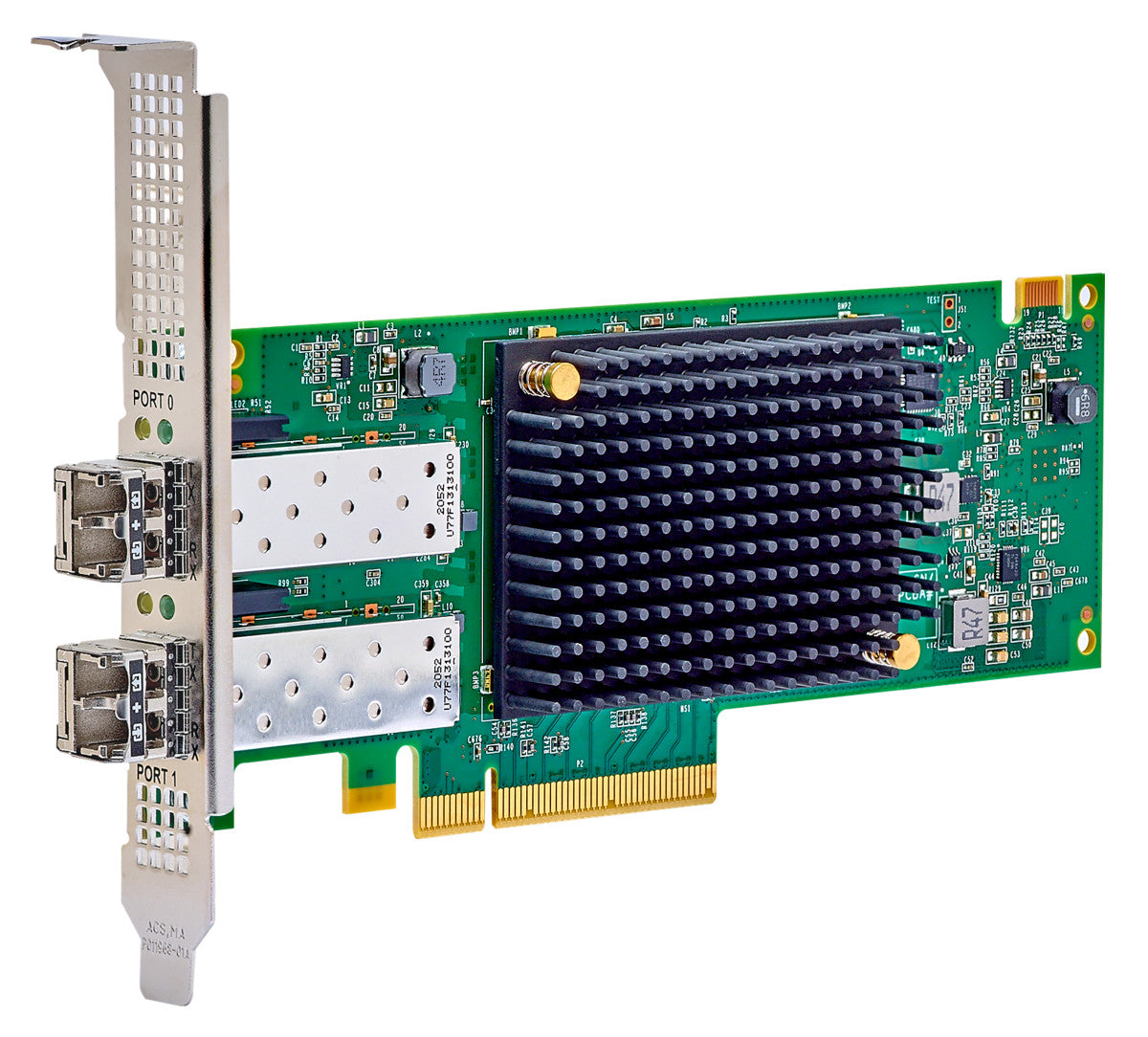

Lenovo 4XC7A77485 network card Internal Fiber 64000 Mbit/s
Product overview & specifications
Emulex LPe36002 64Gb 2-port PCIe Fibre Channel Adapter
The next generation Emulex 64 Gb LPe36002 2-port Fibre Channel host bus adapter for ThinkSystem servers is an ideal solution when requiring high-speed 64 Gb/s data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 2 |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 64000 Mbit/s |
| Network | |
| Maximum data transfer rate | 64000 Mbit/s |
| Design | |
| Certification | AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) China RoHS compliant cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) EU Low Voltage Directive UKCA Mark FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea KCC, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A Taiwan BSMI RoHS Compliant UL recognized to UL60950-1 2nd Edition |
| Internal | Yes |
| Component for | Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 168 mm |
| Height | 69 mm |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Certificates | |
| Certification | AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) China RoHS compliant cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) EU Low Voltage Directive UKCA Mark FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea KCC, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A Taiwan BSMI RoHS Compliant UL recognized to UL60950-1 2nd Edition |
