Lenovo 4XC1D51447 network card Internal WWAN 600 Mbit/s
Product overview & specifications

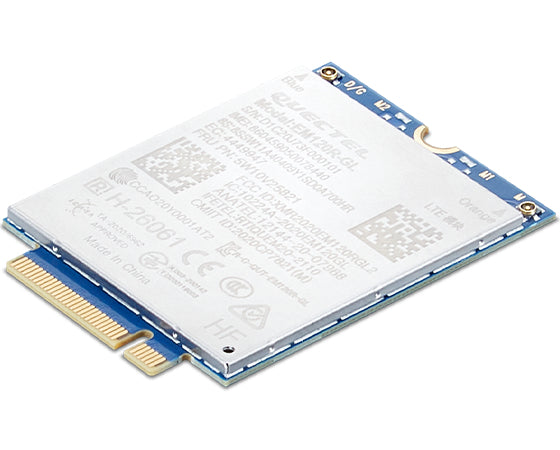

ThinkPad Quectel SDX24 EM120R-GL CAT12 PCIE WWAN Module
ThinkPad Quectel SDX24 EM120R-GL CAT12 WWAN Module I is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCI Express M.2 interface. With downlink speed of up to 600 Mbps and uplink speed of up to 150 Mbps, the CAT12 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 600 Mbit/s |
| Network | |
| Maximum data transfer rate | 600 Mbit/s |
| Design | |
| Certification | CE,FCC,ANATEL,TELEC&JATE,RCM SDoC,KC,NCC,IC, ICASA, IFETEL |
| Internal | Yes |
| Component for | Laptop |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 42 mm |
| Depth | 30 mm |
| Height | 2.3 mm |
| Weight | 6.8 g |
| Package width | 53 mm |
| Package depth | 144 mm |
| Package height | 177 mm |
| Package weight | 70 g |
| Packaging data | |
| Package width | 53 mm |
| Package depth | 144 mm |
| Package height | 177 mm |
| Package weight | 70 g |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE,FCC,ANATEL,TELEC&JATE,RCM SDoC,KC,NCC,IC, ICASA, IFETEL |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
Lenovo 4XC1D51447 network card Internal WWAN 600 Mbit/s
£137.28
