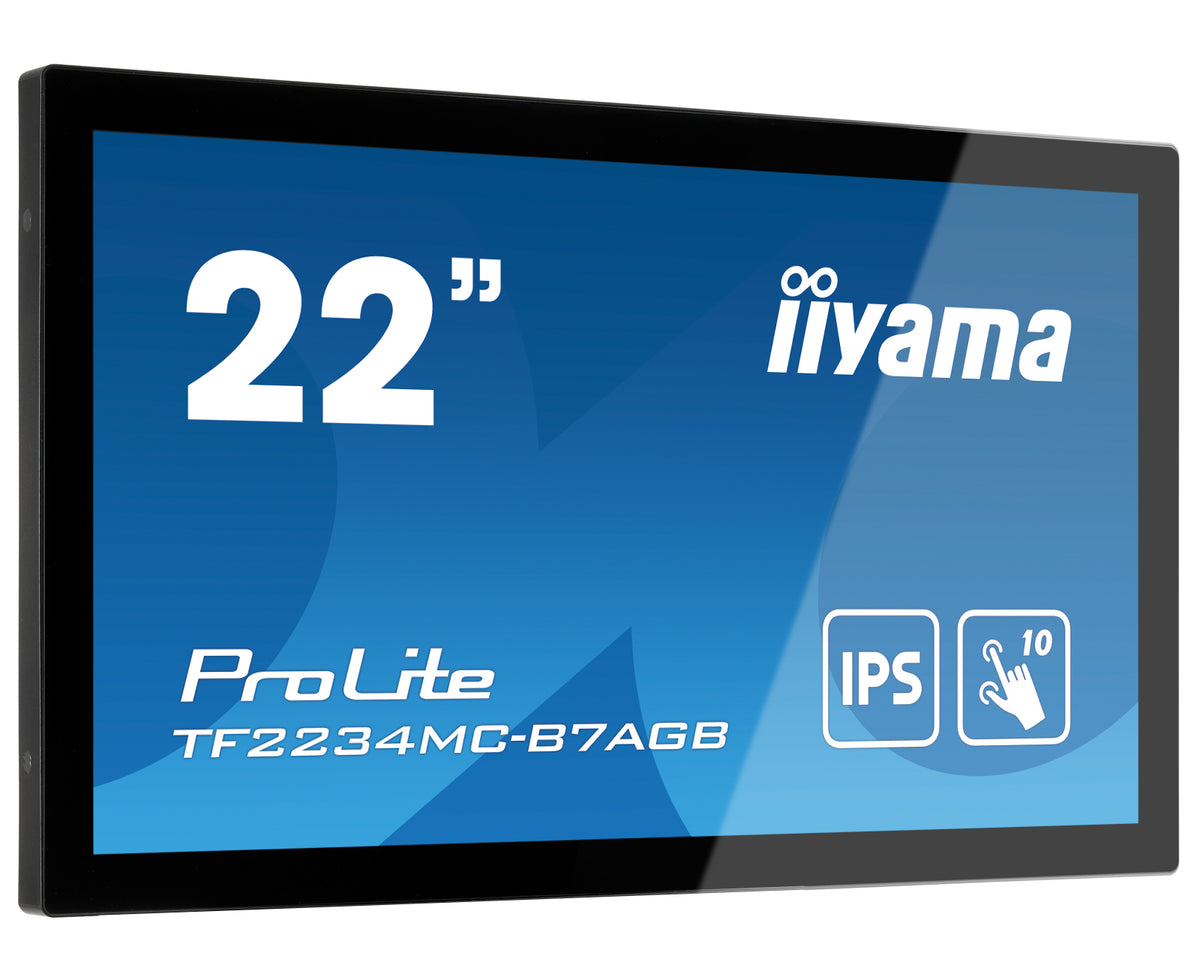

iiyama ProLite TF2234MC-B7AGB computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Product overview & specifications
10pt touch open frame monitor with Anti-Glare Glass and high brightness
The ProLite TF2234MC-B7AGB uses PCAP Touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare Glass helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC-B7AGB is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 6H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 54.6 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 300 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 9 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 1.5 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Placement supported | Horizontal/Vertical |
| HDMI | Yes |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Built-in microphone | No |
| Product colour | Black |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Products per pallet | 48 pc(s) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Pallet net width | 109 cm |
| Pallet net height | 109 cm |
| Pallet net length | 192.7 cm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Packaging content | AC adapter |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 300 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 476 x 267.7 mm |
| Weight (with stand) | 4.4 kg |
| Touch method | stylus, finger, glove (latex) |
| Surface hardness | 6H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 9 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 18 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Weight & dimensions | |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 313.5 mm |
| Weight (with stand) | 4.4 kg |
| Weight (without stand) | 4.4 kg |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Width | 517.5 mm |
| Weight | 4.4 kg |
| Height | 313.5 mm |
| Depth | 46 mm |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| AC adapter included | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 300 cd/m² |
| Active display area (W x H) | 476 x 267.7 mm |
| AC adapter included | Yes |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 476 x 267.7 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP65 |
| Width | 517.5 mm |
| Weight | 4.4 kg |
| Height | 313.5 mm |
| Depth | 46 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 6H |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Products per pallet | 48 pc(s) |
| Front bezel colour | Black |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Harmonized System (HS) code | 85285210 |
| Pallet net width | 109 cm |
| Pallet net height | 109 cm |
| Pallet net length | 192.7 cm |
