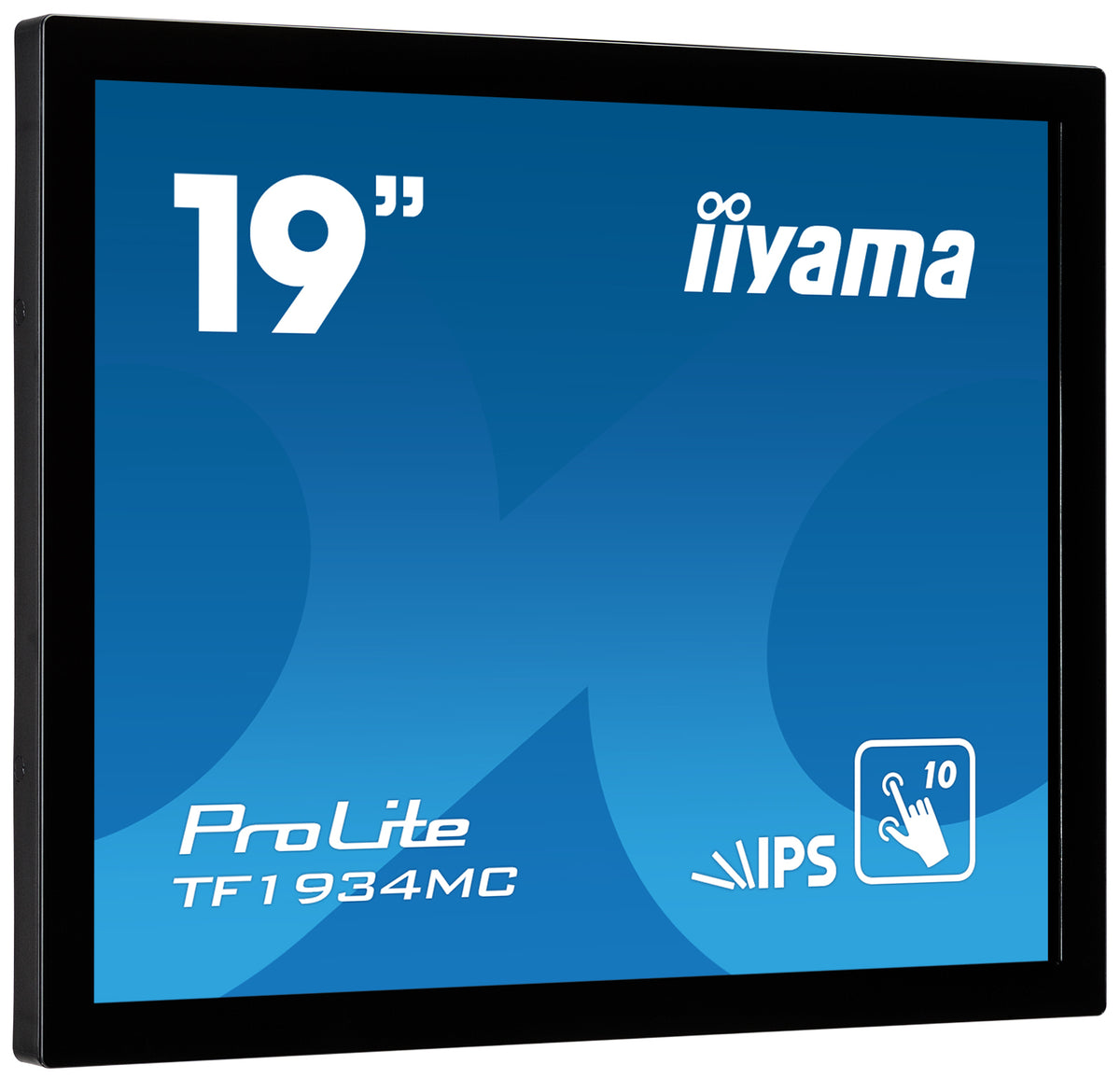

iiyama ProLite TF1934MC-B7X computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Touchscreen Black
Product overview & specifications
10pt touch Open Frame monitor with IPS panel and touch through glass function
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 5:4 |
| HD type | SXGA |
| Display technology | LED |
| Contrast ratio (dynamic) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Aspect ratio | 5:4 |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Viewable size diagonal | 48 cm |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Backlight type | LED |
| Display resolution | 1280 x 1024 pixels |
| Response time | 14 ms |
| Display diagonal | 48.3 cm (19") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 48 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| LED backlight | Yes |
| Display brightness | 315 cd/m² |
| Positional accuracy | 2 mm |
| Response time measurement type | GTG (Gray to Gray) |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| NVIDIA G-SYNC | No |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Palm rejection | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 21 W |
| Power consumption (off) | 1.5 W |
| Energy efficiency scale | A to G |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Design | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 6 mm |
| Mean time between failures (MTBF) | 50000 h |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 344 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 416 mm |
| Cable lock slot | Yes |
| Mean time between failures (MTBF) | 50000 h |
| HDMI | Yes |
| Display viewable area (HxV) | 376.5 x 301.1 mm |
| Built-in microphone | No |
| Product colour | Black |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM) |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 315 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 376.5 x 301.1 mm |
| Weight (with stand) | 4.4 kg |
| Touch method | stylus, finger, glove (latex) |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Weight & dimensions | |
| Height (without stand) | 344 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 416 mm |
| Width (with stand) | 416 mm |
| Depth (with stand) | 46.5 mm |
| Height (with stand) | 344 mm |
| Weight (with stand) | 4.4 kg |
| Weight (without stand) | 4.4 kg |
| Package width | 500 mm |
| Package depth | 425 mm |
| Package height | 133 mm |
| Package weight | 6.3 kg |
| Width | 416 mm |
| Weight | 4.4 kg |
| Height | 344 mm |
| Depth | 46.5 mm |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 425 mm |
| Package height | 133 mm |
| Package weight | 6.3 kg |
| USB cable length | 1.8 m |
| Power cable length | 1.8 m |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Packaging content | |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| AC adapter included | Yes |
| USB cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM) |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 315 cd/m² |
| Active display area (W x H) | 376.5 x 301.1 mm |
| AC adapter included | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Display viewable area (HxV) | 376.5 x 301.1 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP65 |
| Width | 416 mm |
| Weight | 4.4 kg |
| Height | 344 mm |
| Depth | 46.5 mm |
| Positional accuracy | 2 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Supplied AC adapter type | AC |
| Height (without stand) | 344 mm |
| Depth (without stand) | 46.5 mm |
| Width (without stand) | 416 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | External |
| Power cable length | 1.8 m |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
