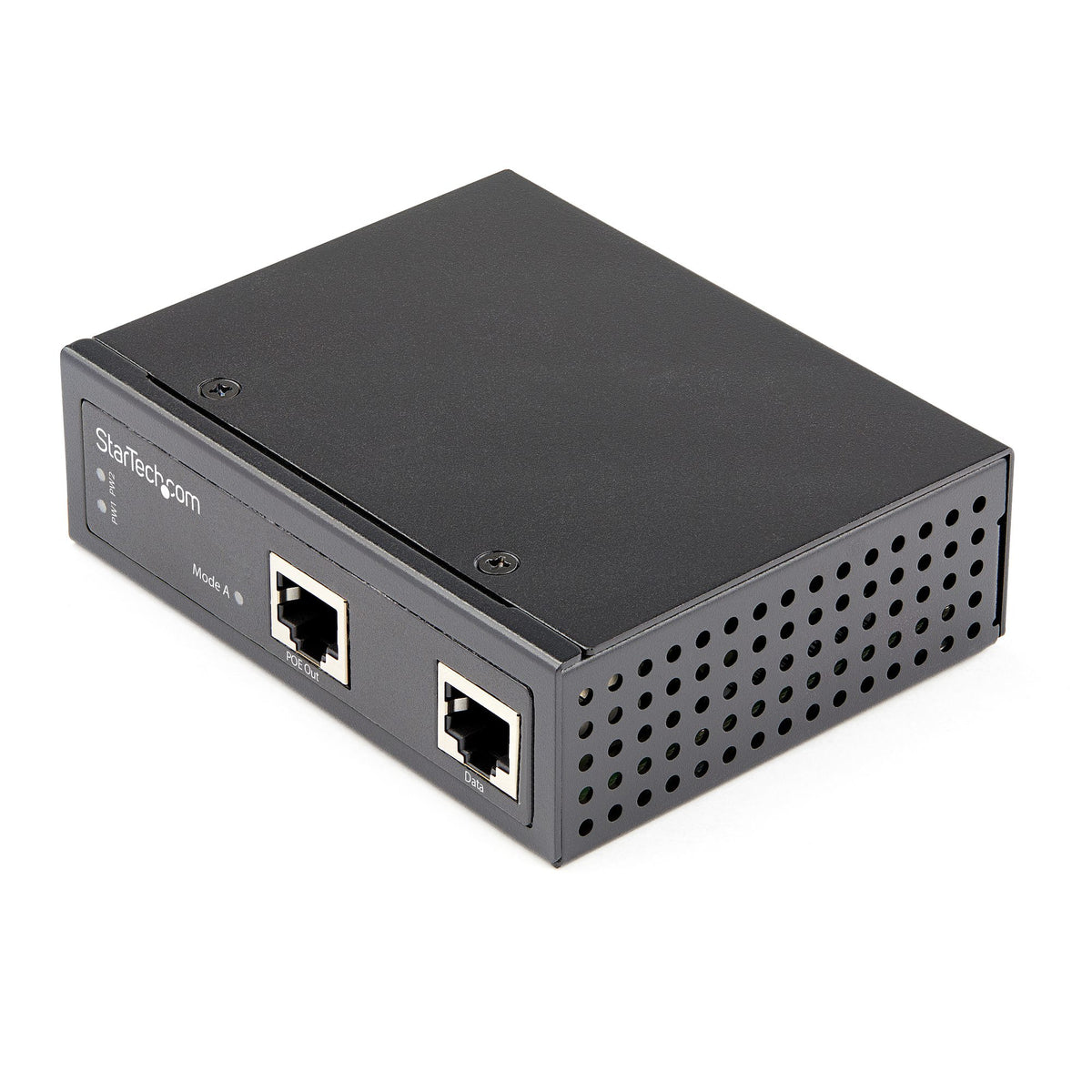

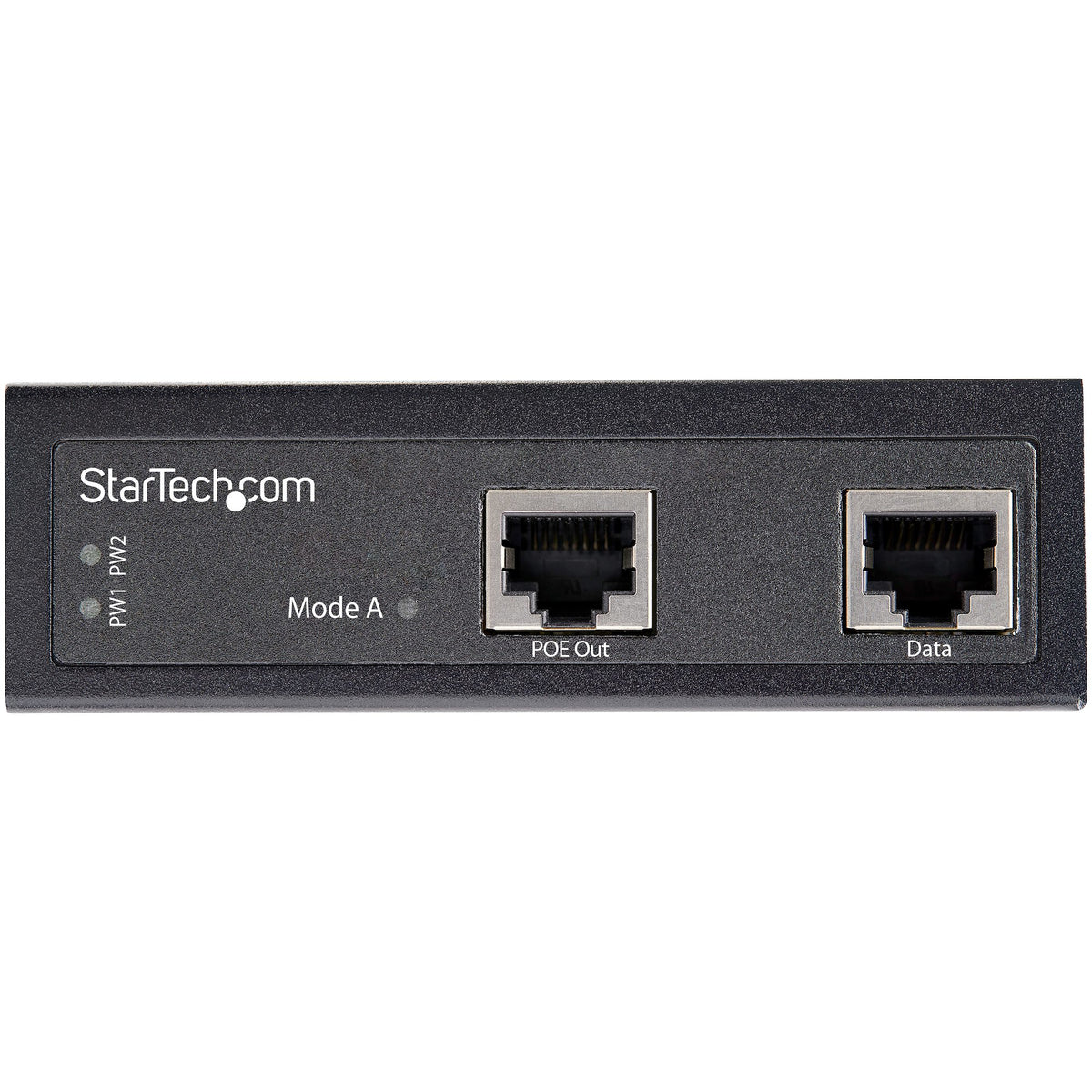

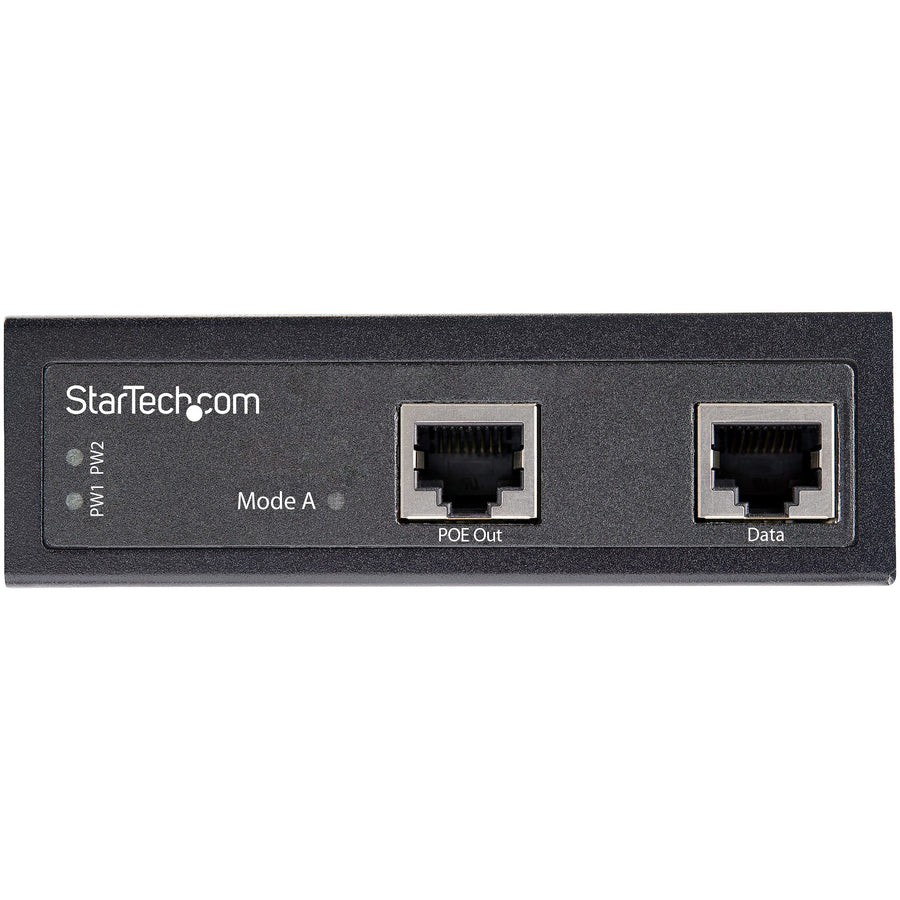

StarTech.com Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access - TAA
Product overview & specifications
StarTech Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access , TAA (POEINJ30W)
Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power Budget
Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

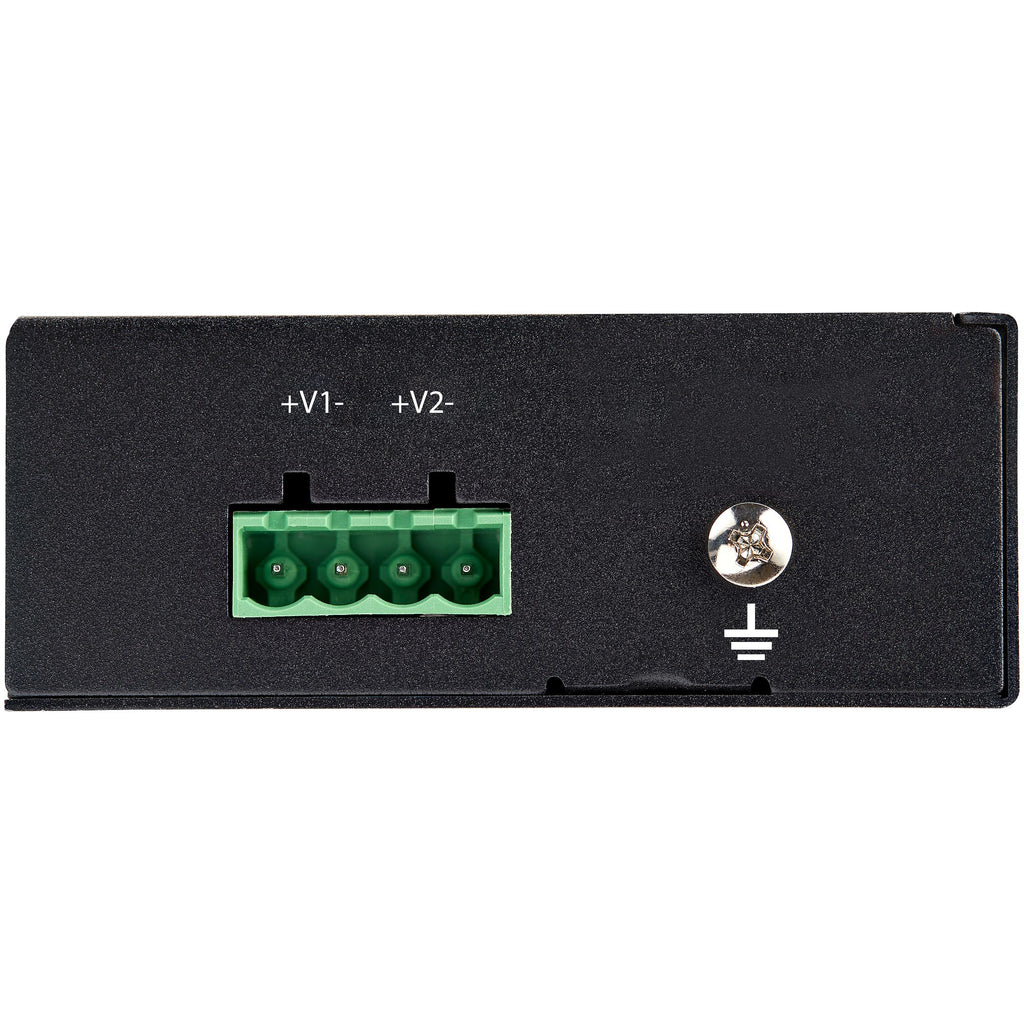

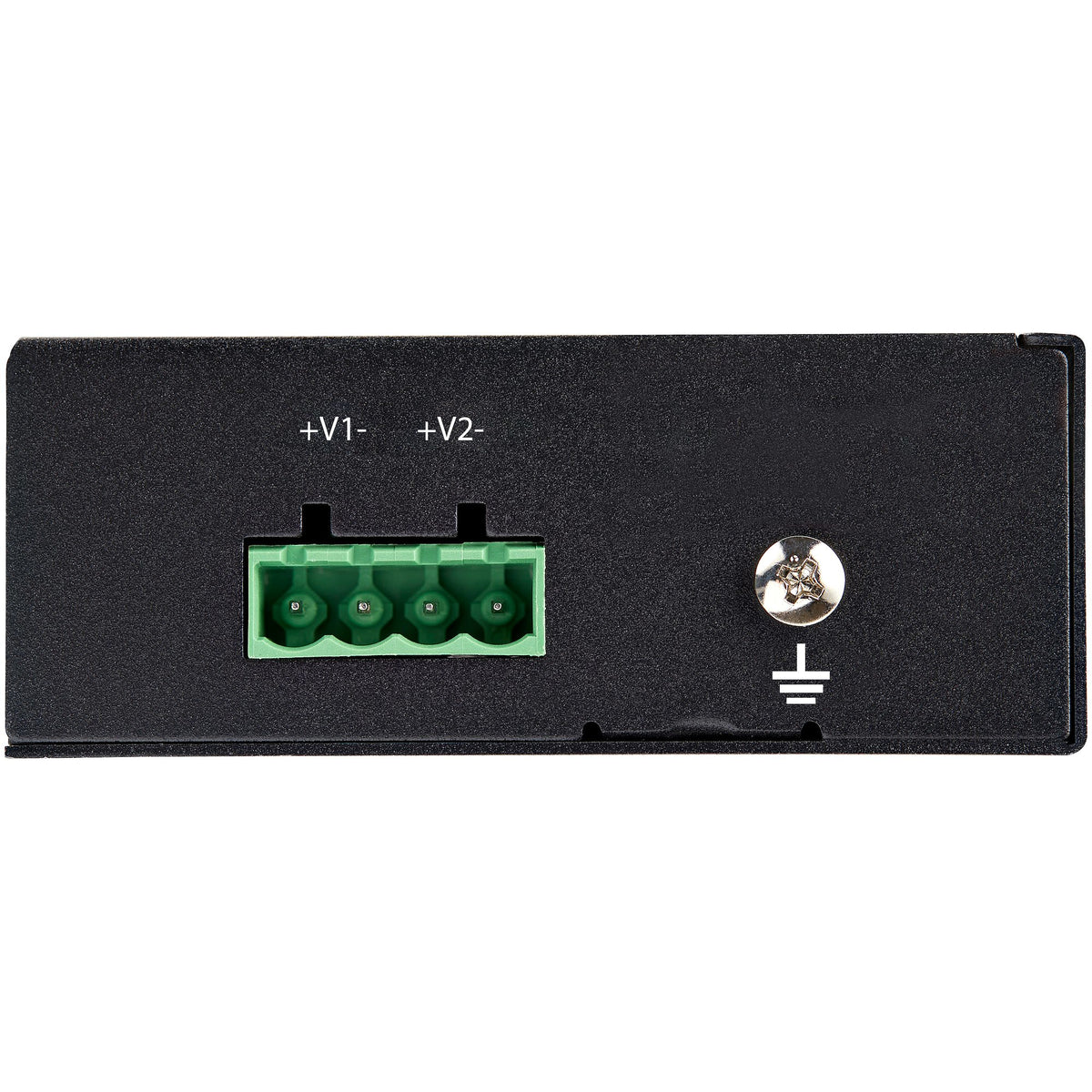

Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power Budget
Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | CSMA/CD |
| Features | |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| Power protection features | Overload, Reverse polarity |
| Safety | MET (UL) 60950-1, EN60950-1 |
| LED indicators | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Certification | CE, FCC, UL |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power consumption (max) | 37 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Input voltage | 48 - 56 V |
| Power plug type | Type N |
| Certificates | |
| Certification | CE, FCC, UL |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 143 g |
| Package weight | 381 g |
| Package depth | 214 mm |
| Package width | 166 mm |
| Package length | 21.1 cm |
| Package height | 69 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package weight | 381 g |
| Package depth | 214 mm |
| Package width | 166 mm |
| Package length | 21.1 cm |
| Package height | 69 mm |
| Technical details | |
| Package width | 166 mm |
| Package length | 21.1 cm |
| Package height | 69 mm |
| Safety | MET (UL) 60950-1, EN60950-1 |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 48 - 56 V |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85044095 |
