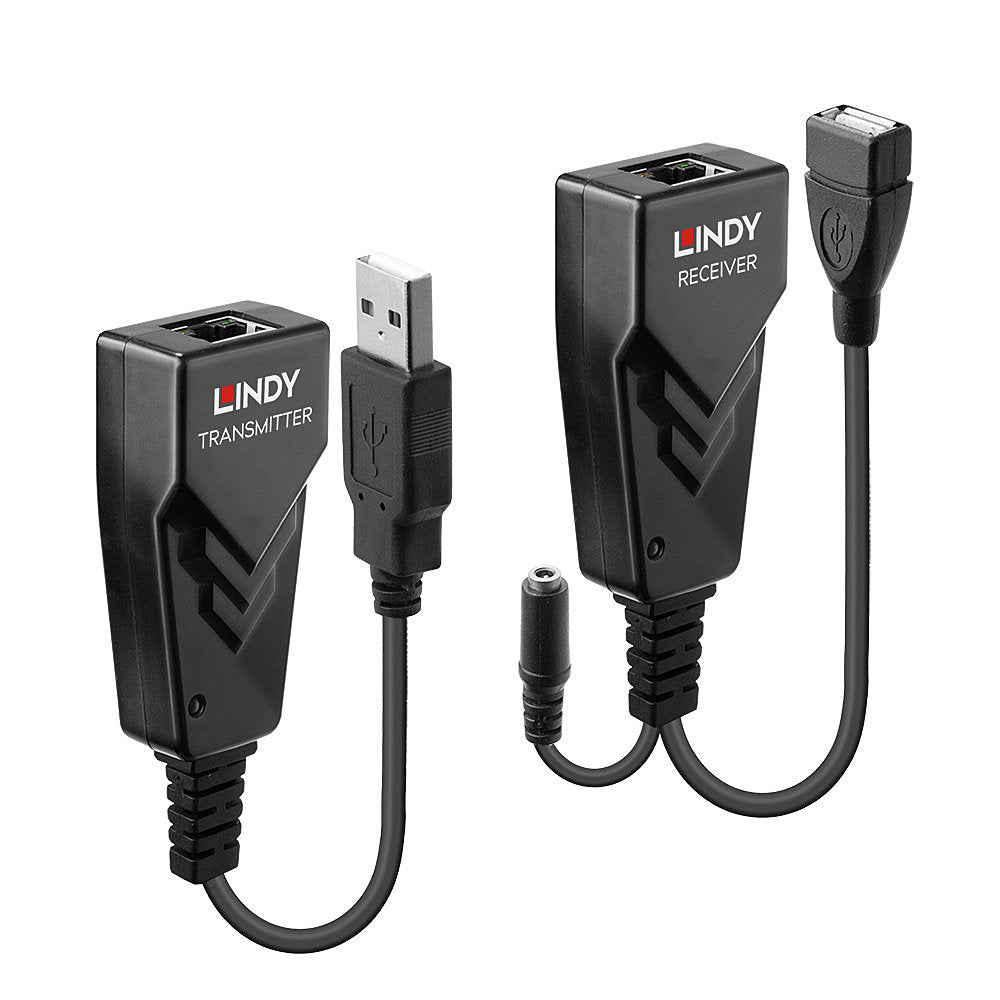

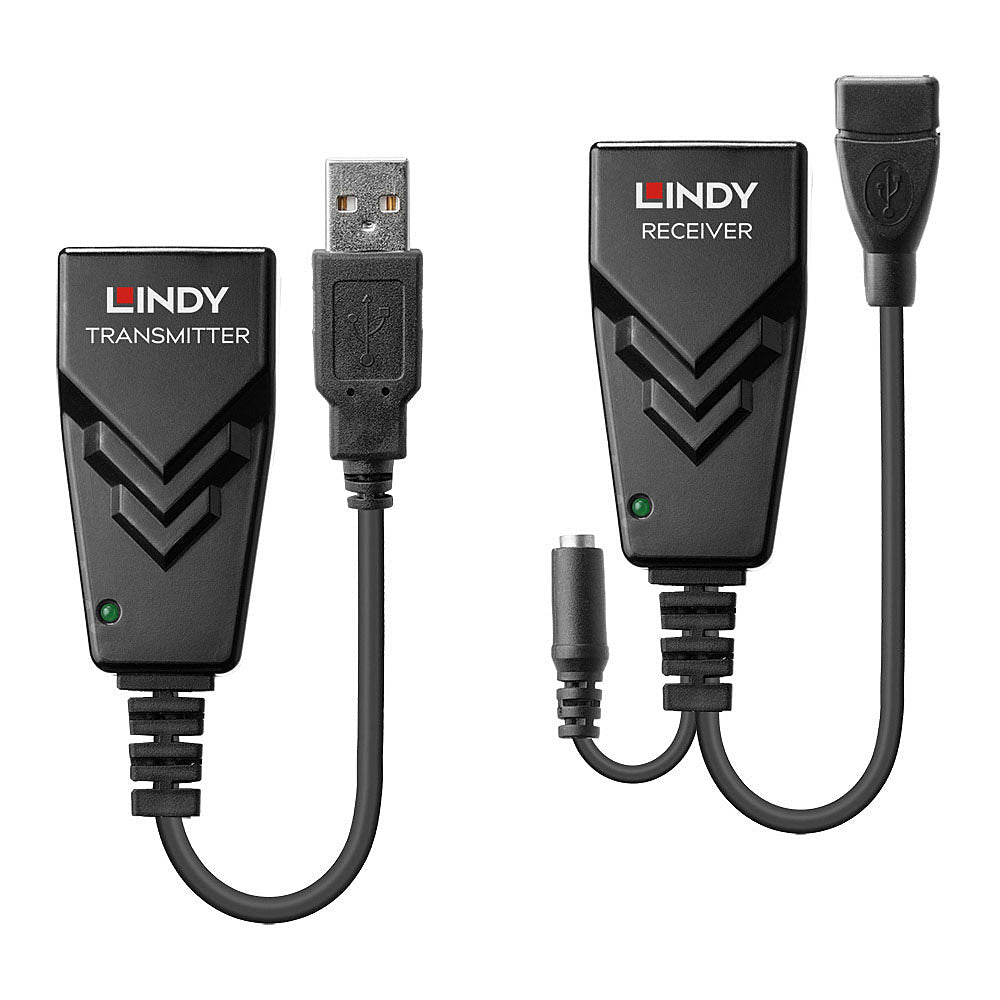

Lindy 100m USB 2.0 Cat.6 Extender
Product overview & specifications
100m USB 2.0 Cat.6 Extender
The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.
For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.
*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.
| Performance | |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | CH317Q, CH536G |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Design | |
| Housing material | Plastic |
| Certification | CE, FCC, REACH, CP65 |
| Product colour | Black |
| Power | |
| Output voltage | 5 V |
| Output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 22 mm |
| Height | 69 mm |
| Weight | 50 g |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 200 mm |
| Package height | 48 mm |
| Package weight | 250 g |
| Technical details | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | CH317Q, CH536G |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH, CP65 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
