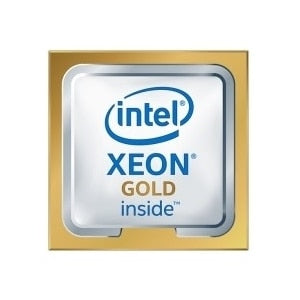

DELL Xeon 5220 processor 2.2 GHz 24.75 MB Tray
Product overview & specifications
Intel Xeon Gold 5220 (24.75MB Cache, 2.2GHz, 3.9GHz Turbo)
The Intel Xeon® 5220 2.2GHz Eighteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon 5220 2.2GHz Eighteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon 5220 2.2GHz Eighteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor base frequency | 2.2 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 125 W |
| Processor cache | 24.75 MB |
| Processor ARK ID | 193388 |
| Processor model | 5220 |
| Processor threads | 36 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.9 GHz |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 18 |
| Processor socket | LGA 3647 (Socket P) |
| Package type | Tray |
| Memory | |
| Maximum internal memory supported by processor | 1.02 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| Power | |
| Thermal Design Power (TDP) | 125 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Product type | Processor |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 125 W |
| Status | Launched |
| Market segment | Server |
| Launch date | Q2'19 |
| Intel Virtualization Technology (VT-x) | Yes |
| Number of UPI links | 2 |
| Memory speed (max) | 2667 MHz |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Features | |
| Maximum number of PCI Express lanes | 48 |
| Thermal Design Power (TDP) | 125 W |
| Processor package size | 76.0 x 56.5 mm |
| Processor ARK ID | 193388 |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Embedded options available | No |
| Market segment | Server |
| Harmonized System (HS) code | 85423119 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Speed Shift Technology | Yes |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | No |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Intel® Optane™ DC Persistent Memory technology | Yes |
| Intel Speed Select Technology (SST) | No |
| Operational conditions | |
| Tcase | 87 °C |
| Packaging data | |
| Package type | Tray |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
| Processor package size | 76.0 x 56.5 mm |
| Other features | |
| Compatibility | - PowerEdge M640 VRTX - PowerEdge R440 - PowerEdge R940 - PowerEdge R740 - PowerEdge MX840C - PowerEdge R540 - PowerEdge R840 - PowerEdge C4140 - PowerEdge R940xa - PowerEdge MX740C - PowerEdge FC640 - PowerEdge R740XD - PowerEdge R640 - PowerEdge C6420 - PowerEdge XR2 - PowerEdge T640 - PowerEdge M640 - PowerEdge R740xd2 |
