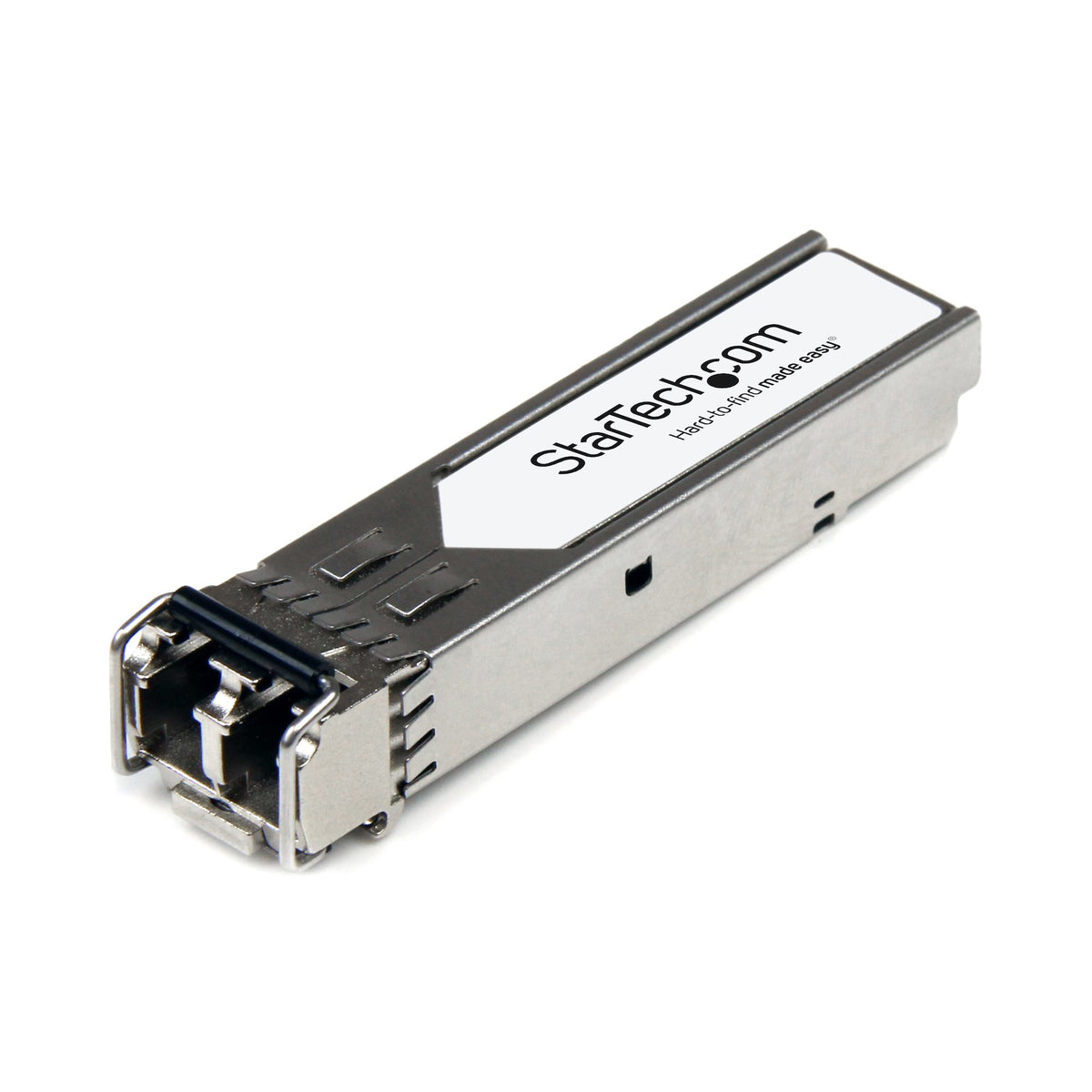

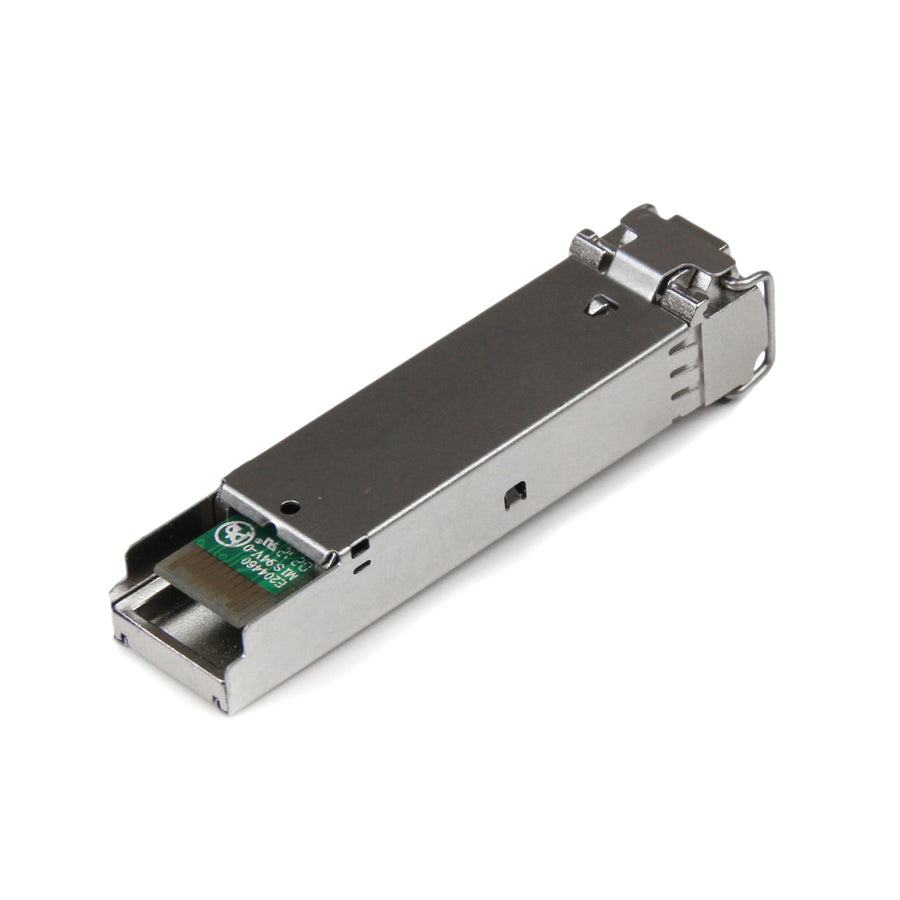

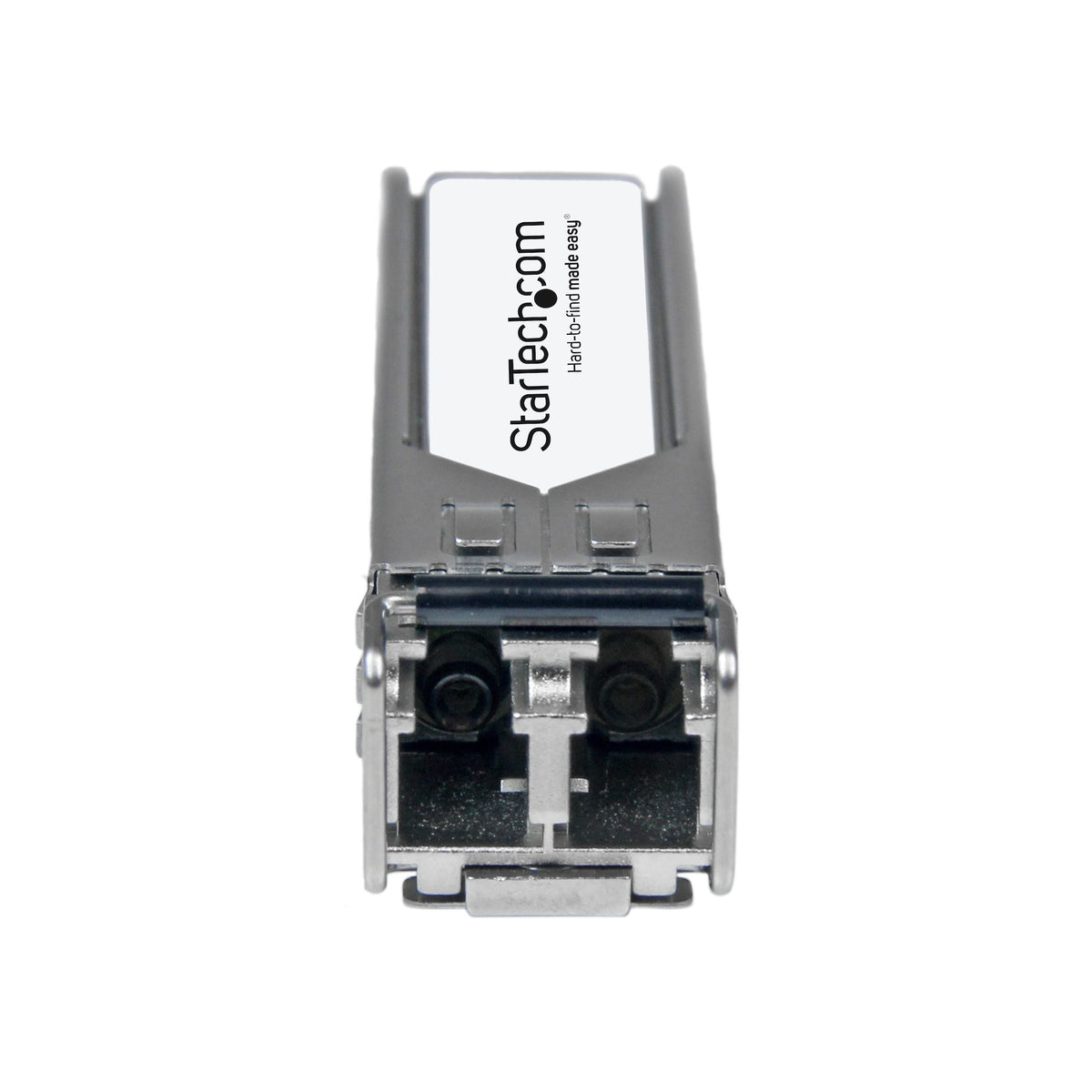

StarTech.com Palo Alto Networks PAN-SFP-PLUS-SR Compatible SFP+ Module, 10GBASE-SR, Multimode Fiber (MMF), 300m (984ft), LC, 850nm, 10 Gigabit Optic Transceiver
Product overview & specifications
StarTech Palo Alto Networks PAN-SFP-PLUS-SR Compatible SFP+ Module, 10GBASE-SR, MMF, 300m (984ft), LC, 850nm, 10G Transceiver
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Fiber ethernet cabling technology | 10GBASE |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | PLUS-SR |
| Mean time between failures (MTBF) | 498745585 h |
| Brand compatibility | Palo Alto Networks |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | PLUS-SR |
| Mean time between failures (MTBF) | 498745585 h |
| Brand compatibility | Palo Alto Networks |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.3 W |
| Certificates | |
| Certification | CE, FCC, UR |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 13.7 mm |
| Weight | 20 g |
| Package depth | 114 mm |
| Package width | 91 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 91 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Compatible products | PLUS-SR |
| Packaging data | |
| Package depth | 114 mm |
| Package width | 91 mm |
| Package height | 33 mm |
| Package weight | 50 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 91 mm |
| Master (outer) case length | 115 mm |
| Master (outer) case height | 33 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
