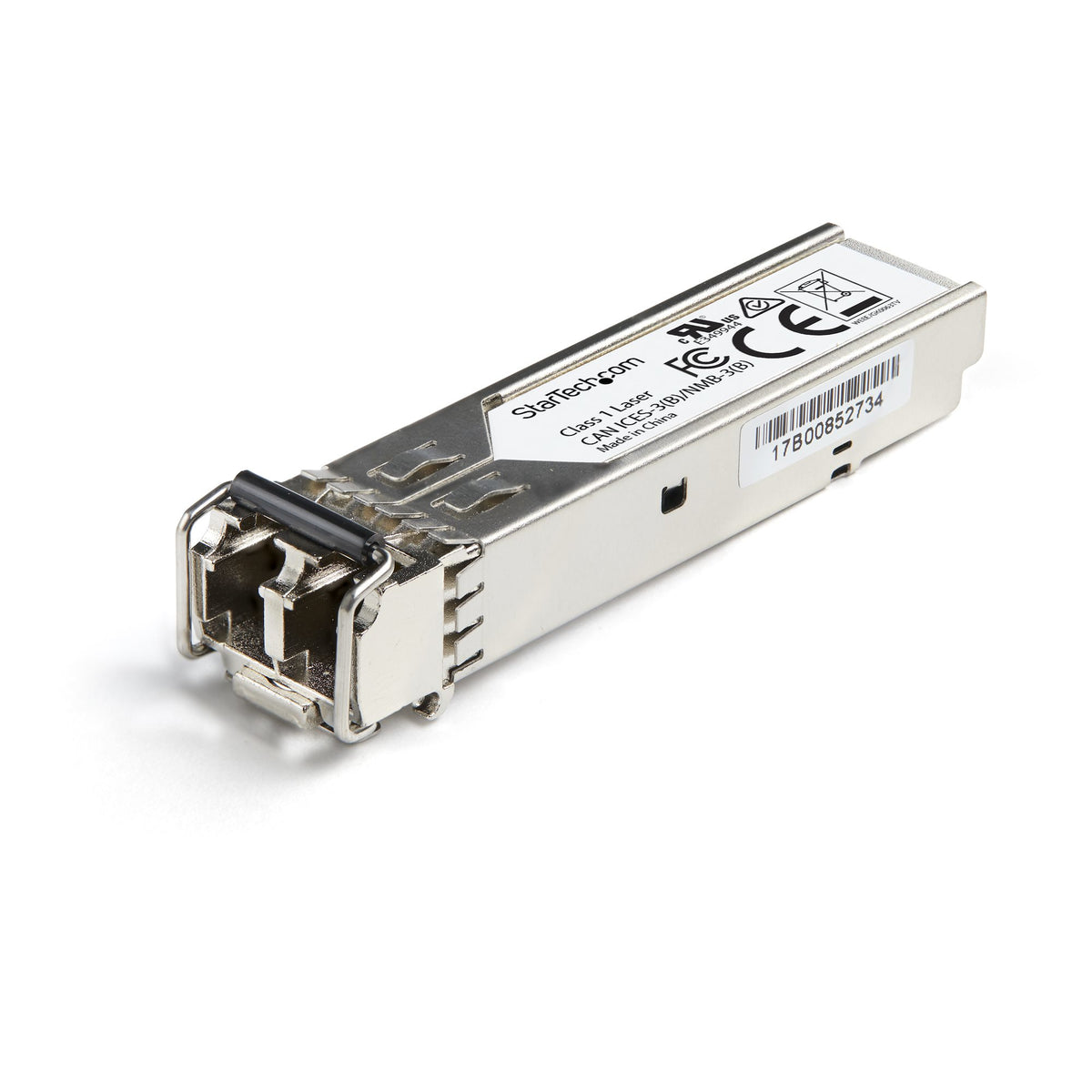

StarTech.com Dell EMC SFP-1G-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM
StarTech.com Dell EMC SFP-1G-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM

StarTech.com Dell EMC SFP-1G-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM

BrandStarTech.com
SKU / Part numberSFP1GSXEMCST
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
StarTech Dell EMC SFP-1G-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM (SFP1GSXEMCST)
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The SFP1GSXEMCST is a Dell EMC SFP-1G-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 500 m (1640 ft)).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Multi Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 53,972,659 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Performance
SFP transceiver type Fiber optic
Digital Diagnostics Monitoring (DDM) Yes
Fiber optic connector LC
Maximum transfer distance 550 m
Wavelength 850 nm
Duplex system Full
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SX
Fiber ethernet cabling technology 1000BASE
Country of origin China
Product colour Silver
Hot-swap Yes
Compatible products SFP-1G-SX
Mean time between failures (MTBF) 53972659 h
Brand compatibility Dell
Harmonized System (HS) code 85369010
Features
Product colour Silver
Hot-swap Yes
Compatible products SFP-1G-SX
Mean time between failures (MTBF) 53972659 h
Brand compatibility Dell
Country of origin China
Certification CE, FCC, UL, REACH
Certificates
Certification CE, FCC, UL, REACH
Compliance certificates RoHS
Network
SFP transceiver type Fiber optic
Fiber optic connector LC
Maximum data transfer rate 1000 Mbit/s
Interface type SFP
Weight & dimensions
Width 58.4 mm
Depth 13.9 mm
Height 12.6 mm
Weight 30 g
Package depth 114 mm
Package width 91 mm
Package height 33 mm
Package weight 50 g
Packaging content
Quantity per pack 1 pc(s)
Technical details
Package width 91 mm
Package height 33 mm
Hot-swap Yes
Maximum transfer distance 550 m
Wavelength 850 nm
Duplex system Full
Compatible products SFP-1G-SX
Compliance certificates RoHS
Packaging data
Package depth 114 mm
Package width 91 mm
Package height 33 mm
Package weight 50 g
Logistics data
Quantity per pack 1 pc(s)
Country of origin China
Master (outer) case width 91 mm
Master (outer) case length 115 mm
Master (outer) case height 33 mm
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85369010
