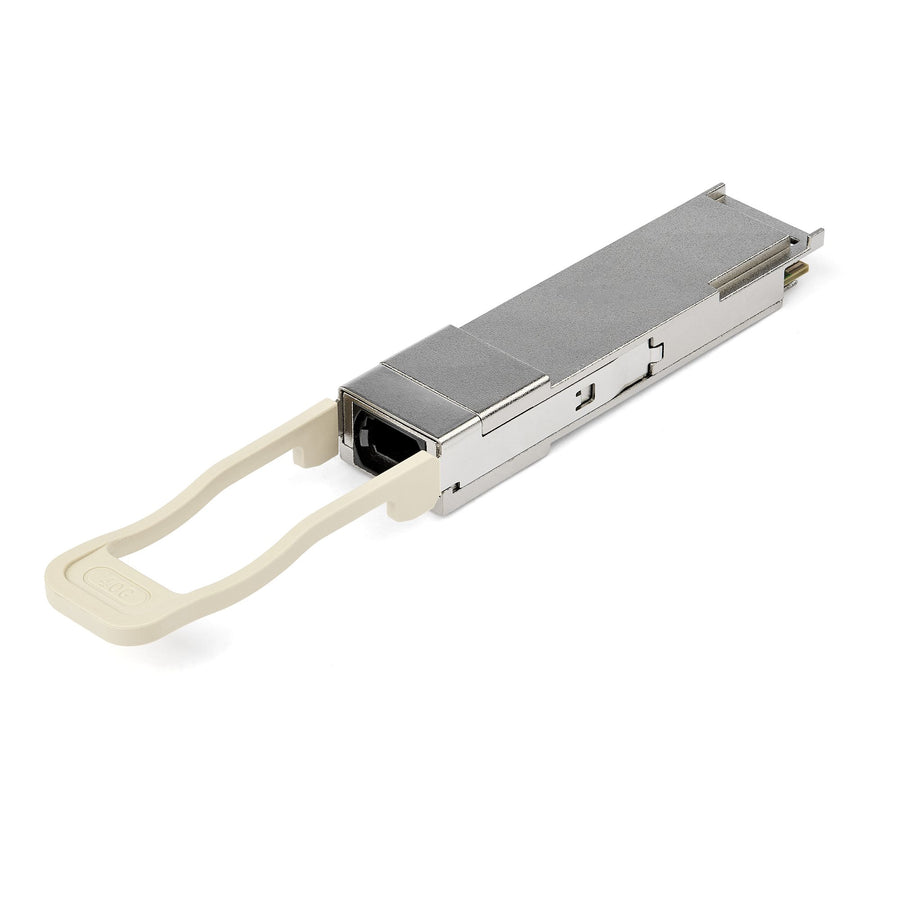

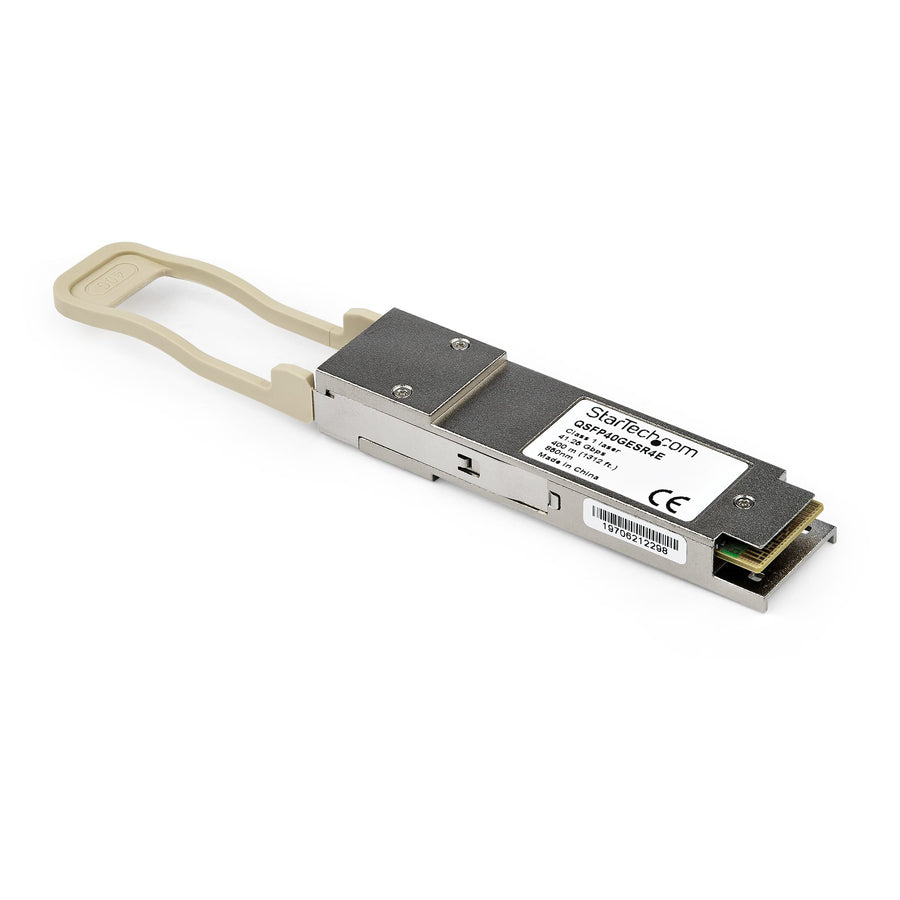

StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM

BrandStarTech.com
SKU / Part numberQSFP40GSR4ES
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM (QSFP40GSR4ES)
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

The QSFP40GSR4ES is a Dell EMC QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber

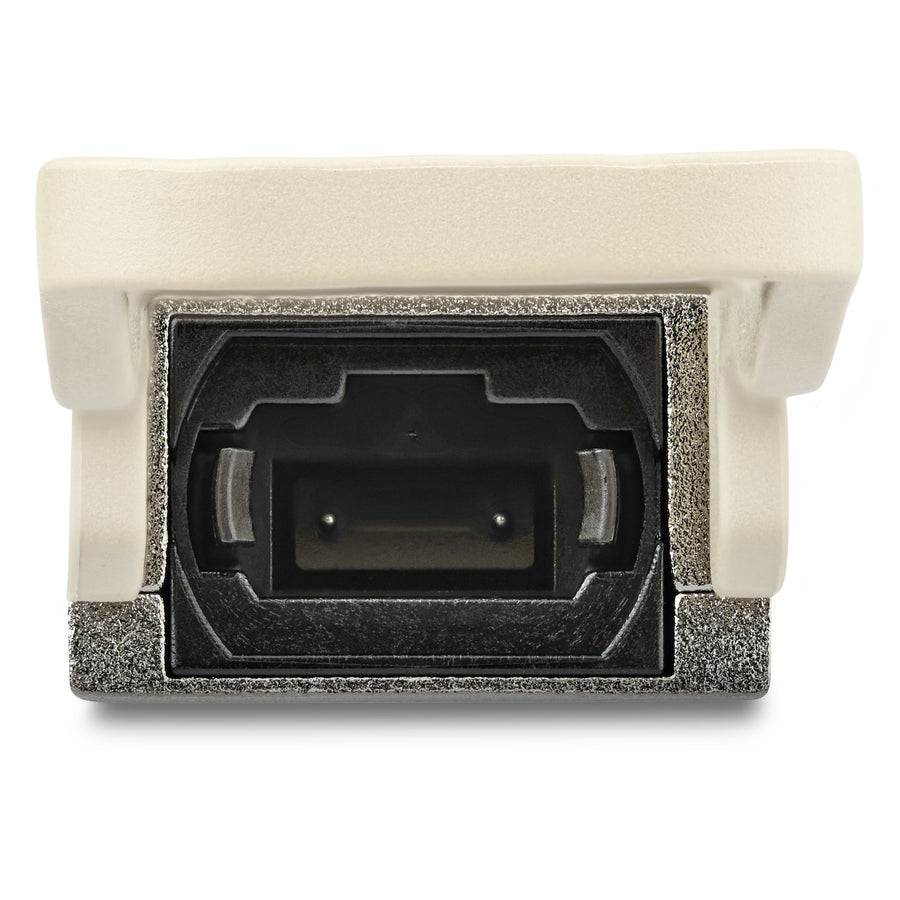

• Connection Type: MPO
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 45,017,120 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage
Performance
SFP transceiver type Fiber optic
Digital Diagnostics Monitoring (DDM) Yes
Fiber optic connector MPO
Maximum transfer distance 150 m
Wavelength 850 nm
Maximum data transfer rate 40000 Mbit/s
Interface type QSFP+
Multi-mode fiber (MMF) supported Yes
SFP transceiver standard SR4
Fiber ethernet cabling technology 40GBASE
Product colour Silver
Hot-swap Yes
Compatible products QSFP-40G-SR4
Mean time between failures (MTBF) 45017120 h
Brand compatibility Dell
Harmonized System (HS) code 85369010
Features
Product colour Silver
Hot-swap Yes
Compatible products QSFP-40G-SR4
Mean time between failures (MTBF) 45017120 h
Brand compatibility Dell
Certification CE, FCC, UL, REACH
Certificates
Certification CE, FCC, UL, REACH
Compliance certificates RoHS
Network
SFP transceiver type Fiber optic
Fiber optic connector MPO
Maximum data transfer rate 40000 Mbit/s
Interface type QSFP+
Weight & dimensions
Width 58.4 mm
Depth 13.9 mm
Height 12.6 mm
Weight 40 g
Package depth 350 mm
Package width 205 mm
Package height 120 mm
Package weight 60 g
Packaging content
Quantity per pack 1 pc(s)
Technical details
Package width 205 mm
Package height 120 mm
Hot-swap Yes
Maximum transfer distance 150 m
Wavelength 850 nm
Compatible products QSFP-40G-SR4
Compliance certificates RoHS
Packaging data
Package depth 350 mm
Package width 205 mm
Package height 120 mm
Package weight 60 g
Logistics data
Quantity per pack 1 pc(s)
Master (outer) case width 205 mm
Master (outer) case length 350 mm
Master (outer) case height 120 mm
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85369010
StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM

StarTech.com Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multimode Fiber MMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 150m - 850nm - DDM

£30.88
