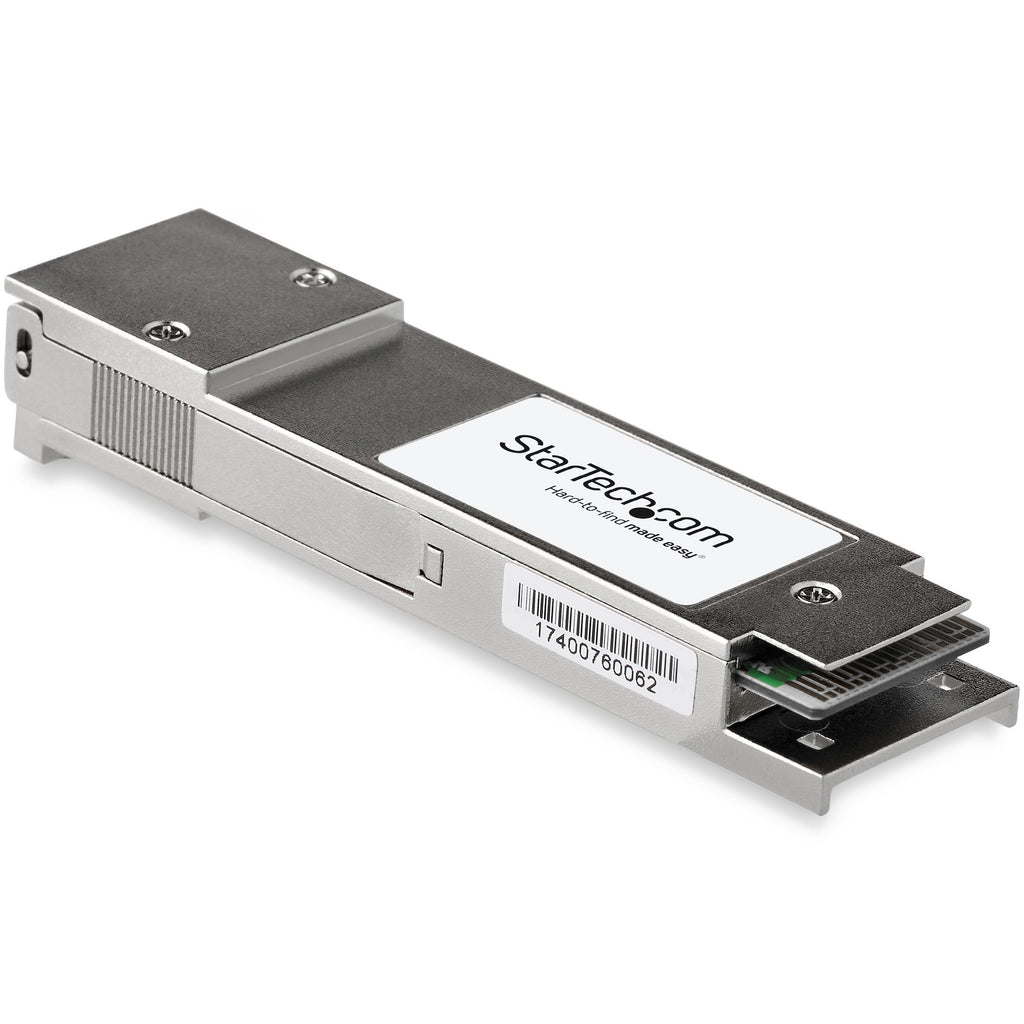

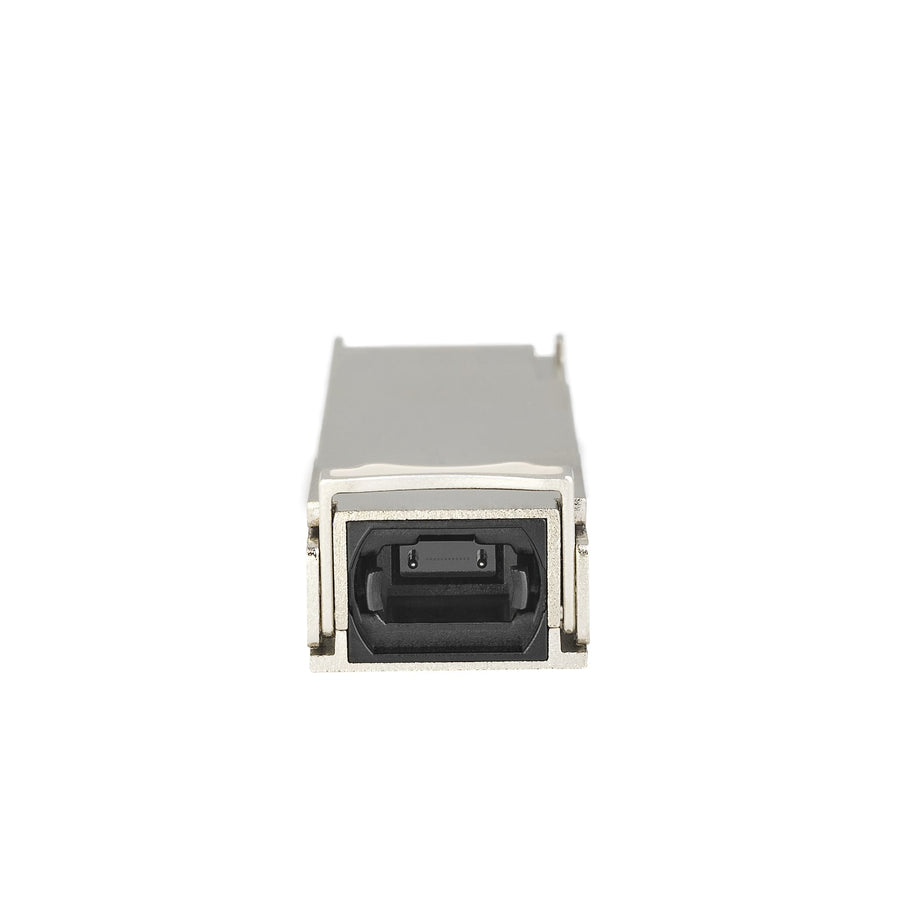

StarTech.com HPE 747698-B21 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 400m - 850nm - DDM HPE BladeSystem, c-Class
Product overview & specifications
StarTech.com HPE 747698-B21 Compatible QSFP+ Module - 40GBASE-SR4 - 40GbE MMF Optic Transceiver - 40GbE QSFP+ - MPO 400m - 850nm - DDM HPE BladeSystem, c-Class (747698-B21-ST)
40 Gbps | Multi Mode Fiber | MPO | 400 m (1312 ft.) | Lifetime Warranty
The 747698-B21-ST is a HPE 747698-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 400 m (1312 ft.).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 400 m (1312 ft.)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The 747698-B21-ST is a HPE 747698-B21 compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 400 m (1312 ft.).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 400 m (1312 ft.)
• MTBF: 244,610,583 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | MPO |
| Maximum transfer distance | 400 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR4 |
| Fiber ethernet cabling technology | 40GBASE |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | 747698-B21 |
| Mean time between failures (MTBF) | 244610583 h |
| Brand compatibility | HP |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | 747698-B21 |
| Mean time between failures (MTBF) | 244610583 h |
| Brand compatibility | HP |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Weight & dimensions | |
| Width | 122 mm |
| Depth | 18.6 mm |
| Height | 8.5 mm |
| Weight | 37.5 g |
| Package depth | 205 mm |
| Package width | 120 mm |
| Package height | 35 mm |
| Package weight | 60 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 120 mm |
| Package height | 35 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 400 m |
| Wavelength | 850 nm |
| Compatible products | 747698-B21 |
| Packaging data | |
| Package depth | 205 mm |
| Package width | 120 mm |
| Package height | 35 mm |
| Package weight | 60 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 120 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 35 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
