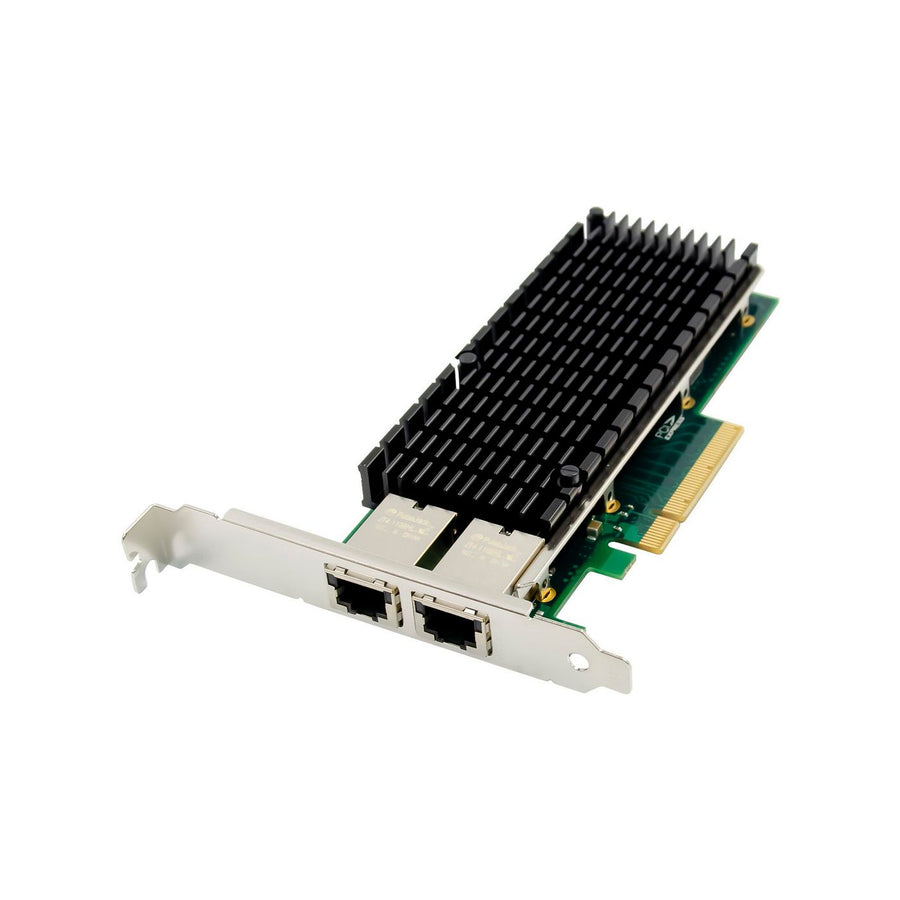

Microconnect MC-PCIE-X540 network card Internal Ethernet 10000 Mbit/s
Product overview & specifications
PCIe x8 Dual RJ45 10 GbE
X540BT2is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms.10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Network | |
| Chipset | Intel® X540 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10GBase-T |
| Networking standards | IEEE 802.1Q |
| Supported network protocols | CP/IP, UDP/IP, IPSec, iSCS |
| Ethernet LAN data rates | 10 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Green |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Green |
| Chipset | Intel® X540 |
| Certification | CE |
| Internal | Yes |
| LED indicators | Yes |
| Component for | Server |
| Software | |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2 |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD |
| Weight & dimensions | |
| Weight | 200 g |
| Package width | 224 mm |
| Package depth | 162 mm |
| Package height | 31 mm |
| Package weight | 288 g |
| Protocols | |
| Supported network protocols | CP/IP, UDP/IP, IPSec, iSCS |
| Packaging data | |
| Package width | 224 mm |
| Package depth | 162 mm |
| Package height | 31 mm |
| Package weight | 288 g |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Performance | |
| Server operating systems supported | Windows Server 2008 R2 |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Other operating systems supported | FreeBSD |
| Certificates | |
| Certification | CE |
| Other features | |
| Chipset | Intel® X540 |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
Microconnect MC-PCIE-X540 network card Internal Ethernet 10000 Mbit/s
£262.78
Skip to product information

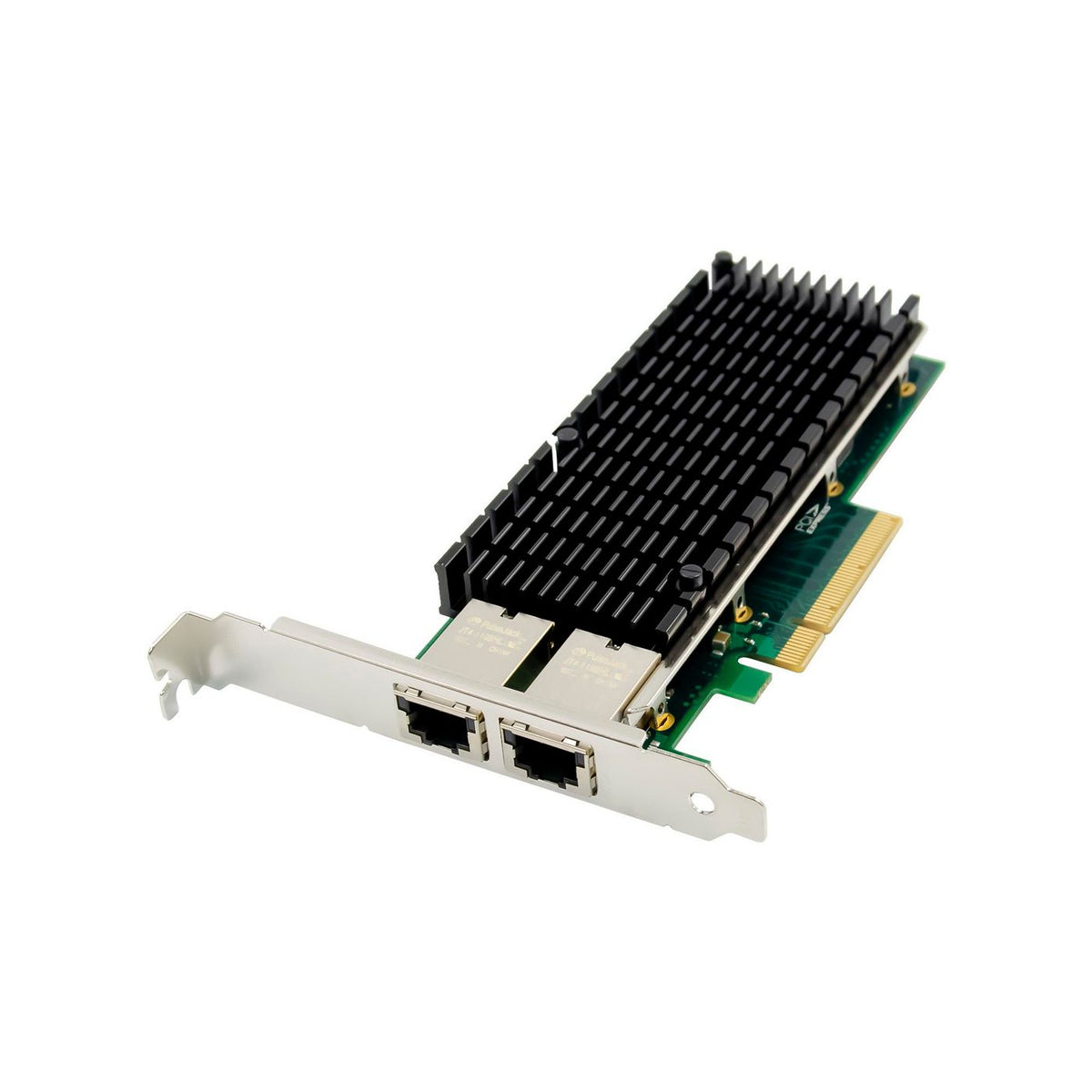

Microconnect MC-PCIE-X540 network card Internal Ethernet 10000 Mbit/s
