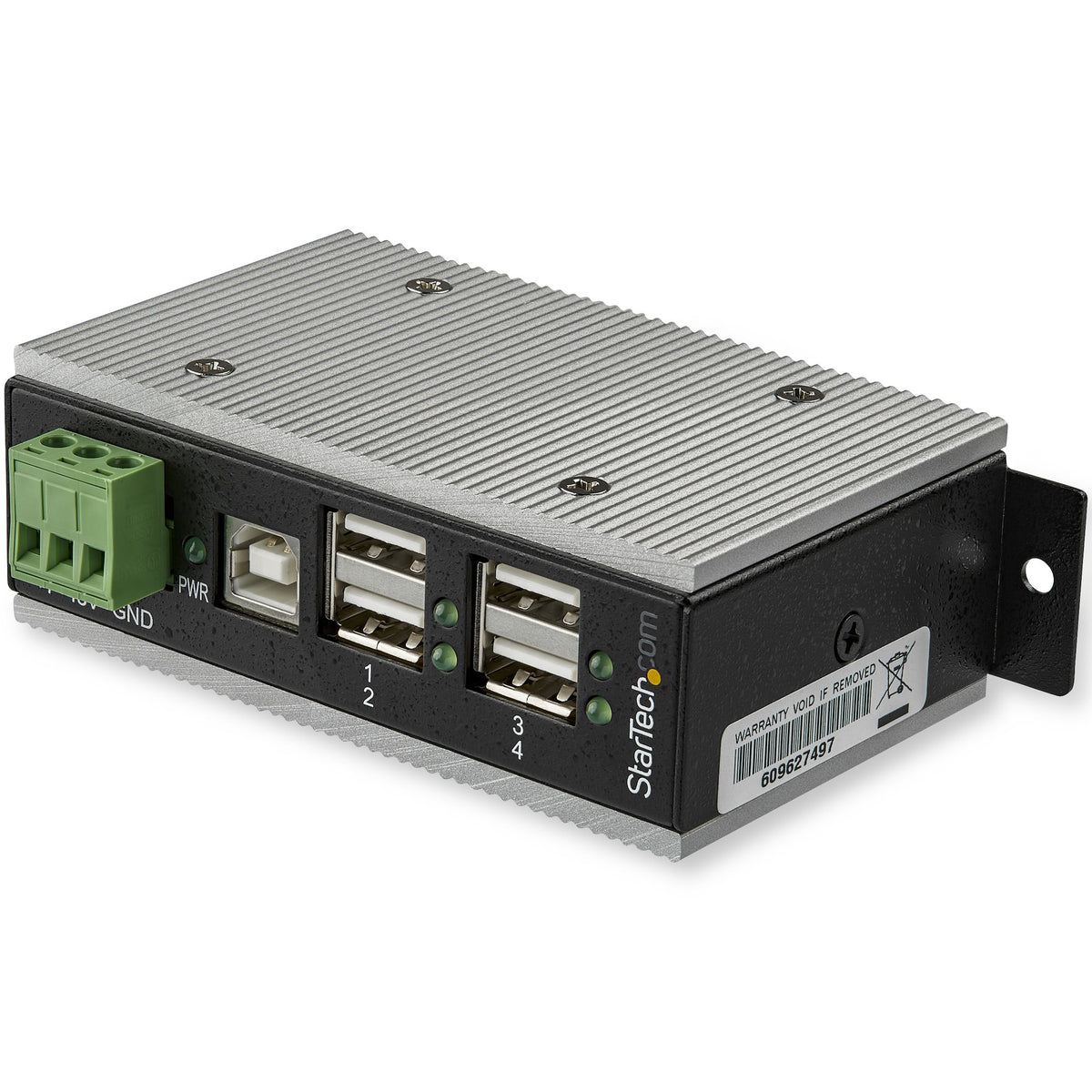

StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub - TAA
Product overview & specifications
StarTech 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub , TAA
Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A4AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A4AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 Type-B |
| Terminal block port | Yes |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| DC-in jack | No |
| Card reader integrated | No |
| Ports quantity | 4 |
| Features | |
| Surge protection | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Data transfer rate | 480 Mbit/s |
| Housing material | Metal |
| Host interface | USB 2.0 Type-B |
| Data transmission | |
| Data transfer rate | 480 Mbit/s |
| Power | |
| Input current | 2 A |
| Power consumption (typical) | 14 W |
| Input voltage | 7 - 48 V |
| Technical details | |
| Plug and Play | Yes |
| Product colour | Black |
| Performance | |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Card reader integrated | No |
| Surge protection | Yes |
| Plug and Play | Yes |
| Data transfer rate | 480 Mbit/s |
| Harmonized System (HS) code | 84719000 |
| Storage | |
| Card reader integrated | No |
| Weight & dimensions | |
| Weight | 292 g |
| Width | 55 mm |
| Depth | 95 mm |
| Height | 32 mm |
| Package width | 168 mm |
| Package depth | 244 mm |
| Package height | 55 mm |
| Package weight | 504 g |
| Packaging data | |
| Package width | 168 mm |
| Package depth | 244 mm |
| Package height | 55 mm |
| Package weight | 504 g |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| DIN rail kit included | Yes |
| Design | |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | CE, FCC, TAA, RoHS, REACH |
| Indication | |
| LED indicators | Power |
| Logistics data | |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | Genesys Logic - GL852GT |
