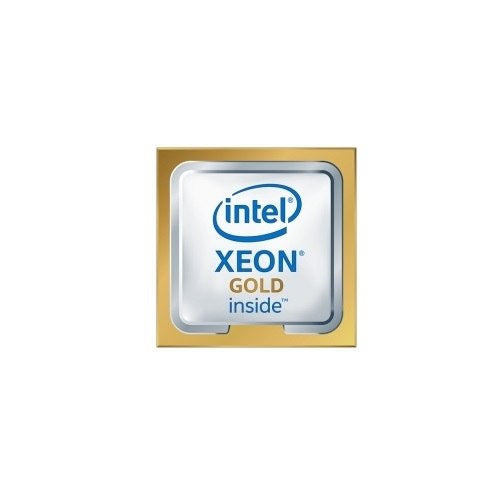

DELL Intel Xeon Gold 6132 processor 2.6 GHz 19.25 MB L3
Product overview & specifications
Intel Xeon Gold 6132, 2.6 GHz, 19.25 MB L3
The Intel Xeon® Gold 6132 2.60 GHz Fourteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Gold 6132 2.60 GHz Fourteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Gold 6132 2.60 GHz Fourteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
| Processor | |
|---|---|
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor base frequency | 2.6 GHz |
| Thermal Design Power (TDP) | 140 W |
| Processor cache | 19.25 MB |
| Processor model | 6132 |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Stepping | H0 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 14 |
| Processor socket | LGA 3647 (Socket P) |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| Power | |
| Thermal Design Power (TDP) | 140 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Scalability | S4S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 140 W |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | L3 |
| Features | |
| Maximum number of PCI Express lanes | 48 |
| Thermal Design Power (TDP) | 140 W |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Scalability | S4S |
| Embedded options available | No |
| Market segment | Server |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Operational conditions | |
| Tcase | 86 °C |
| Other features | |
| Compatibility | - PowerEdge R640 - PowerEdge M640 VRTX - PowerEdge MX840C - PowerEdge R740 - PowerEdge T640 - PowerEdge XR2 - PowerEdge R740XD - PowerEdge R440 - PowerEdge R840 - PowerEdge R940xa - PowerEdge R940 - PowerEdge FC640 - PowerEdge C6420 - PowerEdge M640 - PowerEdge C4140 - PowerEdge MX740C |
