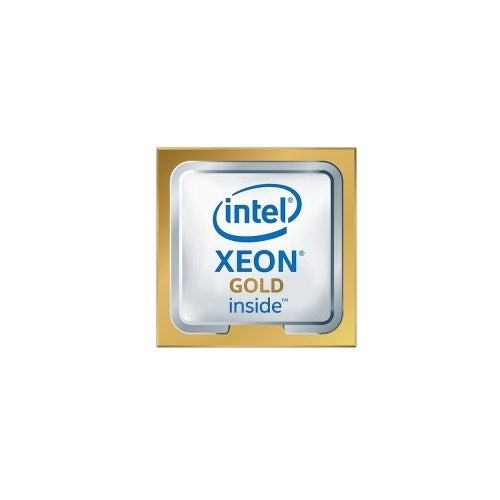

DELL Intel Xeon Gold 6142 processor 2.6 GHz 22 MB L3
Product overview & specifications
Intel Xeon Gold 6142M 16C 150W 2.6GHz
The Intel Xeon® Gold 6142 2.60 GHz Sixteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Gold 6142 2.60 GHz Sixteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Gold 6142 2.60 GHz Sixteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
| Processor | |
|---|---|
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor base frequency | 2.6 GHz |
| Thermal Design Power (TDP) | 150 W |
| Processor cache | 22 MB |
| Processor model | 6142 |
| Processor threads | 32 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Stepping | H0 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® Gold |
| Processor cores | 16 |
| Processor socket | LGA 3647 (Socket P) |
| Processor series | Intel Xeon Gold 6000 Series |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 1.5 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| Power | |
| Thermal Design Power (TDP) | 150 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | S4S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 150 W |
| Processor series | Intel Xeon Gold 6000 Series |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | L3 |
| Features | |
| Maximum number of PCI Express lanes | 48 |
| Thermal Design Power (TDP) | 150 W |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | S4S |
| Embedded options available | No |
| Market segment | Server |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel TSX-NI | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Operational conditions | |
| Tcase | 85 °C |
| Other features | |
| Compatibility | - PowerEdge M640 - PowerEdge M640 VRTX - PowerEdge C4140 - PowerEdge R640 - PowerEdge R740 - PowerEdge C6420 - PowerEdge R840 - PowerEdge R740XD - PowerEdge R940 - PowerEdge FC640 - PowerEdge R940xa |
