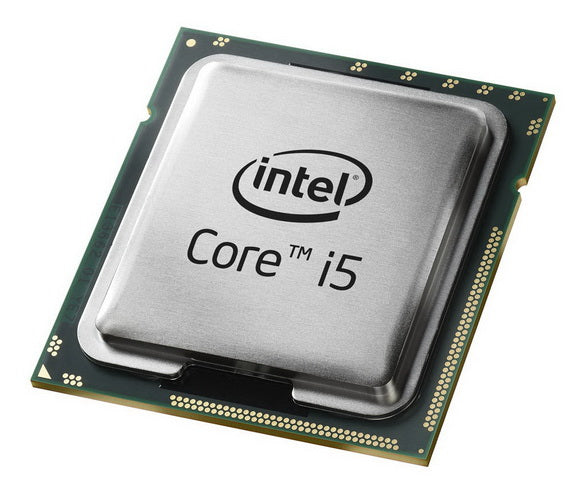

HP Intel Core i5-480M processor 2.66 GHz 3 MB L3 Tray

BrandHP
SKU / Part number634693-001
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
Intel® Core™ i5-480M Processor (3M Cache, 2.66 GHz)
The previous generation Intel® Core™ i5 processor automatically allocates processing power where it's needed most,¹ performance that accelerates in response to demanding tasks. Whether you’re creating HD video, composing digital music, editing photos, or playing the coolest PC games—with the Intel Core i5 processor you can multitask with ease and be more productive than ever.

Intel® Turbo Boost Technology maximizes speed for demanding applications, dynamically accelerating performance to match your workload—more performance when you need it the most.

Intel® Hyper-Threading Technology (Intel® HT Technology)² delivers two processing threads per physical core for a total of four threads for massive computational throughput. This 4-way multi-task processing allows each core of your processor to work on two tasks at the same time. Available on Intel® Core™ i5-600 processor series.

Intel® HD Graphics provides superb visual performance for sharper images, richer color, and life-like video and audio. Available on Intel Core i5-600 processor series.

Intel® Smart Cache is a shared cache dynamically allocated to each processor core, based on workload. This efficient, optimized implementation increases the probability that each core can access data from the fast cache, significantly reducing latency to frequently used data and improving performance. Optimized for industry-leading multi-threaded games.
Processor
Processor generation Intel® Core™ i5
Processor base frequency 2.66 GHz
Memory bandwidth supported by processor (max) 17.1 GB/s
Thermal Design Power (TDP) 35 W
Processor cache 3 MB
Processor model i5-480M
Processor threads 4
System bus rate 2.5 GT/s
Processor operating modes 64-bit
Processor boost frequency 2.933 GHz
Stepping K0
Processor lithography 32 nm
Processor family Intel® Core™ i5
Processor cores 2
Processor cache type L3
Package type Tray
Memory
Maximum internal memory supported by processor 8 GB
Memory types supported by processor DDR3-SDRAM
Memory clock speeds supported by processor 800,1066 MHz
Memory bandwidth supported by processor (max) 17.1 GB/s
Memory channels Dual-channel
ECC No
Graphics
Number of displays supported (on-board graphics) 2
On-board graphics card model Intel® HD Graphics
On-board graphics card Yes
On-board graphics card dynamic frequency (max) 766 MHz
On-board graphics card base frequency 500 MHz
Power
Thermal Design Power (TDP) 35 W
Technical details
Thermal Monitoring Technologies Yes
Intel® Turbo Boost Technology Yes
Intel Trusted Execution Technology No
Intel® Smart Cache Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel Flex Memory Access Yes
Intel FDI Technology Yes
Intel Fast Memory Access Yes
Intel® Clear Video HD Technology (Intel® CVT HD) Yes
Intel® AES New Instructions (Intel® AES-NI) No
Idle States Yes
Execute Disable Bit Yes
Enhanced Intel SpeedStep Technology Yes
Intel® Virtualization Technology (Intel® VT) VT-x
PCI Express slots version 2.0
PCI Express configurations 1x16
Number of Processing Die Transistors 382 M
Processing Die size 81 mm²
Number of Graphics & IMC Die Transistors 177 M
Graphics & IMC Die Size 114 mm²
Supported instruction sets SSE4.1, SSE4.2
Intel VT-x with Extended Page Tables (EPT) Yes
Graphics & IMC lithography 45 nm
Embedded options available No
Thermal Design Power (TDP) 35 W
Intel Virtualization Technology (VT-x) Yes
Processor cache type L3
Features
Maximum number of PCI Express lanes 16
Thermal Design Power (TDP) 35 W
Thermal Monitoring Technologies Yes
Idle States Yes
Execute Disable Bit Yes
PCI Express slots version 2.0
PCI Express configurations 1x16
Number of Processing Die Transistors 382 M
Processing Die size 81 mm²
Number of Graphics & IMC Die Transistors 177 M
Graphics & IMC Die Size 114 mm²
Supported instruction sets SSE4.1, SSE4.2
Graphics & IMC lithography 45 nm
Embedded options available No
Processor special features
Intel® Turbo Boost Technology Yes
Intel Trusted Execution Technology No
Intel® Smart Cache Yes
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel Flex Memory Access Yes
Intel FDI Technology Yes
Intel Fast Memory Access Yes
Intel® Clear Video HD Technology (Intel® CVT HD) Yes
Intel® AES New Instructions (Intel® AES-NI) No
Enhanced Intel SpeedStep Technology Yes
Intel® Virtualization Technology (Intel® VT) VT-x
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Virtualization Technology (VT-x) Yes
Intel® vPro™ Platform Eligibility No
Operational conditions
Tjunction 105 °C
Packaging data
Package type Tray
Other features
Intel® Virtualization Technology (Intel® VT) VT-x
HP Intel Core i5-480M processor 2.66 GHz 3 MB L3 Tray
