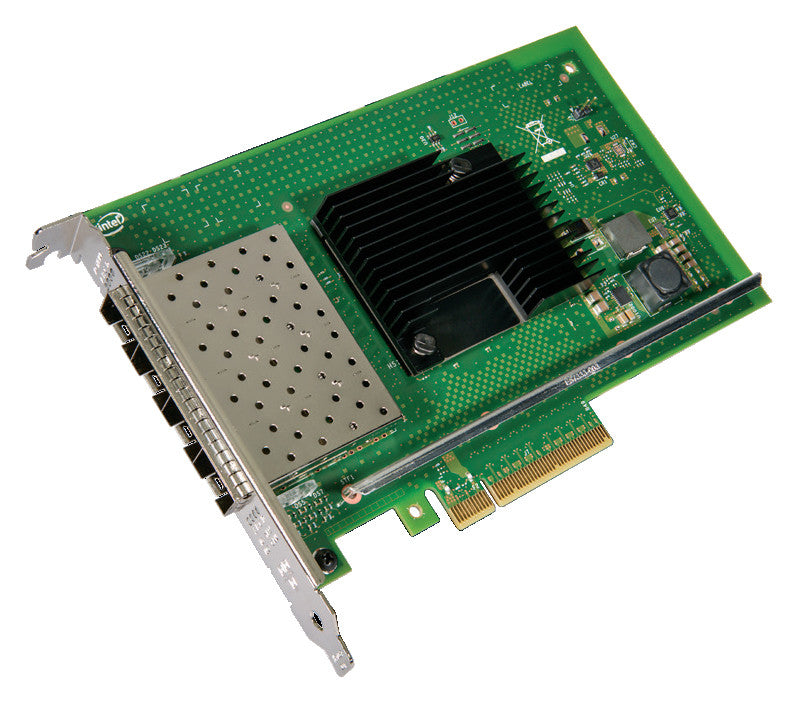

Lenovo 7XC7A05525 network card Internal Fiber 10000 Mbit/s
Product overview & specifications
Intel X710-DA4 4 x 10Gb SFP+ Adapter
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems (now withdrawn).
The Intel X710 family of 10 Gigabit Ethernet (GbE) server network adapters addresses the demanding needs of the next-generation data center. By providing unmatched features for server and network virtualization, small packet performance, and low power; the data center network is flexible, scalable, and resilient.
The X710 is available in three host connections: a standard PCIe host interface, a Mezzanine LOM (ML2) host interface for ThinkSystem and System x servers, and an AnyFabric host interface for ThinkServer systems (now withdrawn).
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Compatible products | ST50 (7Y48/7Y50) ST250 (7Y45/7Y46) SR150 (7Y54) SR250 (7Y51/7Y52) x3550 M5 (8869) x3650 M5 (8871) |
| Product colour | Green |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
| Compatible products | ST50 (7Y48/7Y50) ST250 (7Y45/7Y46) SR150 (7Y54) SR250 (7Y51/7Y52) x3550 M5 (8869) x3650 M5 (8871) |
| Product colour | Green |
| Certification | EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1 |
| Internal | Yes |
| Component for | Server |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 80% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 55 °C |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 167 mm |
| Height | 111 mm |
| Performance | |
| Compatible products | ST50 (7Y48/7Y50) ST250 (7Y45/7Y46) SR150 (7Y54) SR250 (7Y51/7Y52) x3550 M5 (8869) x3650 M5 (8871) |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Certificates | |
| Certification | EN55022 EN55024 EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 FCC 47 CFR Part 15 Class A VCCI AS/NZS CISPR 22 / C-tick RRL for KC BSMI UL 94 V-1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 55 °C |
