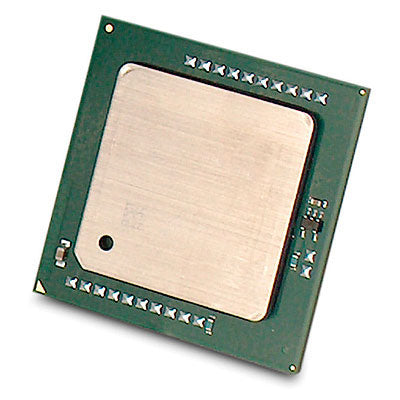

HP Intel Xeon E3-1225 v6 processor 3.3 GHz 8 MB L3
Product overview & specifications
Intel Xeon E3-1225 v6, 8M Cache, 3.3 GHz, 8 GT/s DMI3
Options, accessories, services and support for all your HP and Compaq products.
| Processor | |
|---|---|
| Processor base frequency | 3.3 GHz |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Thermal Design Power (TDP) | 73 W |
| Processor cache | 8 MB |
| Processor model | E3-1225 v6 |
| Processor threads | 4 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.55 - 1.52 V |
| Processor boost frequency | 3.7 GHz |
| Stepping | B0 |
| Bus type | DMI3 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® E3 v6 |
| Processor cores | 4 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor series | Intel Xeon E3-1200 v6 |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 73 W |
| VID Voltage Range | 0.55 - 1.52 V |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 73 W |
| Processor series | Intel Xeon E3-1200 v6 |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | L3 |
| Features | |
| Maximum number of PCI Express lanes | 16 |
| Thermal Design Power (TDP) | 73 W |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Market segment | Server |
| Processor special features | |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Other features | |
| CPU configuration (max) | 1 |
HP Intel Xeon E3-1225 v6 processor 3.3 GHz 8 MB L3
£492.66
