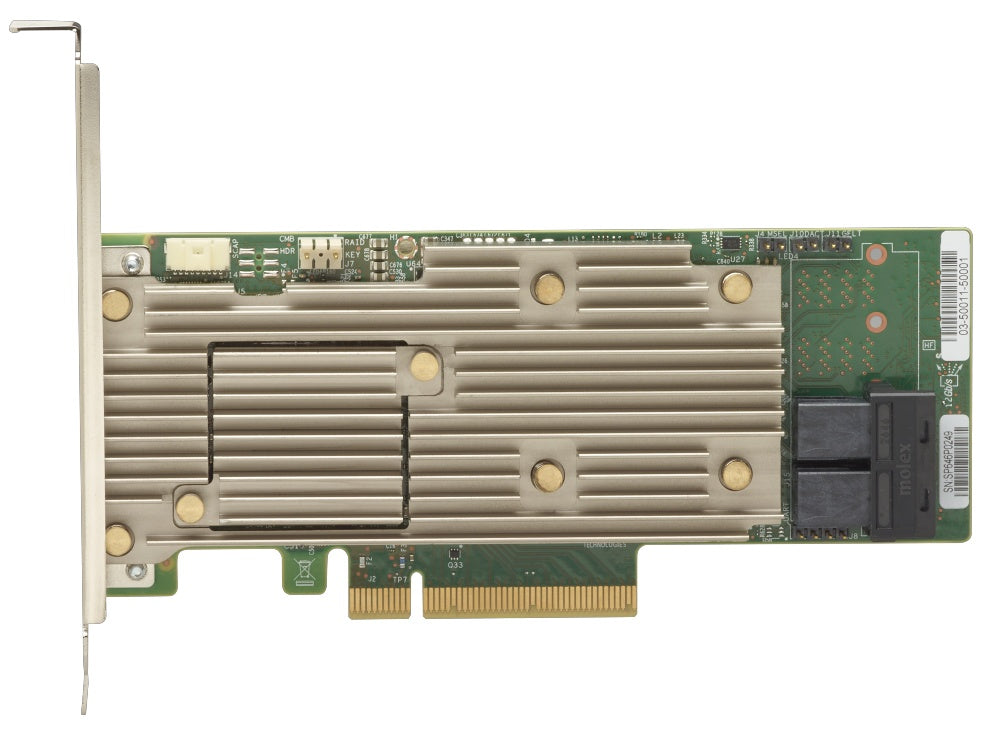

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s
Product overview & specifications
RAID 930-8i, PCIe 3.0 x8, 8x 12 Gb SAS, 2x Mini-SAS HD x4
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA III |
| External SAS ports | 8 |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Internal mini-SAS HD ports | 2 |
| Performance | |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| SSD support | Yes |
| Chipset | LSI SAS3508 |
| S.M.A.R.T. support | Yes |
| RAID Level Migration | Yes |
| Online Capacity Expansion | Yes |
| Number of devices supported | 8 |
| Data transfer rate | 12000 Gbit/s |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| Hot-swap | Yes |
| Harmonized System (HS) code | 84733080 |
| Data transmission | |
| Data transfer rate | 12000 Gbit/s |
| Technical details | |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| SSD support | Yes |
| Chipset | LSI SAS3508 |
| S.M.A.R.T. support | Yes |
| RAID Level Migration | Yes |
| Online Capacity Expansion | Yes |
| Number of devices supported | 8 |
| Compatible operating systems | Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Hot-swap | Yes |
| Certificates | |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| System requirements | |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12 |
| Compatible operating systems | Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| PCI Card form factor | Full-height (low-profile) |
| Compatible operating systems | Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
