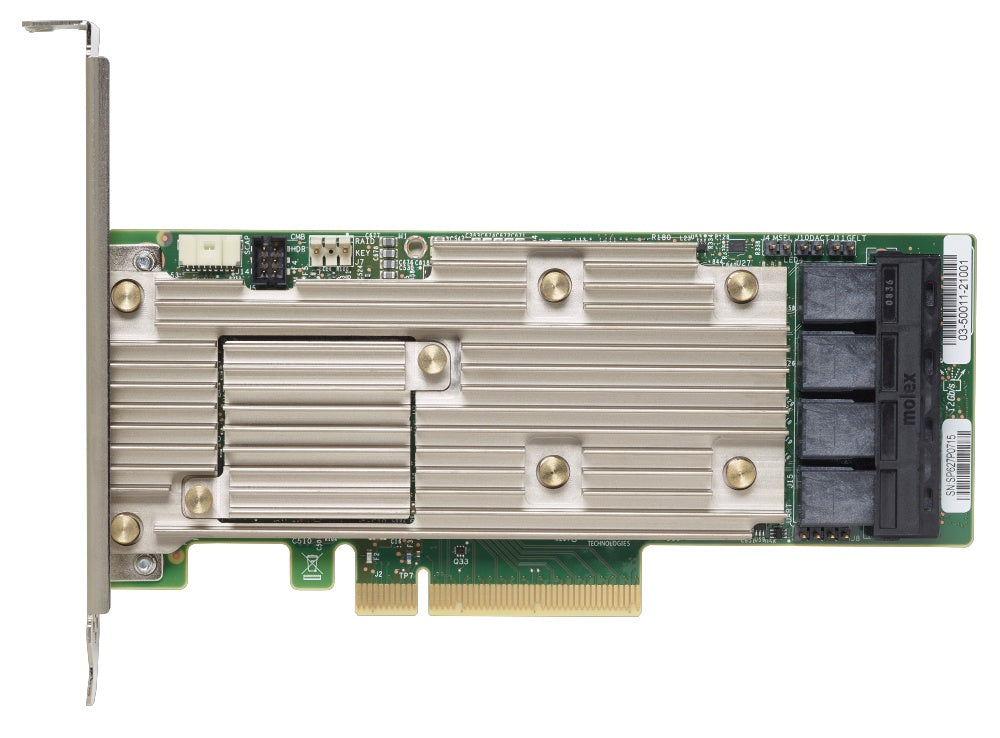

Lenovo 7Y37A01085 RAID controller PCI Express x8 3.0 12000 Gbit/s
Product overview & specifications
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA III |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Internal mini-SAS HD ports | 4 |
| Memory | |
| Internal memory | 4000 MB |
| Performance | |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Internal memory | 4000 MB |
| SSD support | Yes |
| Chipset | LSI SAS3516 |
| Processor family | LSI |
| S.M.A.R.T. support | Yes |
| RAID Level Migration | Yes |
| Online Capacity Expansion | Yes |
| Number of devices supported | 16 |
| Data transfer rate | 12000 Gbit/s |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| Built-in processor | Yes |
| Hot-swap | Yes |
| Compatible products | ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950 |
| Harmonized System (HS) code | 84733080 |
| Data transmission | |
| Data transfer rate | 12000 Gbit/s |
| Technical details | |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| SSD support | Yes |
| Chipset | LSI SAS3516 |
| S.M.A.R.T. support | Yes |
| RAID Level Migration | Yes |
| Online Capacity Expansion | Yes |
| Number of devices supported | 16 |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Hot-swap | Yes |
| Processor | |
| Processor family | LSI |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| PCI Card form factor | Full-height (low-profile) |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
Lenovo 7Y37A01085 RAID controller PCI Express x8 3.0 12000 Gbit/s
£459.10
Skip to product information
Lenovo 7Y37A01085 RAID controller PCI Express x8 3.0 12000 Gbit/s
£459.10
ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA III |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Internal mini-SAS HD ports | 4 |
| Memory | |
| Internal memory | 4000 MB |
| Performance | |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Internal memory | 4000 MB |
| SSD support | Yes |
| Chipset | LSI SAS3516 |
| Processor family | LSI |
| S.M.A.R.T. support | Yes |
| RAID Level Migration | Yes |
| Online Capacity Expansion | Yes |
| Number of devices supported | 16 |
| Data transfer rate | 12000 Gbit/s |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| Built-in processor | Yes |
| Hot-swap | Yes |
| Compatible products | ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950 |
| Harmonized System (HS) code | 84733080 |
| Data transmission | |
| Data transfer rate | 12000 Gbit/s |
| Technical details | |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| SSD support | Yes |
| Chipset | LSI SAS3516 |
| S.M.A.R.T. support | Yes |
| RAID Level Migration | Yes |
| Online Capacity Expansion | Yes |
| Number of devices supported | 16 |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Hot-swap | Yes |
| Processor | |
| Processor family | LSI |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| System requirements | |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| PCI Card form factor | Full-height (low-profile) |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5 |
