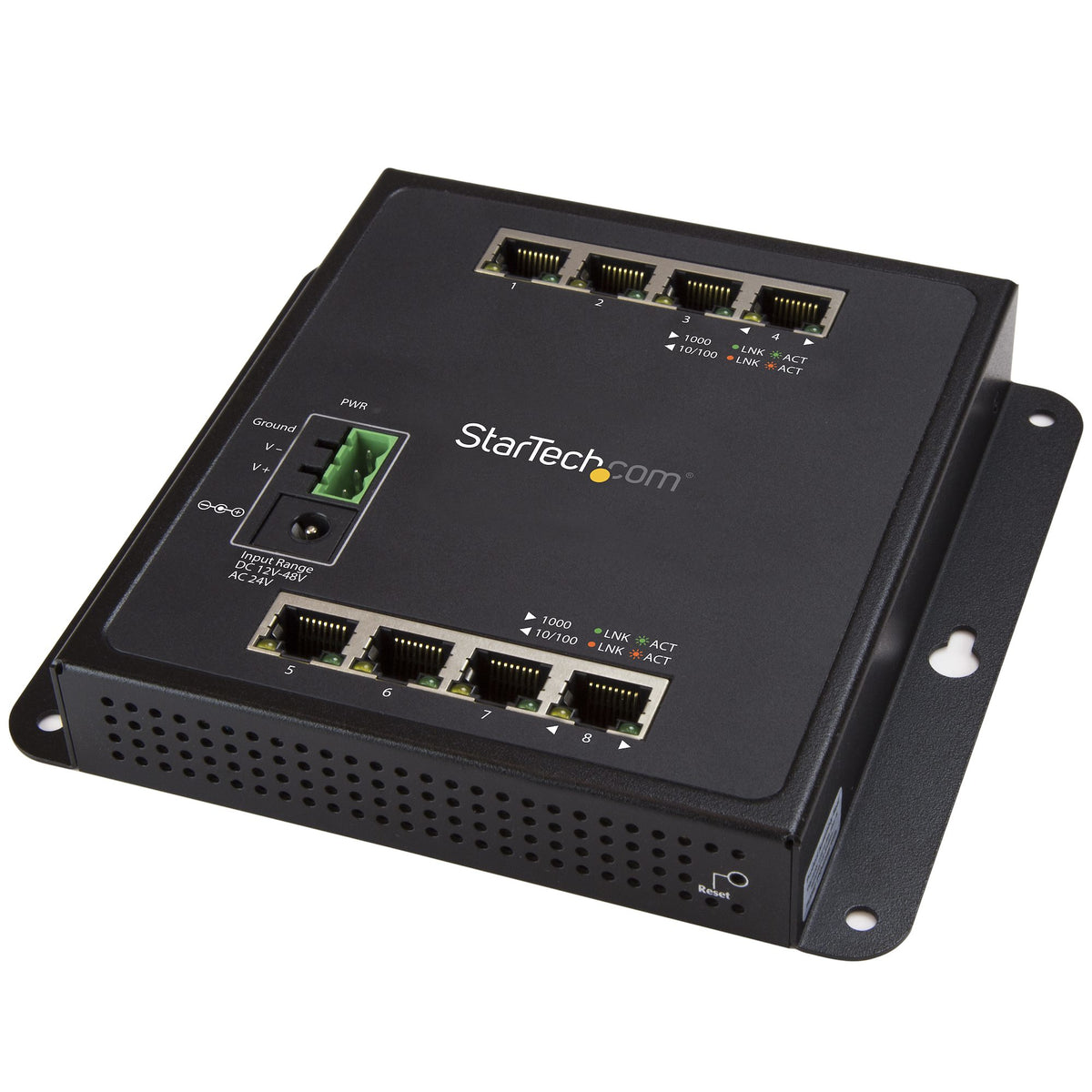

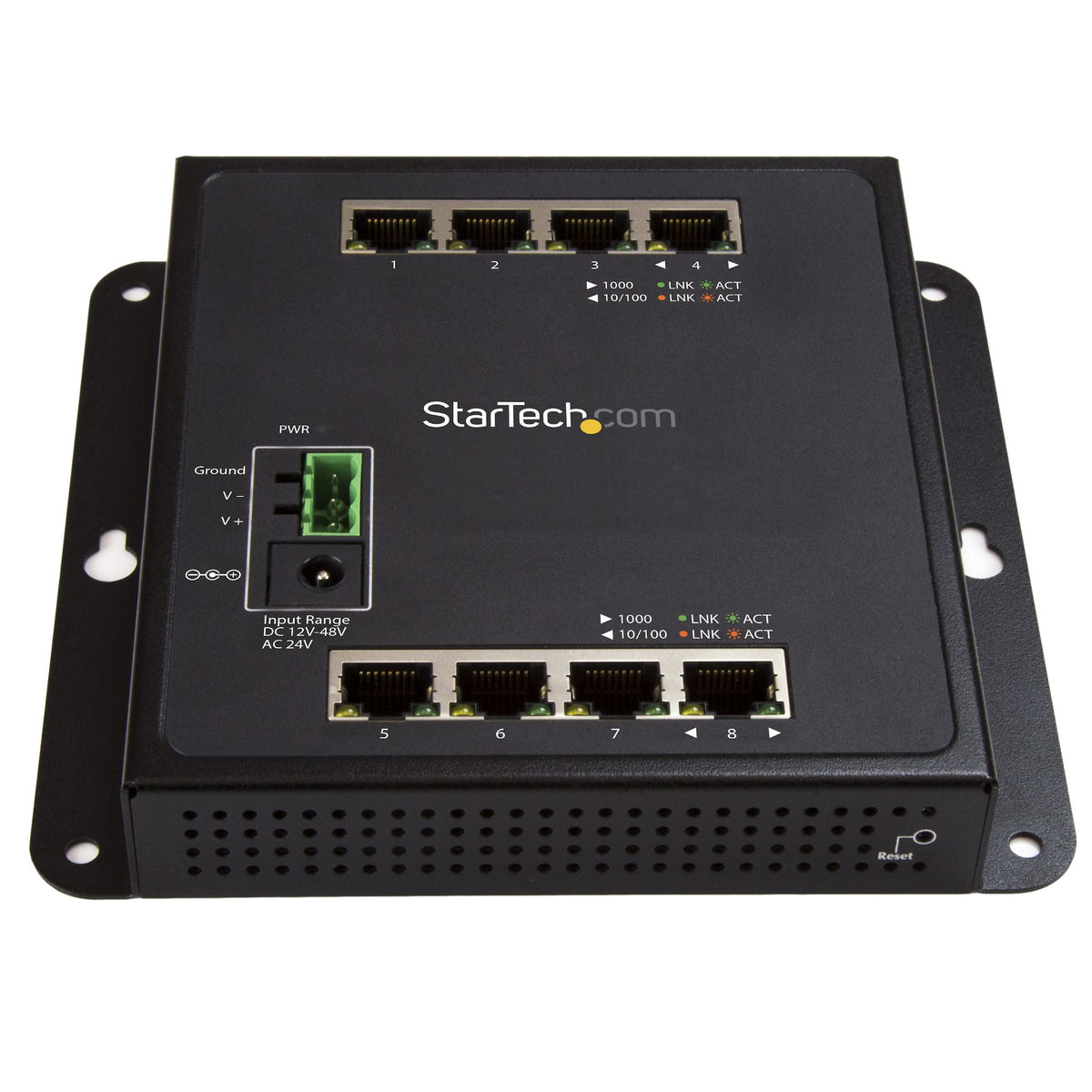

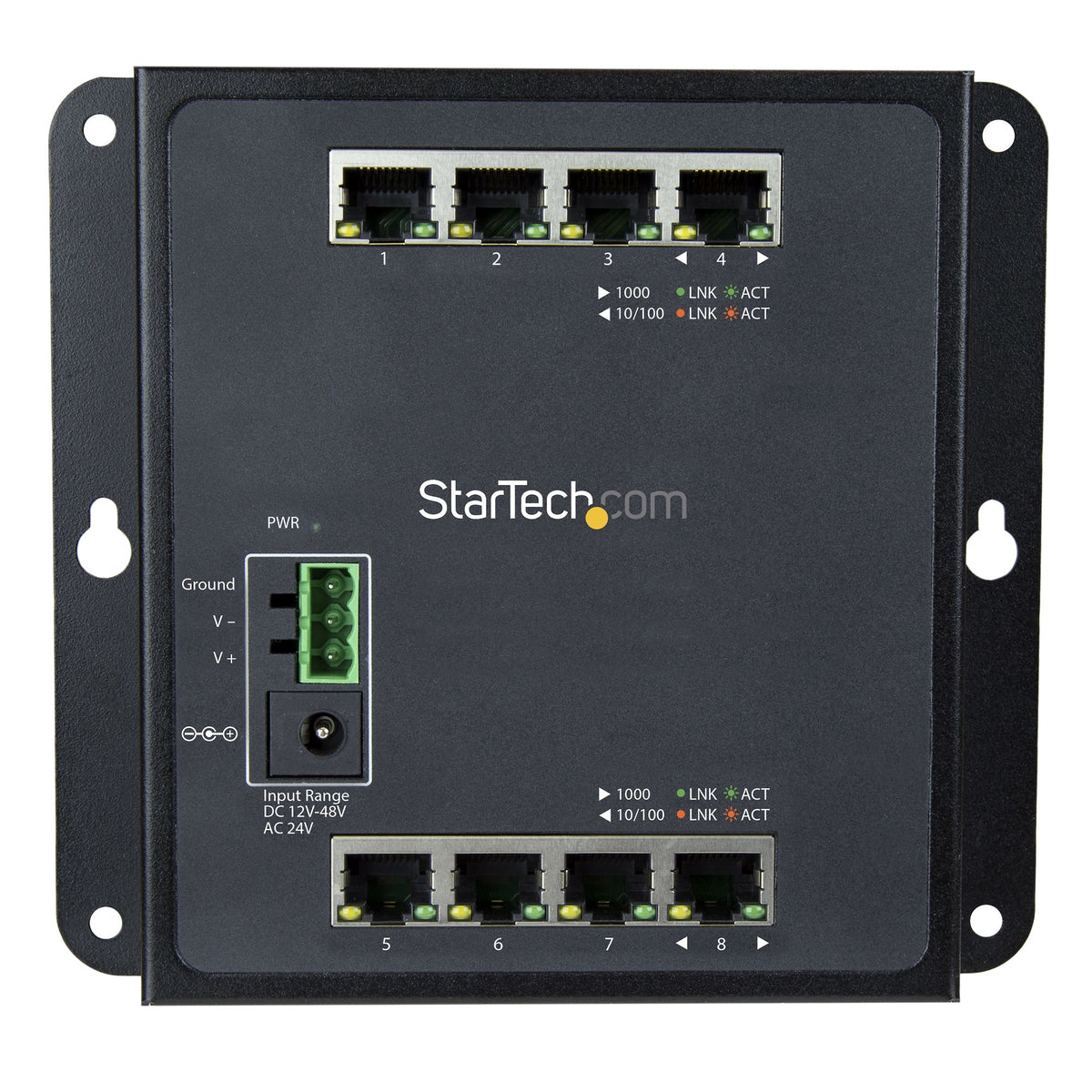

StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp

BrandStarTech.com
SKU / Part numberIES81GW
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp (IES81GW)
Industrial Managed Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | Wall-MountableAdd eight copper Gigabit Ethernet (GbE) connections with this 8-port Gigabit Ethernet switch, making it easy to deploy or scale your existing network.Expand Your NetworkThis versatile GbE switch adapts to your network needs by adding eight RJ45 Ethernet ports. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Intelligent Layer 2 ManagementThis Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network and customizes settings to achieve optimal network performance.Reliable Network Performance✔ 10/100/1000 Mbps transfer speeds✔ Jumbo frames✔ Redundant 12-58V DC terminal block✔ Full/half-duplex auto-negotiation✔ Auto MDI/MDIX operation✔ IPv4 and IPv6 dual stack management✔ Link aggregation✔ VLAN tagging✔ Spanning tree protocolCompact, Mountable and Rugged DesignAt only 5.3 x 5.8 inches and 1.08 lb., it is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference while still providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh industrial environments.StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations. This wall-mount Ethernet switch is backed by a 2-year warranty and free lifetime North American based Technical Support.The StarTech.com Advantage
Ports & interfaces
Terminal block port Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TX
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Virtual LAN features
Virtual LAN features Tagged VLAN
Power
Power connector DC-in jack
Output voltage 12 V
Power plug type Type M
Output current 1.5 A
Power supply included Yes
DC input voltage 12 - 48 V
Technical details
Product colour Black
Mean time between failures (MTBF) 100000 h
Housing material Steel
Rack mounting No
Management features
Switch type Managed
Switch layer L2
Network
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TX
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Full duplex Yes
Spanning tree protocol Yes
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Virtual LAN features Tagged VLAN
Data transmission
Jumbo frames 9000
Store-and-forward Yes
Jumbo frames support Yes
Security
Access Control List (ACL) Yes
Protocols
Management protocols IPv4, IPv6
Certificates
Certification CE, FCC, RoHS, TAA
Design
Wall mountable Yes
International Protection (IP) code IP30
Product colour Black
LED indicators Activity, Link, Power
Housing material Steel
Certification CE, FCC, RoHS, TAA
Rack mounting No
Performance
Maximum data transfer rate 2000 Mbit/s
Maximum cable length 100 m
Buffer size 512 KB
Plug and Play Yes
Mean time between failures (MTBF) 100000 h
Harmonized System (HS) code 85176990
Indication
LED indicators Activity, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -40 - 90 °C
Operating temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 148 mm
Depth 134 mm
Height 25 mm
Weight 490 g
Packaging data
Terminal block included Yes
AC adapter included Yes
Washers included Yes
Screws included Yes
Pinlock included Yes
Dust cap included Yes
DIN rail included Yes
Quick start guide Yes
Package width 170 mm
Package depth 300 mm
Package height 90 mm
Package weight 1 kg
Logistics data
Master (outer) case width 480 mm
Master (outer) case length 420 mm
Master (outer) case height 365 mm
Products per master (outer) case 10 pc(s)
Other features
Terminal block port Yes
Packaging content
Terminal block included Yes
AC adapter included Yes
Washers included Yes
Screws included Yes
Pinlock included Yes
Dust cap included Yes
DIN rail included Yes
Quick start guide Yes
StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp

StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp

£270.72
