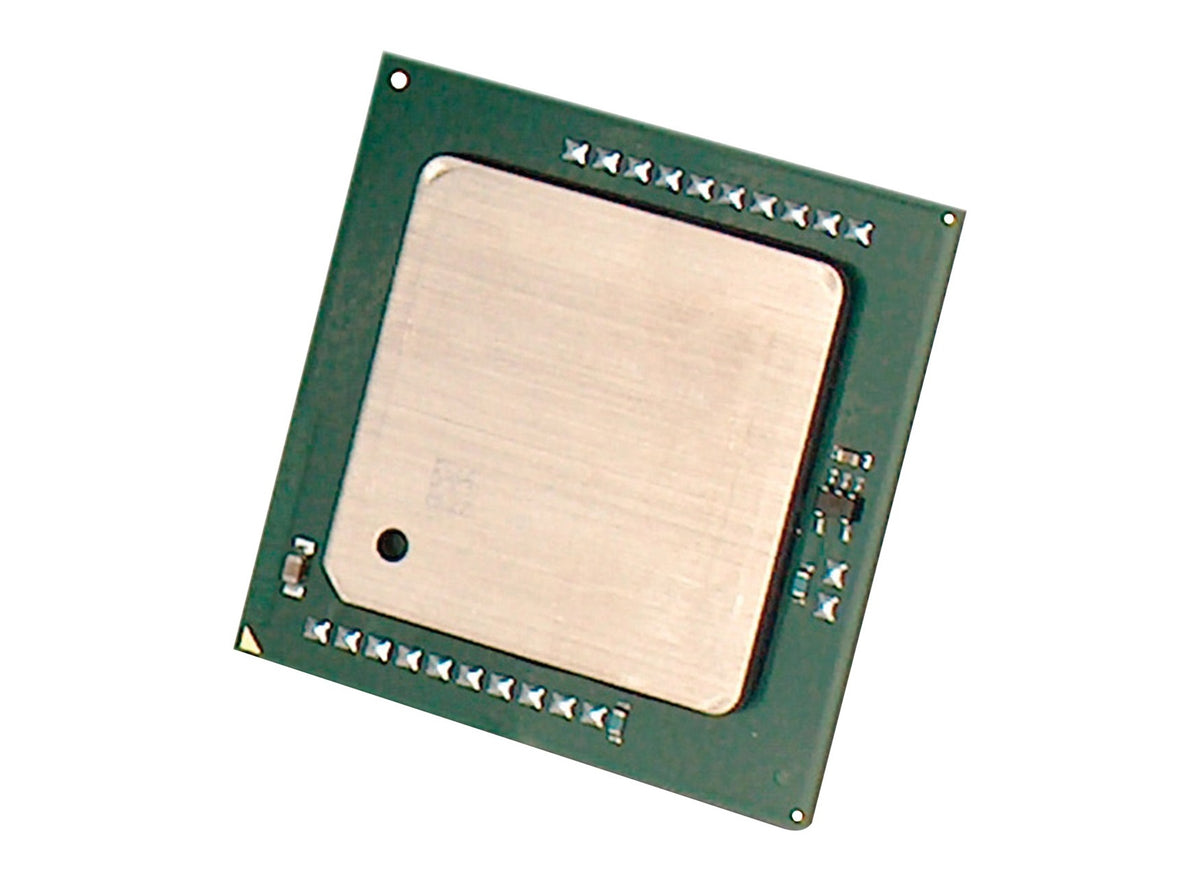

HP Xeon E5-1603 v4 2.8 10M 2133 4C processor 2.8 GHz 10 MB L3 Tray
Product overview & specifications
Intel Xeon Processor E5-1603 v4 (10M Cache, 2.80 GHz)
Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.
| Processor | |
|---|---|
| Processor base frequency | 2.8 GHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Thermal Design Power (TDP) | 140 W |
| Processor cache | 10 MB |
| Processor model | E5-1603V4 |
| Processor threads | 8 |
| System bus rate | 0 GT/s |
| Processor operating modes | 64-bit |
| Number of QPI links | 0 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® E5 v4 |
| Processor cores | 4 |
| Processor socket | LGA 2011-v3 |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor cache type | L3 |
| Package type | Tray |
| Memory | |
| Maximum internal memory supported by processor | 1.54 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 140 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 140 W |
| Processor series | Intel Xeon E5-1600 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | L3 |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 140 W |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Operational conditions | |
| Tcase | 69 °C |
| Packaging data | |
| Package type | Tray |
| Other features | |
| CPU configuration (max) | 1 |
