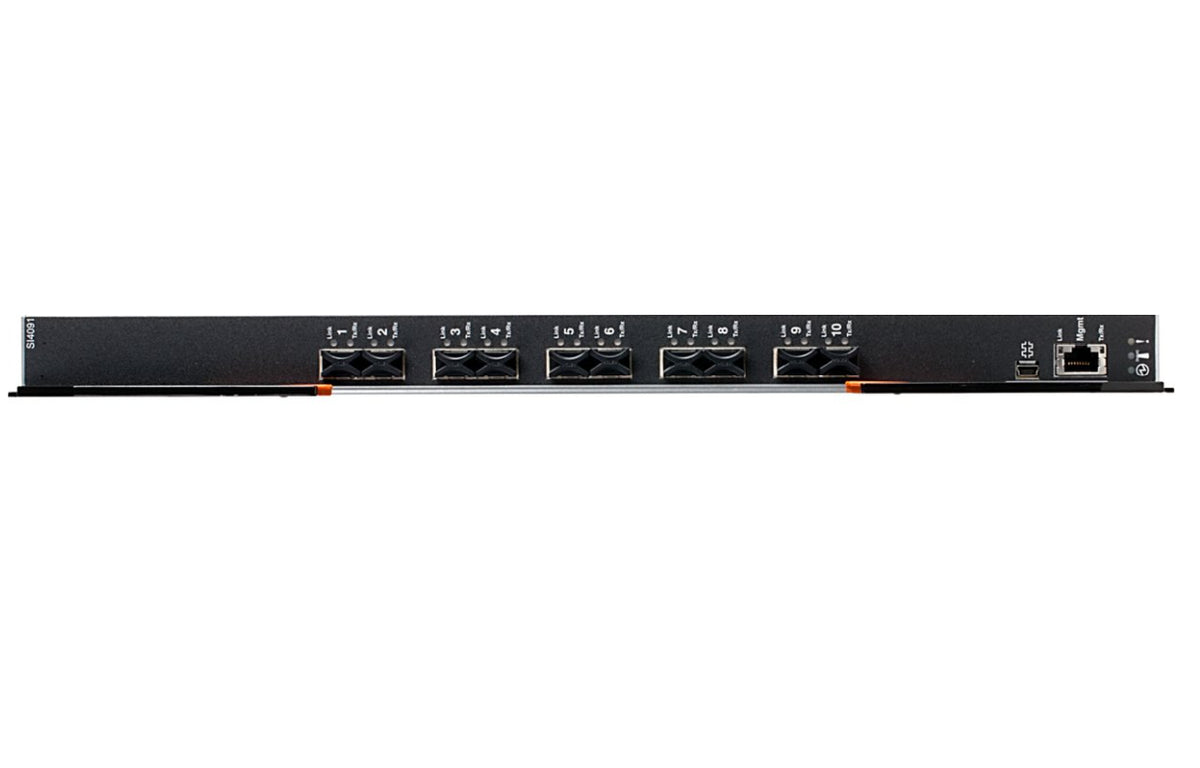

Lenovo 00FE327 network card Fiber 10000 Mbit/s
Product overview & specifications
Flex System SI4091 10Gb System Interconnect Module
The Lenovo® Flex System SI4091 10Gb System Interconnect Module enables simplified, low-cost integration of Flex System™ into your networking infrastructure. The SI4091 requires no management for most data center environments, which eliminates the need to configure each networking device or individual ports, thus reducing the number of management points. It provides a low latency, loop-free interface that does not rely upon spanning tree protocols, which removes one of the greatest deployment and management complexities of a traditional switch. The SI4091 offers administrators a simplified deployment experience while maintaining the performance of intra-chassis connectivity.
| Ports & interfaces | |
|---|---|
| Internal | No |
| Fiber ports quantity | 10 |
| Fiber optic connector | SFP, SFP+ |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Fiber |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
| Product colour | Black |
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A China GB 9254-1998 Turkey Communiqué 2004/9; Communiqué 2004/22 Saudi Arabia EMC.CVG, 28 October 2002 |
| Internal | No |
| Component for | Server |
| Weight & dimensions | |
| Width | 401 mm |
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
| Package width | 508 mm |
| Package depth | 424 mm |
| Package height | 114 mm |
| Package weight | 4.1 kg |
| Packaging data | |
| Package width | 508 mm |
| Package depth | 424 mm |
| Package height | 114 mm |
| Package weight | 4.1 kg |
| Certificates | |
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A China GB 9254-1998 Turkey Communiqué 2004/9; Communiqué 2004/22 Saudi Arabia EMC.CVG, 28 October 2002 |
