Motorola DS7708 Fixed bar code reader 1D/2D LED Black
Motorola DS7708 Fixed bar code reader 1D/2D LED Black

Motorola DS7708 Fixed bar code reader 1D/2D LED Black

BrandZebra
SKU / Part numberDS7708-SR4U2100ZCW
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
DS7708, USB-kit, 1D/2D, 660nm, 254 cm/sec, Roll 0-360°, Skew ± 70°, Pitch ± 70°, IP52, 500g, Black
EASY TO DEPLOY, HIGH PERFORMANCE, ON-COUNTER SCANNING
When it comes to on-counter scanning, the DS7708 offers a feature set that puts it at the top of its class for performance, ease of deployment and total cost of ownership. No matter what barcodes appear at your POS, the DS7708 can scan them all; 1D, 2D, printed and electronic.

With its compact design, the DS7708 can easily be installed in even the most space constrained checkout lanes. And extraordinary durability minimizes costs and protects uptime, maximizing device lifecycle and your return on investment.

LARGEST FIELD OF VIEW AND OMNI-DIRECTIONAL SCANNING FOR SCANNING SIMPLICITY
A field of view that is over 50 percent larger than competitive 2D imagers enables easy capture of barcodes, regardless of where they are located on an item. Scanning is truly second nature. No need to orient an item to capture the barcode.

IMAGE CAPTURE SUPPORT EXPANDS FUNCTIONALITY AND INCREASES VALUE
The DS7708 offers additional data capture features to further streamline your business processes. Workers can take a picture of a check, driver’s license or I.D. card to meet store requirements or industry regulations in a split second.

PRZM INTELLIGENT IMAGING TECHNOLOGY FOR NEXT GENERATION SCANNING PERFORMANCE
Resets the bar for 2D imaging by improving decode performance and dramatically improving the user experience, user productivity, throughput and customer wait times.

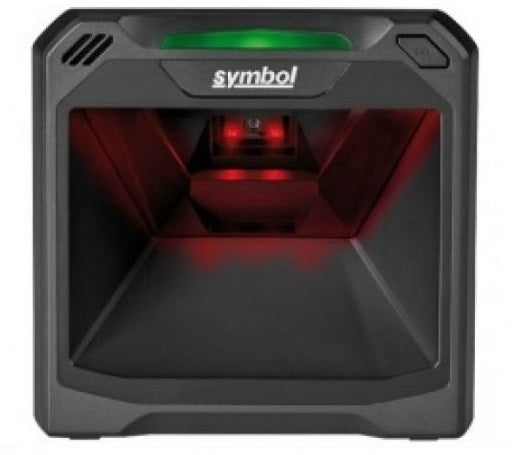

Zebra DS7708 Vertical Slot Scanner

SUPERIOR OUT-OF-BOX EXPERIENCE
Smart auto-host detect cables automatically determine which interface is attached, eliminating the need to scan numerous configuration barcodes. Over 90 international keyboards are supported, enabling easy setup, all around the world.
Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Motion tolerance (cm/s) 254
Yaw reading angle -70 - 70°
Wavelength 660 nm
Tilt reading angle 0 - 360°
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -70 - 70°
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Performance
International Protection (IP) code IP52
Product colour Black
Design
Type Fixed bar code reader
International Protection (IP) code IP52
Product colour Black
Power
Power source type USB
Input voltage 12 V
Weight & dimensions
Width 149 mm
Depth 97 mm
Height 143 mm
Weight 500 g
Technical details
Type Fixed bar code reader
International Protection (IP) code IP52
Product colour Black
Harmonized System (HS) code 84716070
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 85%
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
