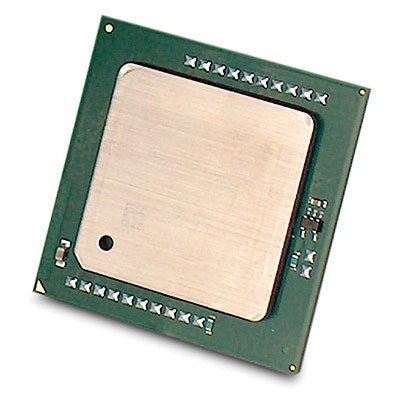

HP Intel Xeon E5520 processor 2.26 GHz 8 MB Smart Cache
Product overview & specifications
Intel Xeon E5520, 8M Cache, 2.26 GHz, 5.86 GT/s QPI
Options, accessories, services and support for all your HP and Compaq products.
| Processor | |
|---|---|
| Processor base frequency | 2.26 GHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Thermal Design Power (TDP) | 80 W |
| Processor cache | 8 MB |
| Processor model | E5520 |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.75 - 1.35 V |
| Processor boost frequency | 2.53 GHz |
| Stepping | D0 |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 45 nm |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor series | Intel Xeon 5000 Series |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory channels | Triple-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Technical details | |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 80 W |
| Processor series | Intel Xeon 5000 Series |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor cache type | Smart Cache |
| Features | |
| Thermal Design Power (TDP) | 80 W |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Market segment | Server |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Operational conditions | |
| Tcase | 72 °C |
| Other features | |
| CPU configuration (max) | 2 |
| Compatibility | Proliant |
