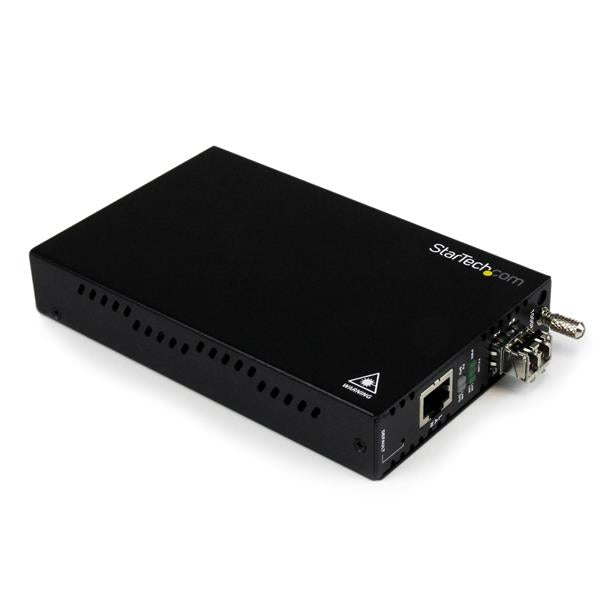

StarTech.com OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant
Product overview & specifications
StarTech.com Multimode (MM) LC Fiber Media Converter with SFP - OAM Management - 802.3ah Compliant - Gigabit Ethernet - 550m - 850nm (ET91000LCOAM)
Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities
The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the ETCHS2U" text="20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Adjust settings and monitor the link remotely with OAM management capabilities
- Operates as standalone device or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
| Network | |
|---|---|
| Converter input interface | 1000Base-LX, 1000Base-SX, 1000Base-T, 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
| Features | |
| Housing material | Steel |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Input current | 0.36 A |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 87 mm |
| Depth | 163 mm |
| Weight | 411 g |
| Height | 23 mm |
| Package depth | 206 mm |
| Package width | 136 mm |
| Package height | 92 mm |
| Package weight | 789 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package depth | 206 mm |
| Package width | 136 mm |
| Package height | 92 mm |
| Package weight | 789 g |
| Technical details | |
| Housing material | Steel |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | LAN, Link, Power |
| Design | |
| Housing material | Steel |
| LED indicators | LAN, Link, Power |
| Product colour | Black |
| Certification | FCC, CE |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
