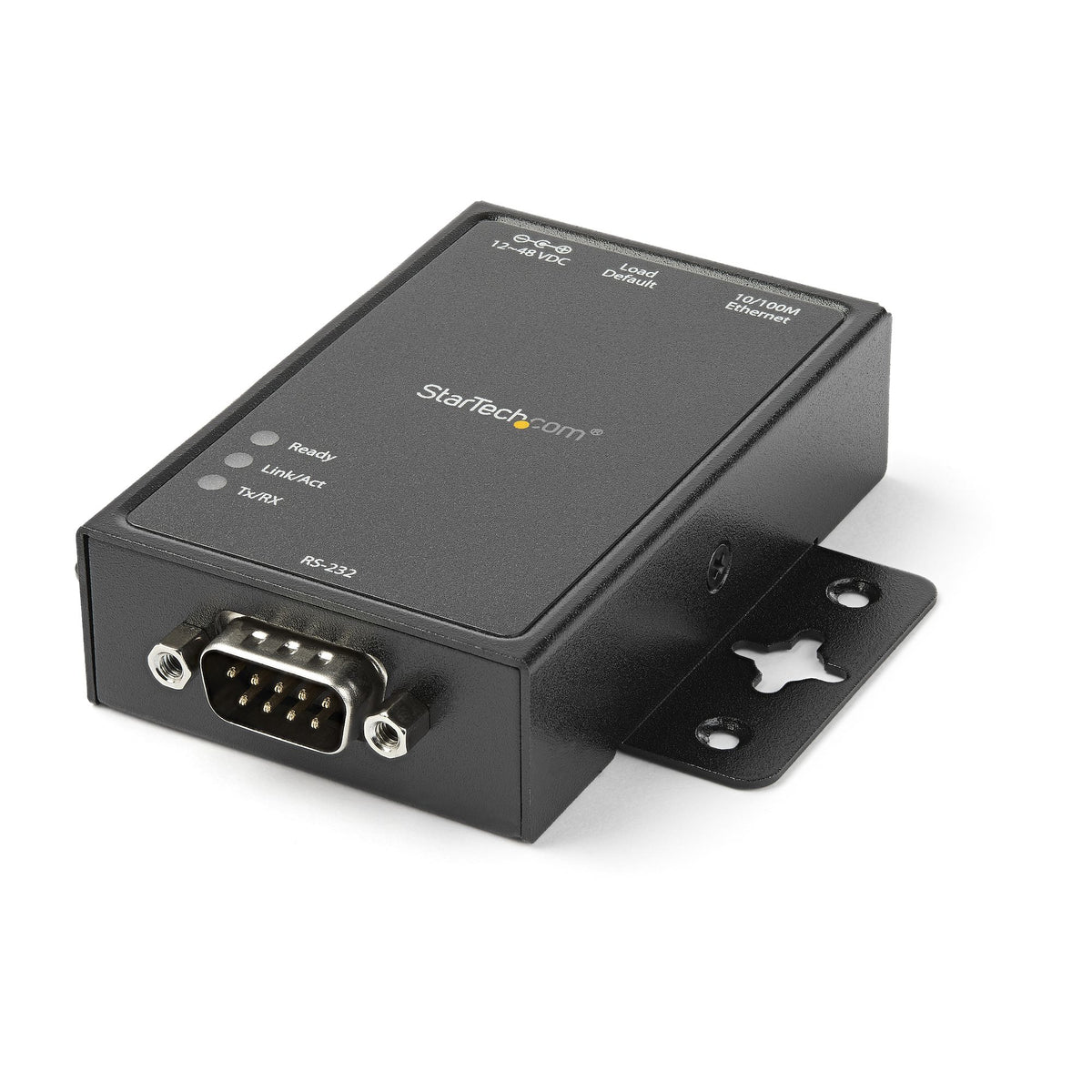

StarTech.com 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail and Surface Mountable - Aluminum
Product overview & specifications
StarTech.com 1 Port RS232 to Ethernet IP Converter / Device Server - Aluminum - Serial over IP Device Server - Serial to IP Converter (NETRS2321P)
Connect to, configure and remotely manage an RS-232 serial device over an IP network
This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).
For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software (NETRSAPP). When coupled with the NETRS2321P, this handy application for iOS, and Android lets you build a custom serial control interface that's tailored to your specific application.
Access your serial devices remotely
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 230.4Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
Flexible setup and operation
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
Aluminum housing provides durability you can count on
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
Download the application software and manage your serial devices with ease
Download the StarTech.com serial control software from the Apple App Store, and the Google Play™ Store.
The NETRS2321P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This 1-port serial device server is an effective serial-over-IP solution that lets you connect to, configure, and remotely manage an RS232 serial device over a LAN (Local Area Network).
For more control options, the device server is compatible with the free, StarTech.com Serial Device Application Software (NETRSAPP). When coupled with the NETRS2321P, this handy application for iOS, and Android lets you build a custom serial control interface that's tailored to your specific application.
Access your serial devices remotely
The versatile device server is designed to function seamlessly with your integrated serial ports, while offering baud rates faster than many other device servers (up to 230.4Kbps).The device server provides the tools you need to communicate with remote RS-232 devices as if they were directly connected.
Flexible setup and operation
It offers versatile browser-based or Virtual COM port software configuration for customizing the device to suit your application. Plus, the software communicates directly with the device server, so it can be used in Virtual Machine (VM) environments if you have multiple VMs sharing the same set of hardware.
The device server also offers remote Telnet configuration and support for IP, HTTP, ICMP, DHCP, ARP, TCP and UDP protocols.
Aluminum housing provides durability you can count on
With a sturdy aluminum housing and DIN rail or surface mounting brackets, the serial device server provides a durable remote serial interface for industrial automation, security, Point of Sale and many other applications.
Download the application software and manage your serial devices with ease
Download the StarTech.com serial control software from the Apple App Store, and the Google Play™ Store.
The NETRS2321P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Technical details | |
|---|---|
| Stop bits | 1, 1.5, 2 |
| Flow Control type | No, RTS/CTS |
| Data bits | 5, 6, 7, 8 |
| Package width | 146 mm |
| Package length | 17.6 cm |
| Package height | 62 mm |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| RS-232 signals | Rx, Tx |
| Networking standards | IEEE 802.3u |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | CE, FCC, TAA, REACH |
| Baud rate | 460.8 Kbit/s |
| Parity bit | Even, No, Odd |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Weight & dimensions | |
| Package weight | 416 g |
| Package width | 146 mm |
| Package length | 17.6 cm |
| Package height | 62 mm |
| Weight | 92 g |
| Dimensions (WxDxH) | 53 x 86 x 23 mm |
| Package depth | 176 mm |
| Power | |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Power consumption | 360 mA |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Protocols | |
| Supported network protocols | DHCP, TCP/IP, UDP, HTTP, ICMP, ARP, Telnet |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Indication | |
| LED indicators | Activity, Link, Ready |
| Link/Act LED | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Packaging content | |
| User guide | Yes |
| AC adapter included | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Logistics data | |
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 397 mm |
| Master (outer) case length | 483 mm |
| Master (outer) case height | 307 mm |
