Lindy 50m USB 2.0 Cat.6 Extender
Product overview & specifications
50m USB 2.0 Cat.6 Extender

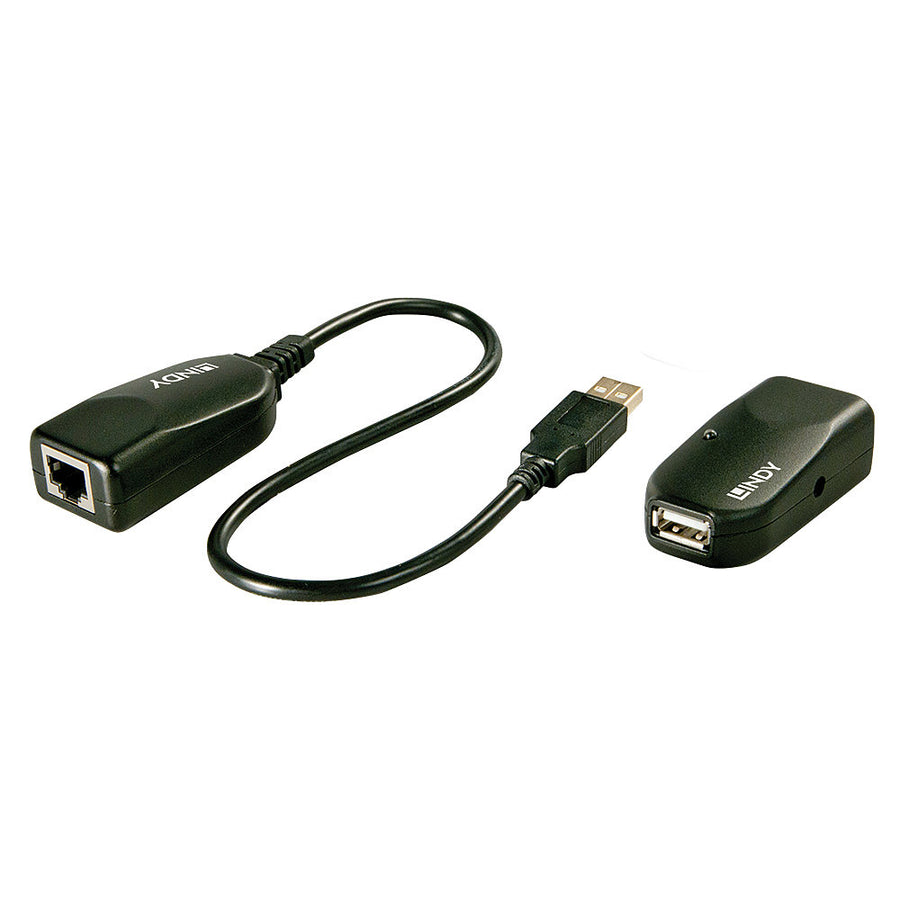

The Lindy 50m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 50m.
It consists of a local unit which connects to the computer and a remote unit that connects to the device.
Standard, low cost Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units.For best performance and compatibility, we recommend the use of solid core patched cables.
The included power supply ensures secure and uninterrupted electricity supplies.
It consists of a local unit which connects to the computer and a remote unit that connects to the device.
Standard, low cost Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units.For best performance and compatibility, we recommend the use of solid core patched cables.
The included power supply ensures secure and uninterrupted electricity supplies.
| Performance | |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Chipset | LG-8311 |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
| Housing material | Plastic |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Product colour | Black |
| Power | |
| External power adapter | Yes |
| Output voltage | 5 V |
| Output current | 2.1 A |
| Included power plug types | AU, EU, UK, US |
| Power note | 3.5/1.35mm DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 30 mm |
| Depth | 60 mm |
| Height | 15 mm |
| Weight | 64 g |
| Cable length | 7.5 m |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package volume | 235 cm³ |
| Package width | 140 mm |
| Package depth | 130 mm |
| Package height | 85 mm |
| Technical details | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Chipset | LG-8311 |
| Harmonized System (HS) code | 85176990 |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
