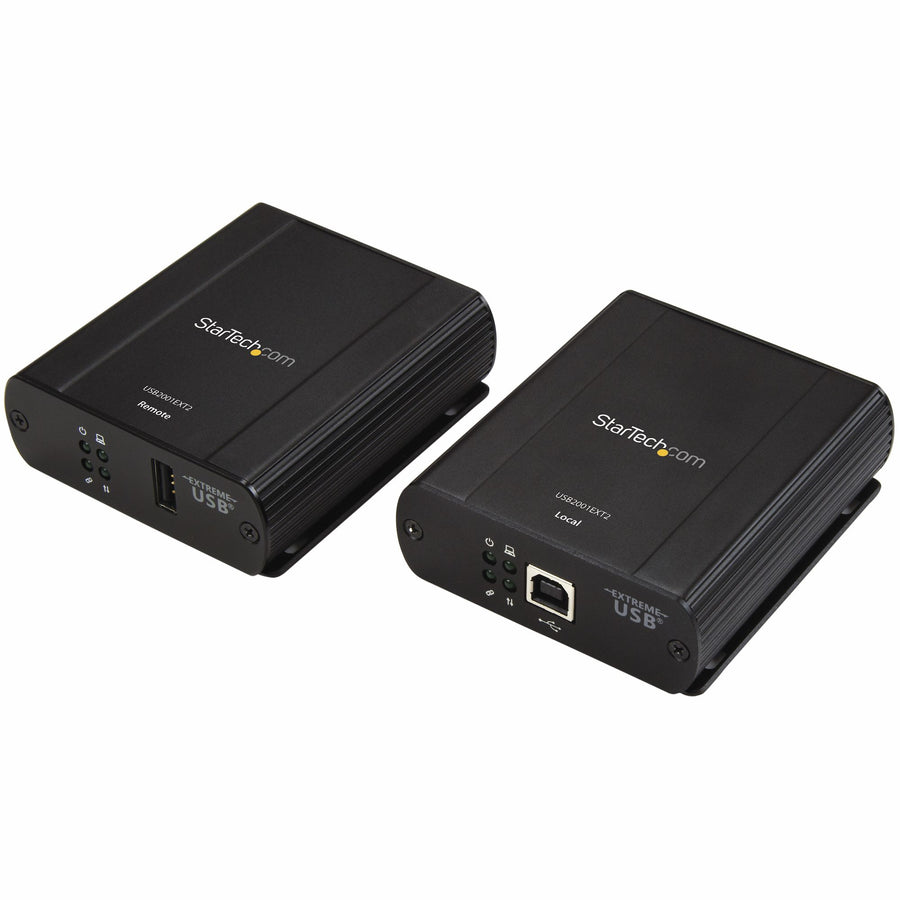

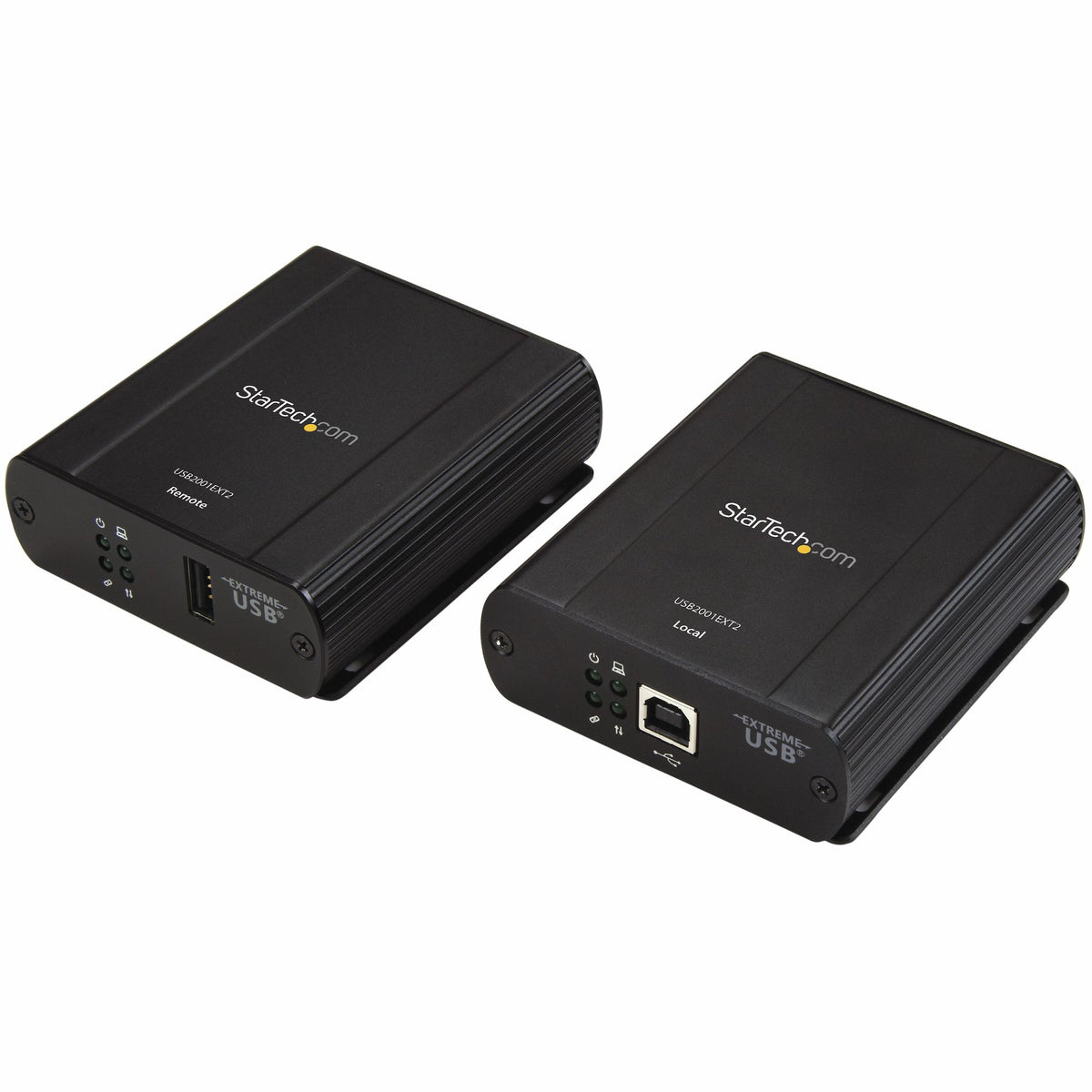

StarTech.com Newer version available USB2001EXT2NA: 1-Port USB 2.0 Ethernet Extender - Up to 330ft(100m) Extension Over Cat5/Cat6 -Industrial USB Over UTP Repeater
Product overview & specifications
StarTech.com Newer version available USB2001EXT2NA: 1-Port USB 2.0 Ethernet Extender - Up to 330ft(100m) Extension Over Cat5/Cat6 -Industrial USB Over UTP Repeater (USB2001EXT2)
Extend one USB 2.0 connection up to 330ft away from the computer over Cat5 or Cat6 cableThe USB2001EXT2 USB over Cat5/Cat6 Extender lets you extend a USB 2.0 connection over distances of up to 100-meters (330-feet), over standard Cat5 or Cat6 ethernet cabling.Backward compatible with USB 1.x devices, the extender enables almost any kind of USB device to be placed at remote locations away from the host computer system.With data bandwidth of up to 480 Mbps and no software installation required, the USB extender offers a fast, easy, and versatile solution for business or industrial applications with durable metal housing, an included surface-mounting bracket kit, and simple plug-and-play installation.Plus, the extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| LED indicators | Activity, Link |
| Housing material | Aluminium |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Product colour | Black |
| Certification | CE, FCC |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Weight & dimensions | |
| Package width | 250 mm |
| Package depth | 200 mm |
| Package height | 75 mm |
| Package weight | 1.2 kg |
| Width | 76 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 315 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Colour | |
| Product colour | Black |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | USB |
| Power | |
| Power consumption (typical) | 18 W |
| Input voltage | 110 - 240 V |
| Output voltage | 5 V |
| Output current | 3 A |
| Power plug type | Type C |
| Input current | 0.6 A |
| Logistics data | |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 508 mm |
| Master (outer) case height | 400 mm |
| Products per master (outer) case | 24 pc(s) |
| Harmonized System (HS) code | 84733020 |
